Sperry Marine VISIONMASTER FT ECDIS-E - Steering Mode & Route Info

ECDIS-E User Guide Conning Information Display
65934012 12-3
Steering Mode & Route Info

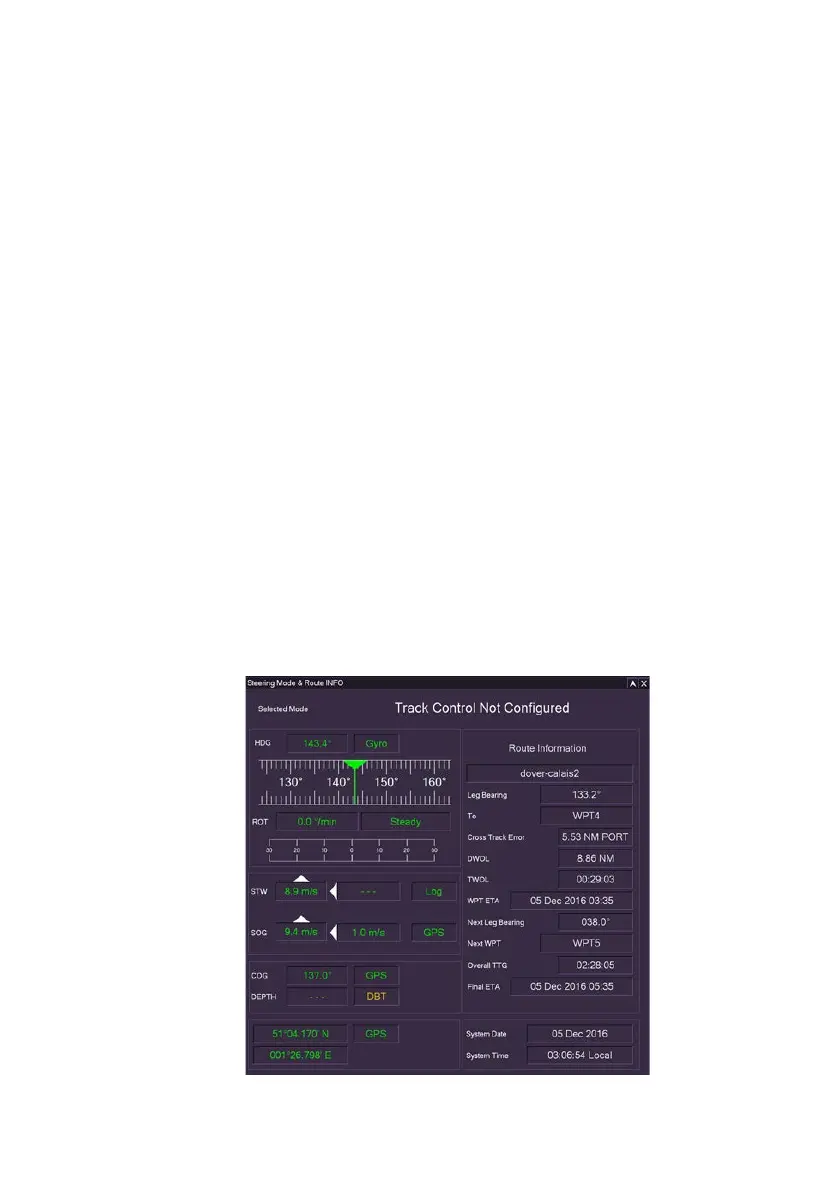

The Steering Mode and Route Information window is divided into two
columns. The left side column shows the data values compiled from the
following element groups
 True heading data, the current bearing value as shown in the HDG
data display (see Sensor Data Display) and the data source of the
value e.g. Gyro. A graphical display below the HDG also shows the
bearing value.
 Rate of Turn, the current rate of turn in degrees per minute as shown
in the ROT folder, (see Rate of Turn Values). A graphical display
below the ROT also shows the degrees per minute value.
 Course and Speed data, including STW, SOG, COG values as shown
in their respective folders (see Sensor Data Display) and the data
source of the value e.g. GPS.
 Depth value, as shown in Depth folder (see Depth Source Values) and
the data source of the value
 LAT/LONG data
On the right side of the window is the following data:
 Route Information - information on the currently monitored route. If
no route is being monitored the data fields are shown with dashes.
 System date and time, either UTC or local time, as shown in the
Current Date and Time field.
