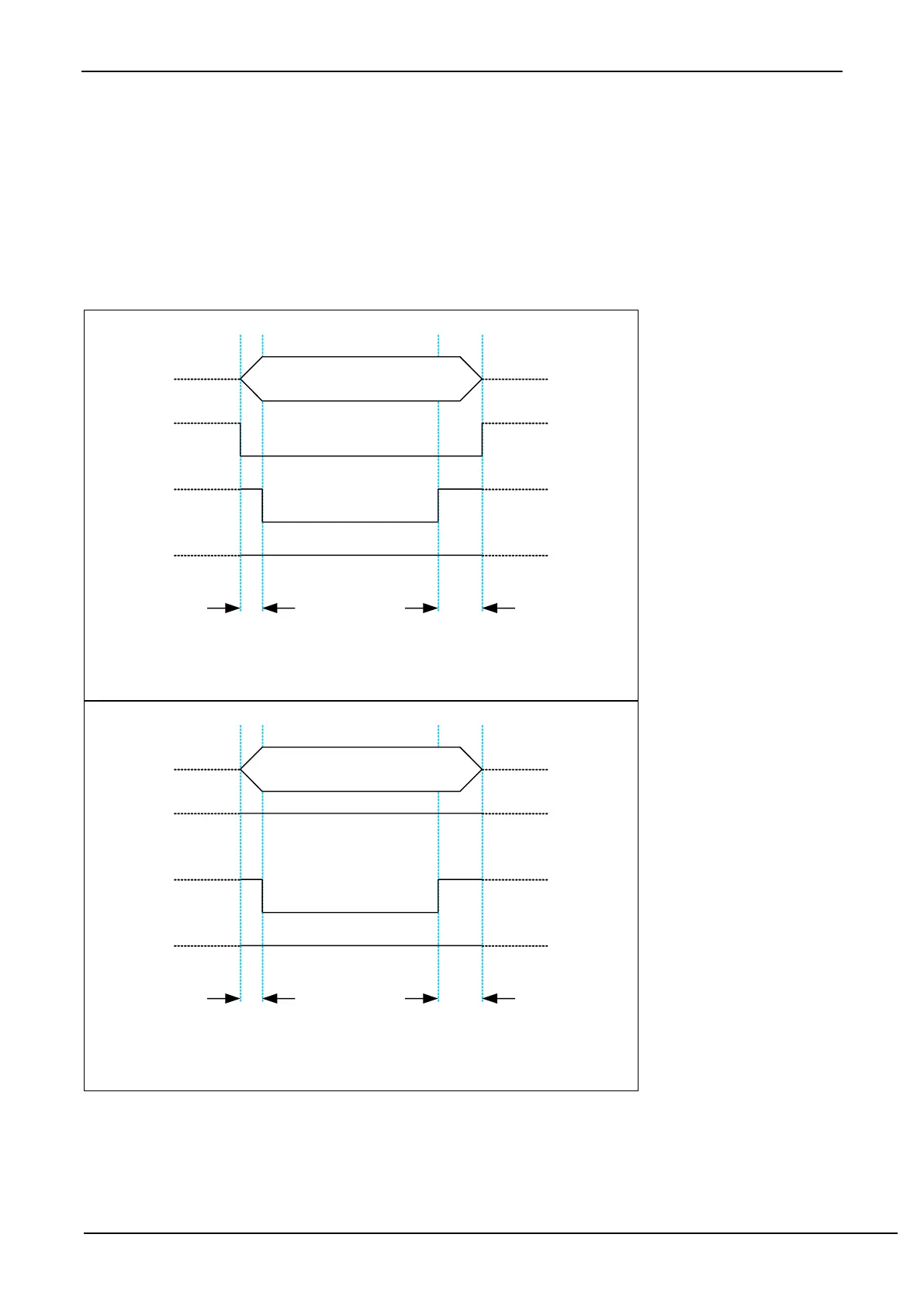

22.3 LCM interface timing diagram

Note: T

ready

＝1 system clock

setup

＝ (SETUPT +1) system clocks

hold

＝ (HOLDT+1) system clocks

22.3.1 I8080 mode

Data DAT

Preparation

time T

ready

Holding time T

hold

Setup time T

setup

Send command (CMD=100B)

‘0’

‘1’

‘0’

‘1’

‘0’

‘1’

‘0’

‘1’

Data DAT

Preparation

time T

ready

Holding time T

hold

Setup time T

setup

Send data (CMD=101B)

‘0’

‘1’

‘0’

‘1’

‘0’

‘1’

‘0’

‘1’
