STC8A8K64D4 Series Manual

- 694 -

Appendix D STC-USB Driver Installation

Instructions

Installation Instructions in Windows XP

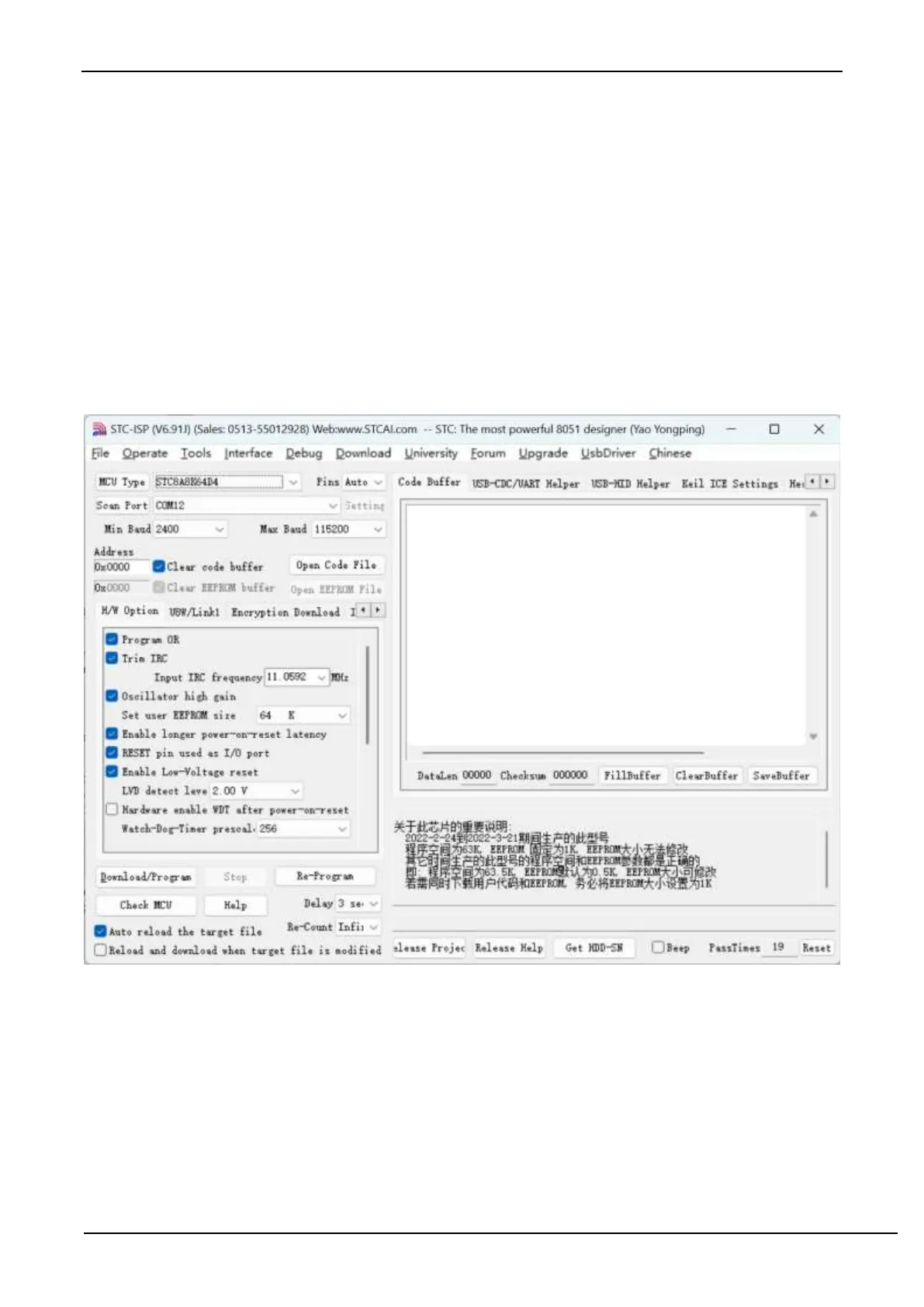

Open the STC-ISP download software of V6.79 (or later). The download software will copy the driver files to the

relevant system directory automatically.
