STC8A8K64D4 Series Manual

- 730 -

Installation Instructions in Windows 8.1 (64-bit)

Windows 8.1 has different method for entering the advanced boot menu with respect to Windows 8, which is

specifically explained here.

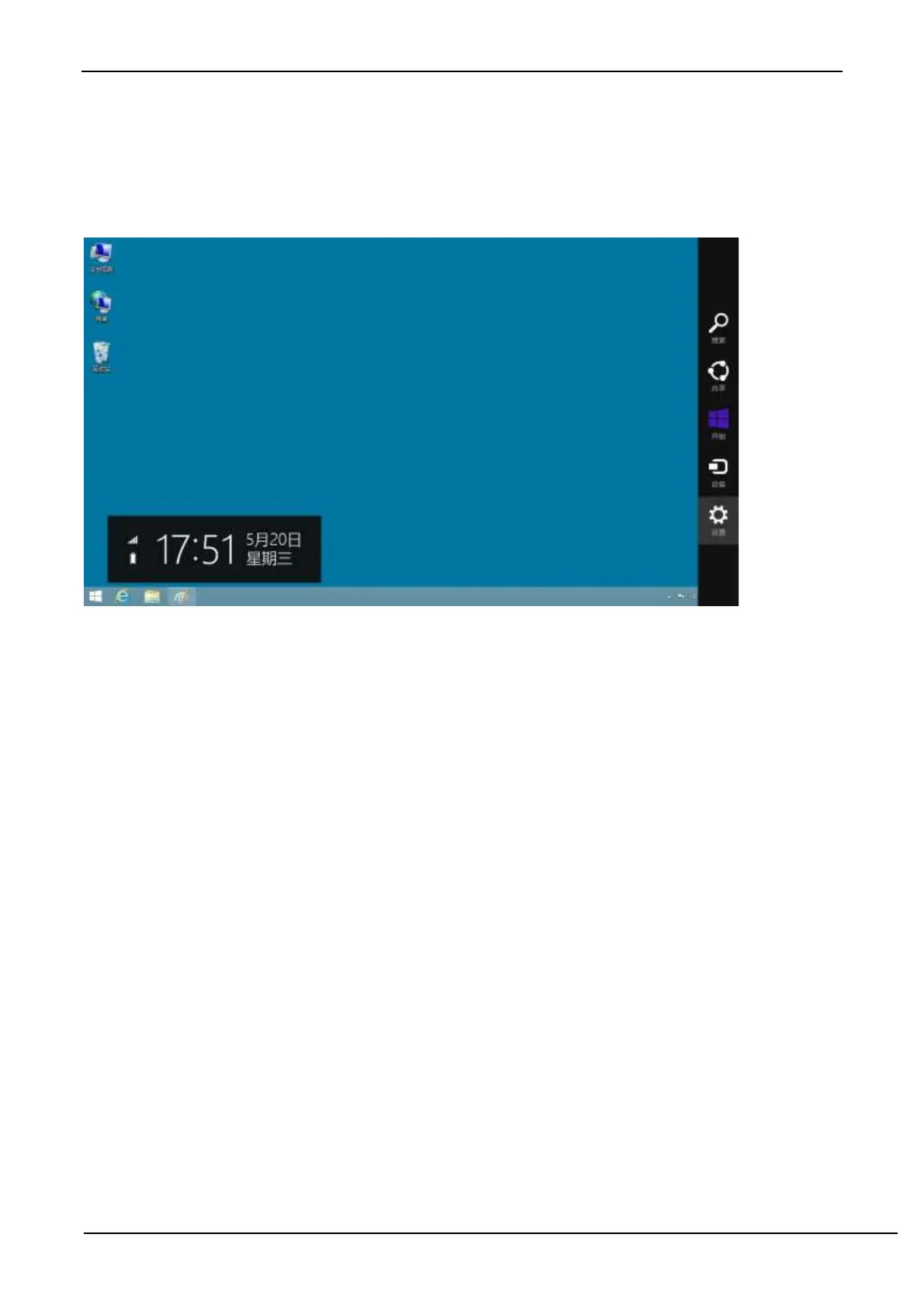

Firstly, move the mouse to the lower right corner of the screen and select the "Settings" button.
