STC8A8K64D4 Series Manual

- 749 -

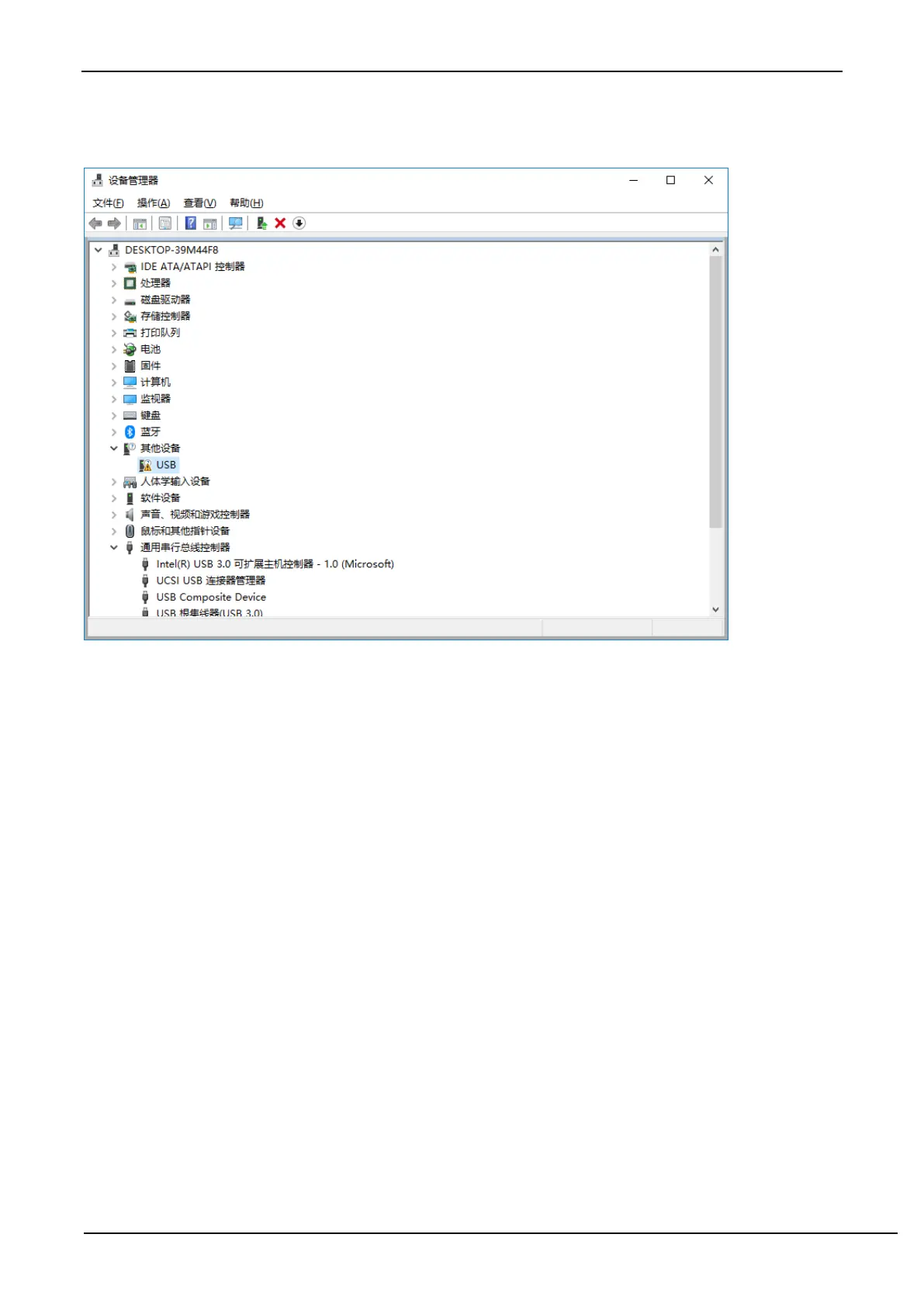

After the computer is started, connect the prepared chip to the computer with a USB cable and open the "Device

Manager". Now, the driver has not yet been installed, so it will appear as an unknown device with an exclamation point

in the Device Manager.
