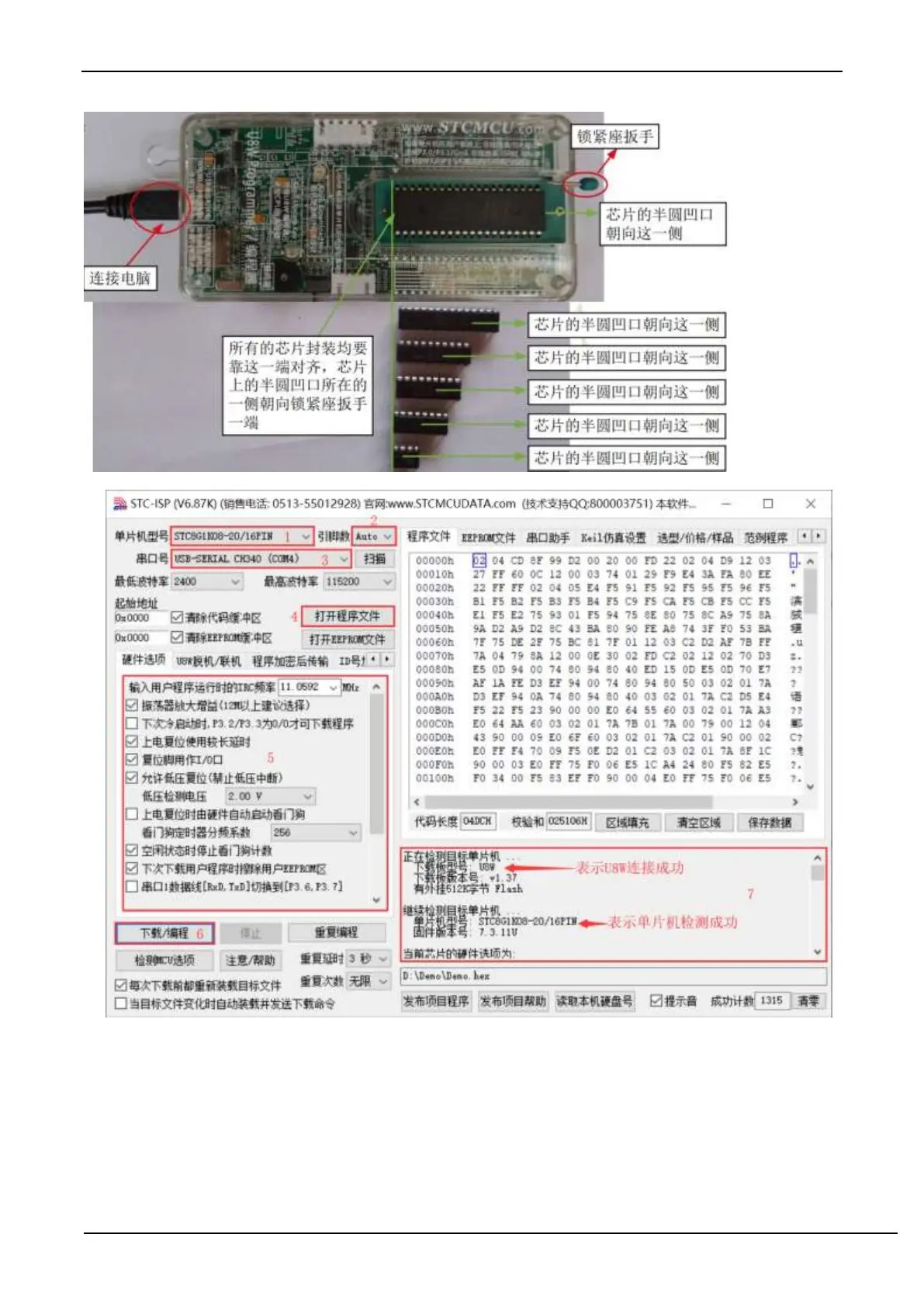

Then use STC-ISP to download the software to download the program, the steps are as follows:
1 Select the MCU model;
2 Select the number of pins. When the chip is directly installed on the U8W to download, be sure to select the correct
number of pins, otherwise the download will fail;
3 Select the serial port number corresponding to U8W;
4 Open the target file (HEX format or BIN format);
5 Set the hardware options;
6 Click the "Download/Program" button to start burning;
7The step information of the programming process is displayed, and the message "Operation successful!" is displayed
when the programming is completed.
