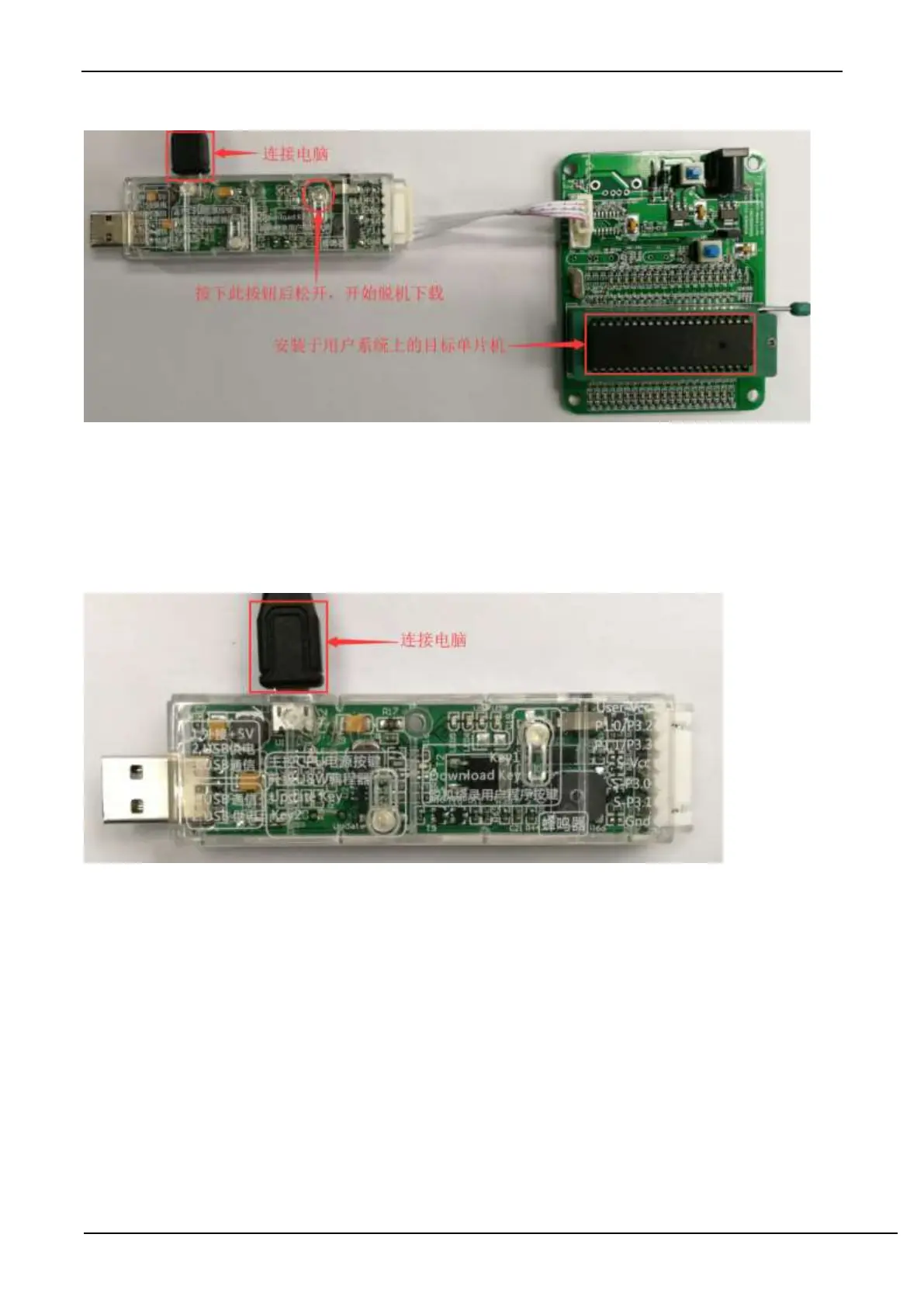

as shown in the figure below, and press the button shown in the figure and release it to start offline downloading :
During the downloading process, the 4 LEDs on the U8W-Mini download tool will be displayed in marquee mode.
After the download is complete, if the download is successful, the 4 LEDs will be on and off at the same time; if the
download fails, all the 4 LEDs will be off.
The target chip is connected to the U8W-Mini by the user system lead, and the U8W-Mini is powered by the
user system for offline download.
(1) Firstly, use the USB cable provided by STC to connect the U8W-Mini download board to the computer, as shown
below:
(2) Set up in the STC-ISP download software according to the steps shown in the figure below:
