STC micro STC8A8K64D4 Series

To Next Page

To Previous Page

STC8A8K64D4 Series Manual

- 815 -

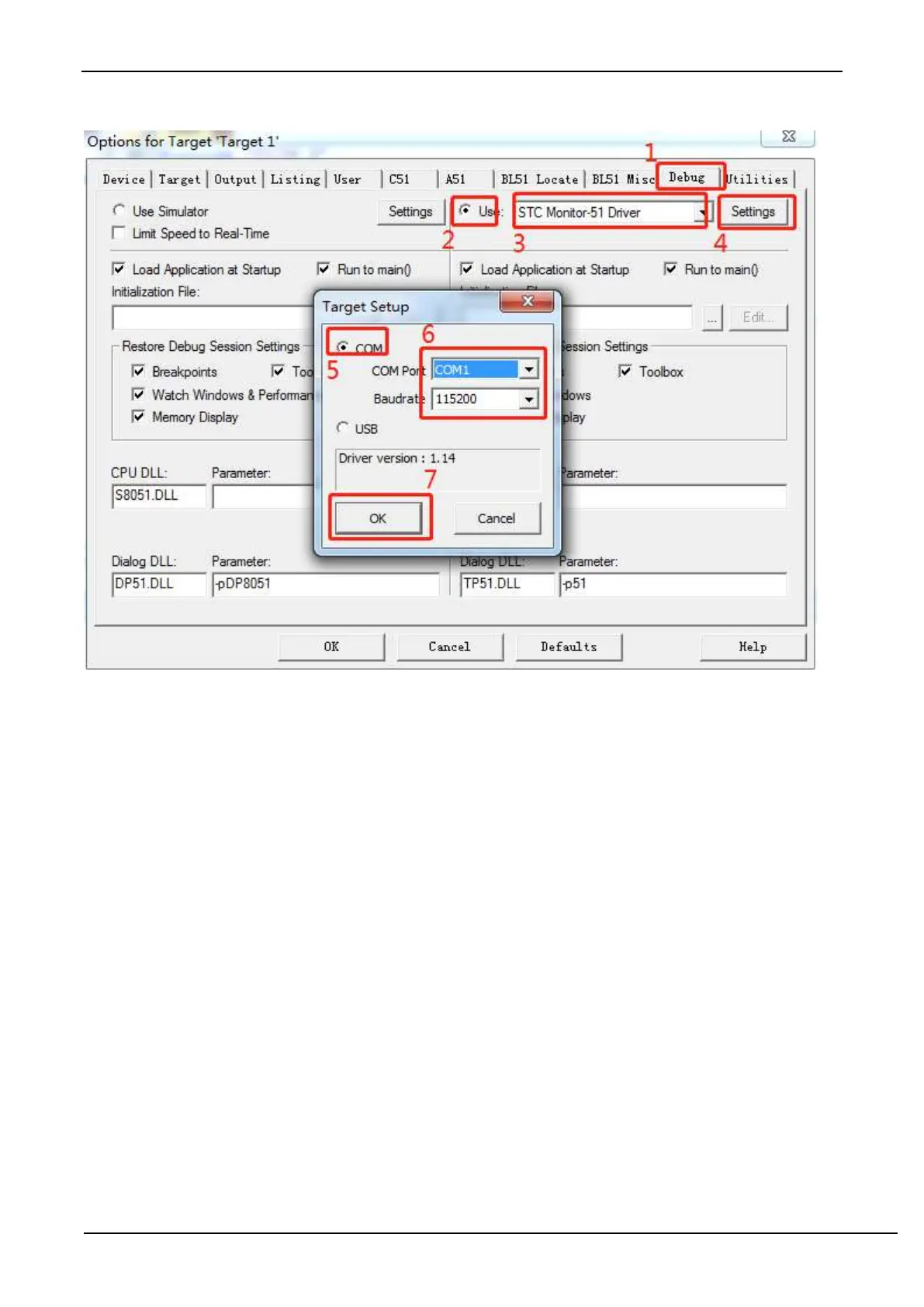

In the project options, follow the steps shown in the figure below to set the serial port emulation.

Note: Please select the serial port according to the actual connection, and the baud rate is generally 115200.
