H.5.2 USB emulation settings in Keil software

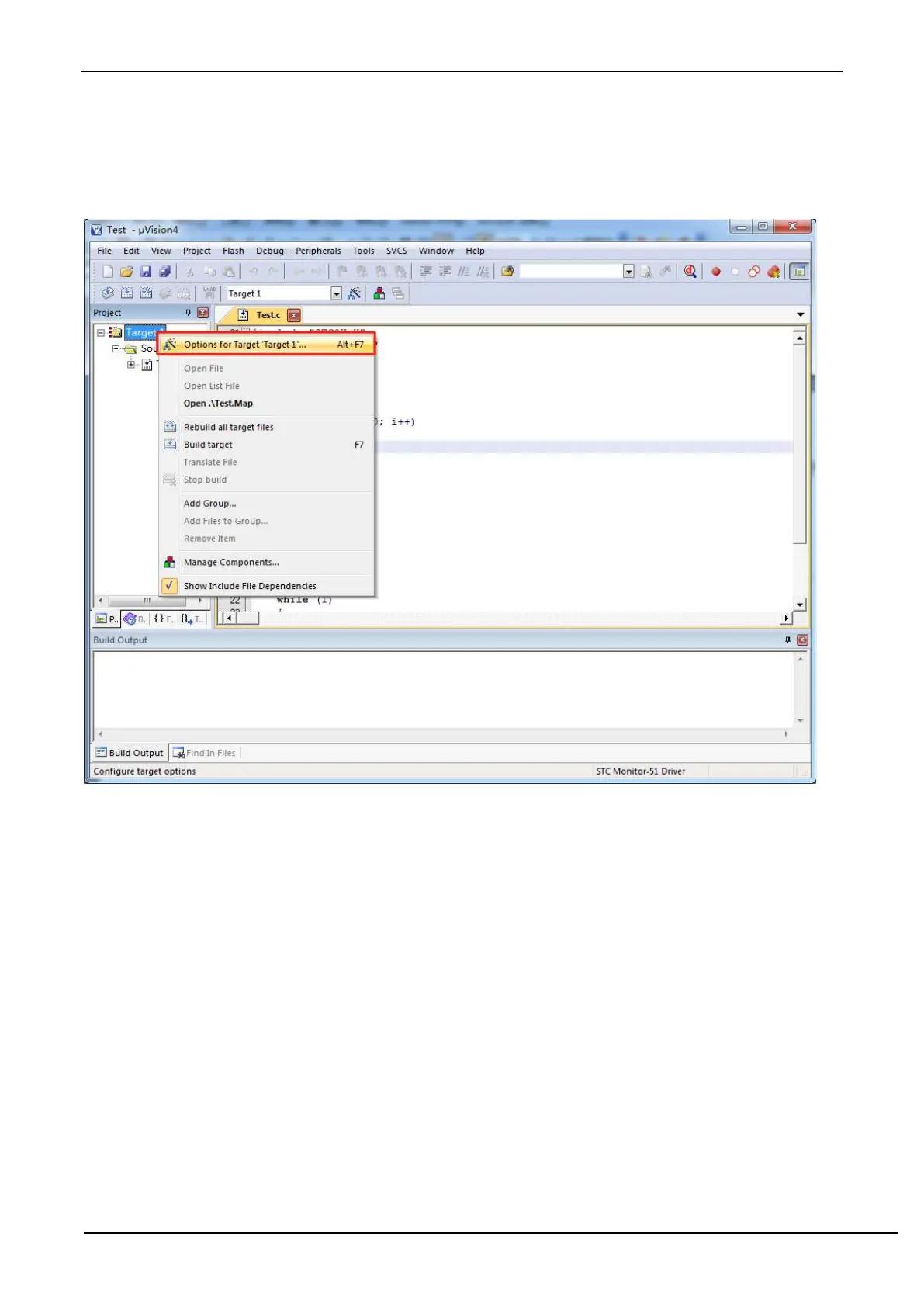

Open the project file in Keil software, and click "Options for ..." in the right-click menu as shown in the figure

below.
