STC8A8K64D4 Series Manual

- 868 -

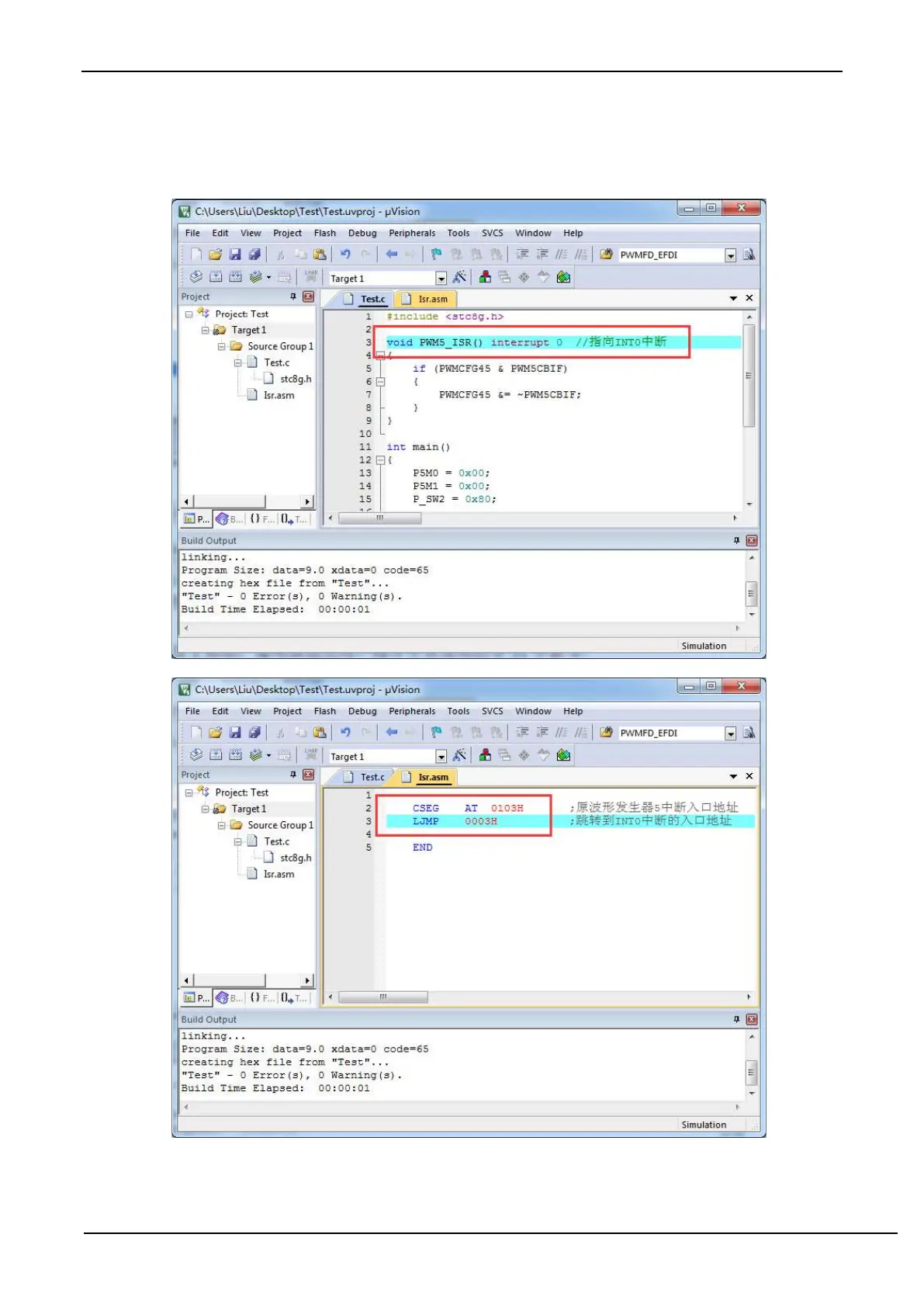

Method 2: Similar to method 1, borrow unused interrupt numbers from 0 to 31 in

user program.

For example, in the user's code, if the INT0 interrupt is not used, the above code can be modified similarly to method
