277
6 Maintenance of the knitting machine
6.2 Cleaning the knitting machine

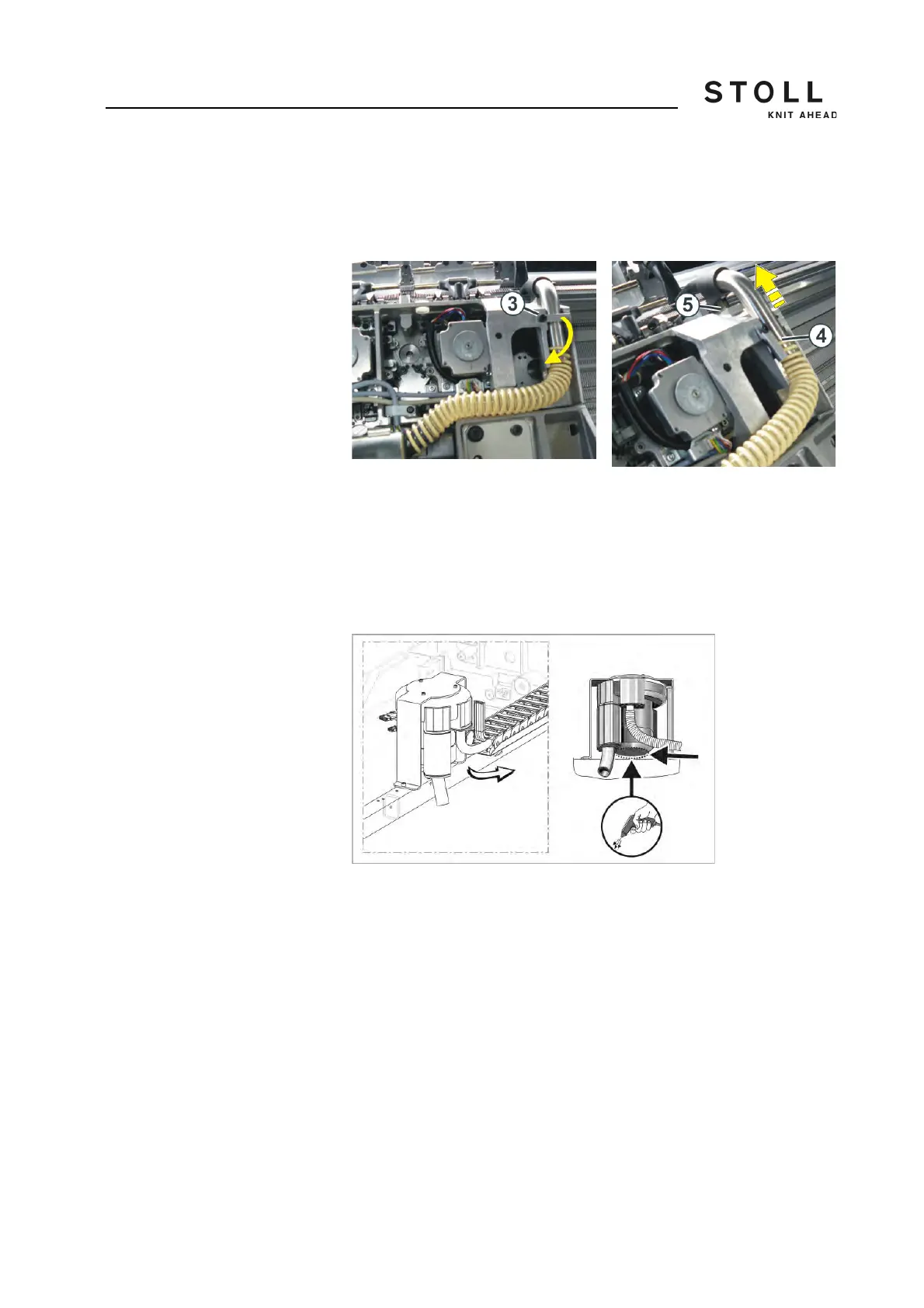

8. Loosen the screw (3) and swivel the retainer downwards.
9. Lift the suction tube somewhat at the lower end (4). Push the suction
tube upwards until the fixing clip (5) is pulled out of the carriage.
10. Separate the suction tube and the suction hose. Blow out the suction
tube with compressed air.
11. On assembly please ensure that the suction hose is pushed about 2 cm
over the suction tube.
12. Repeat this procedure on the rear carriage.
13. Clean motor cover.
Cleaning motor cover
