Stoll CMS ADF-3 - Replacing Gear Racks in the Step Motor

Repairing the knitting machine 7
Replacing parts 7.3
330
7.3.10 Replacing gear racks in the step motor
There are different models depending on the machine type and the gauge.
Type 1
Replacing gear racks:
1. Take off the step motor.

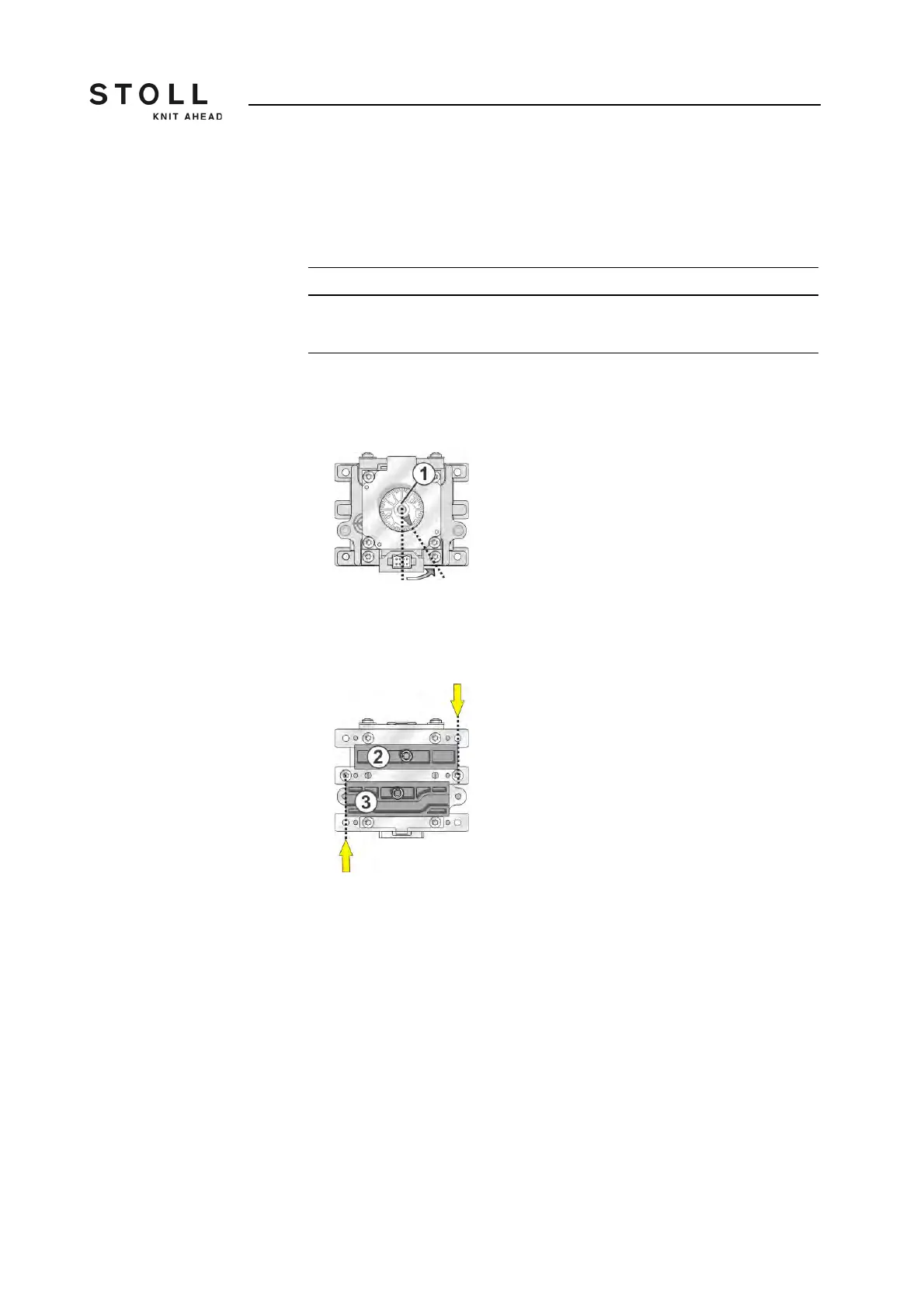

2. Rotate positioning disk (1) to the mounting position (5 o'clock).
3. Turn over the step motor and check the mounting position.
The adjustment is correct if
The upper gear rack (2) and the boring are aligned.
The lower gear rack (3) and the boring are aligned.
Valid for:
CMS 530, CMS 520, CMS 822, CMS 933, CMS ADF-3
E10 │ E12 │ E14 │ E16 │ E18 │ E6.2 │ E7.2 │ E8.2 │ E9.2
2 upper gear rack Control of the stitch tension
3 lower gear rack Control of the pressure parts for tuck and stitch
