329
7 Repairing the knitting machine
7.3 Replacing parts

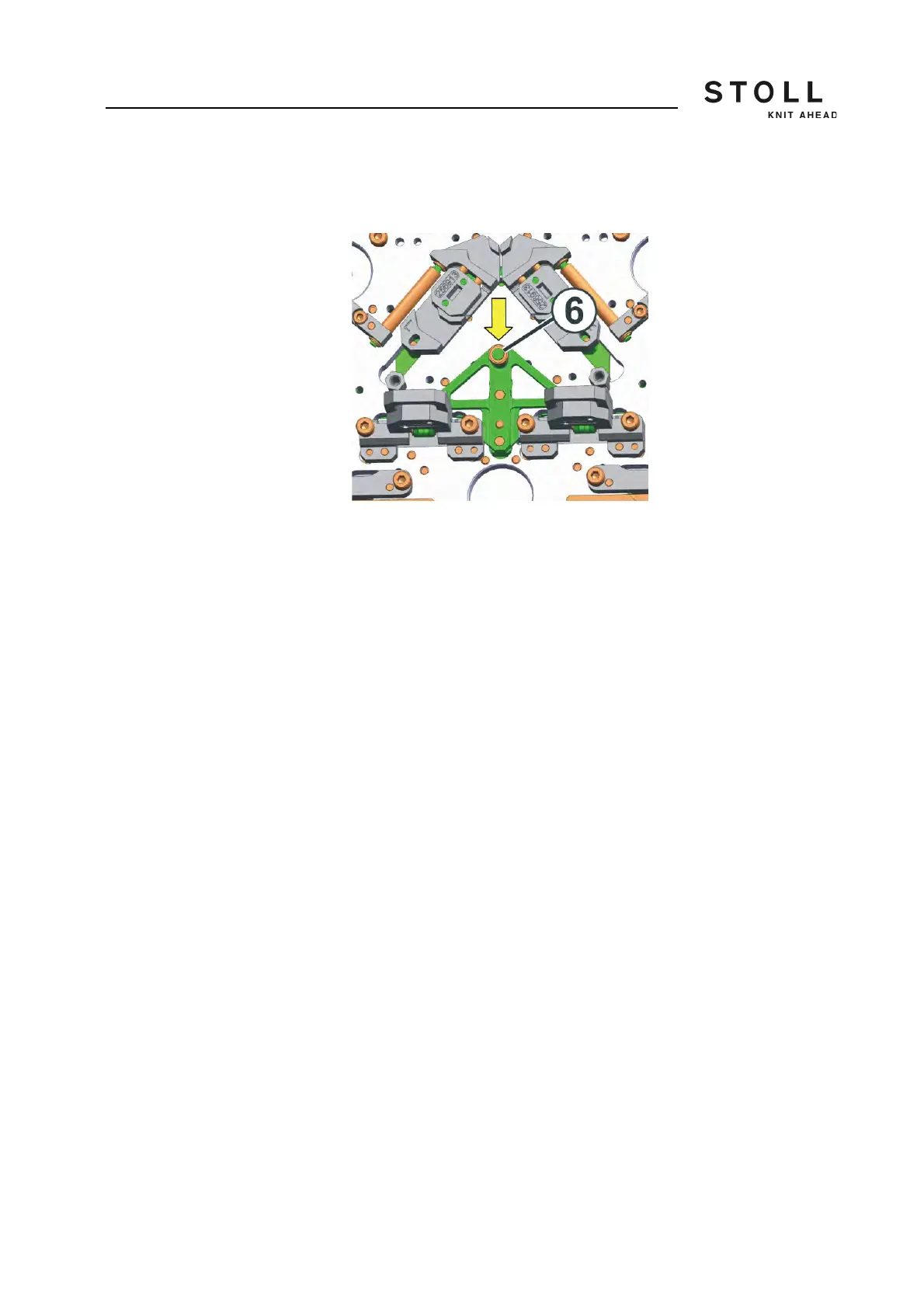

7. Press the mechanics (pressure part tuck) downward to be able to insert
the roller (6) in the gear rack of the step motor.
8. Mount the step motor. If this is not possible, repeat step 7.
9. Screw on the screws (4) tight.
10. Reassemble the cam plate and carriage part in the reverse order.
Further information:
Removing cam plate [-> 327]
Removing carriage part [-> 316]
