7.3.14 Checking the alignment of the light curtain
If a yarn carrier rail is replaced, the light curtain has to be dismantled. After
installing it, the alignment of the light curtain has to be checked.
Thereby, the alignment of the left and the right device of the light curtain to
each other are checked.
Start the automatic check:
1. Call up the "Service" menu from the "Main menu".
2. Call up from"Service" window "Manual interventions Service".


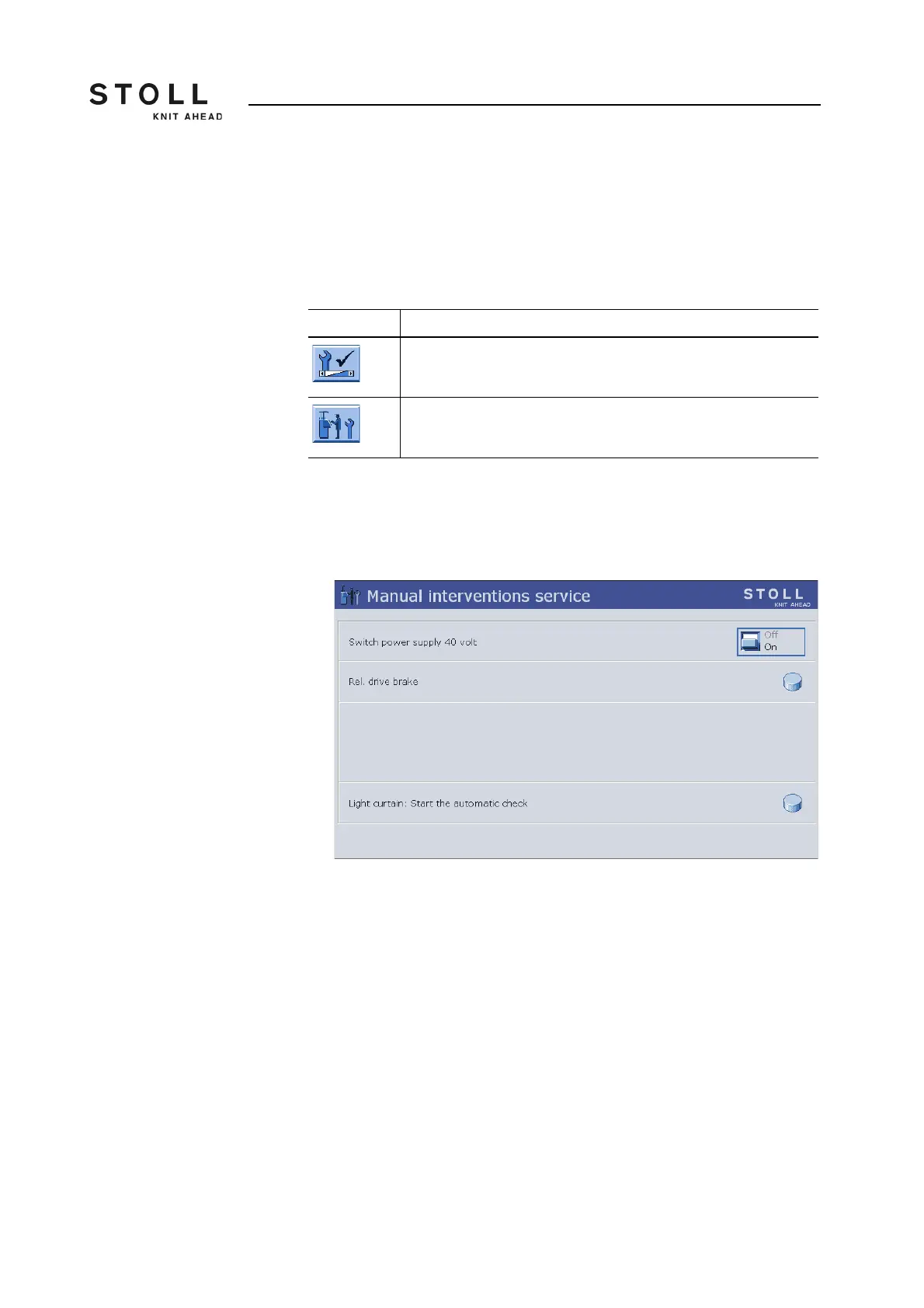

Window "Manual interventions Service"
3. Tap on the "Light curtain: Start the automatic check" key.
 The check starts (duration: one to two minutes).
Key Function
Call up the "Service" menu
Call up window "Manual interventions Service"
Keys for starting the automatic check
