2.4 Knitting system
2.4.1 Needle paths and design

Knitting system
Each knitting system can knit using the three-way technique without
limitation.
Each needle can be controlled in seven positions:
 Stitch
 Tuck
 out of operation
 Transfer
 Take-over
 Split - stitch/transfer
 Split - stitch/receiving
This results in the following possibilities during stitch formation:
 Stitch
 Tuck
 out of operation
 Transfer of stitches and tuck loops from the front to the rear needle bed
or vice-versa, even simultaneously in both directions
The selection system only selects the needles which knit a stitch or tuck,
transfer or split-stitch. All other needles are not selected and do not sink the
stitches.

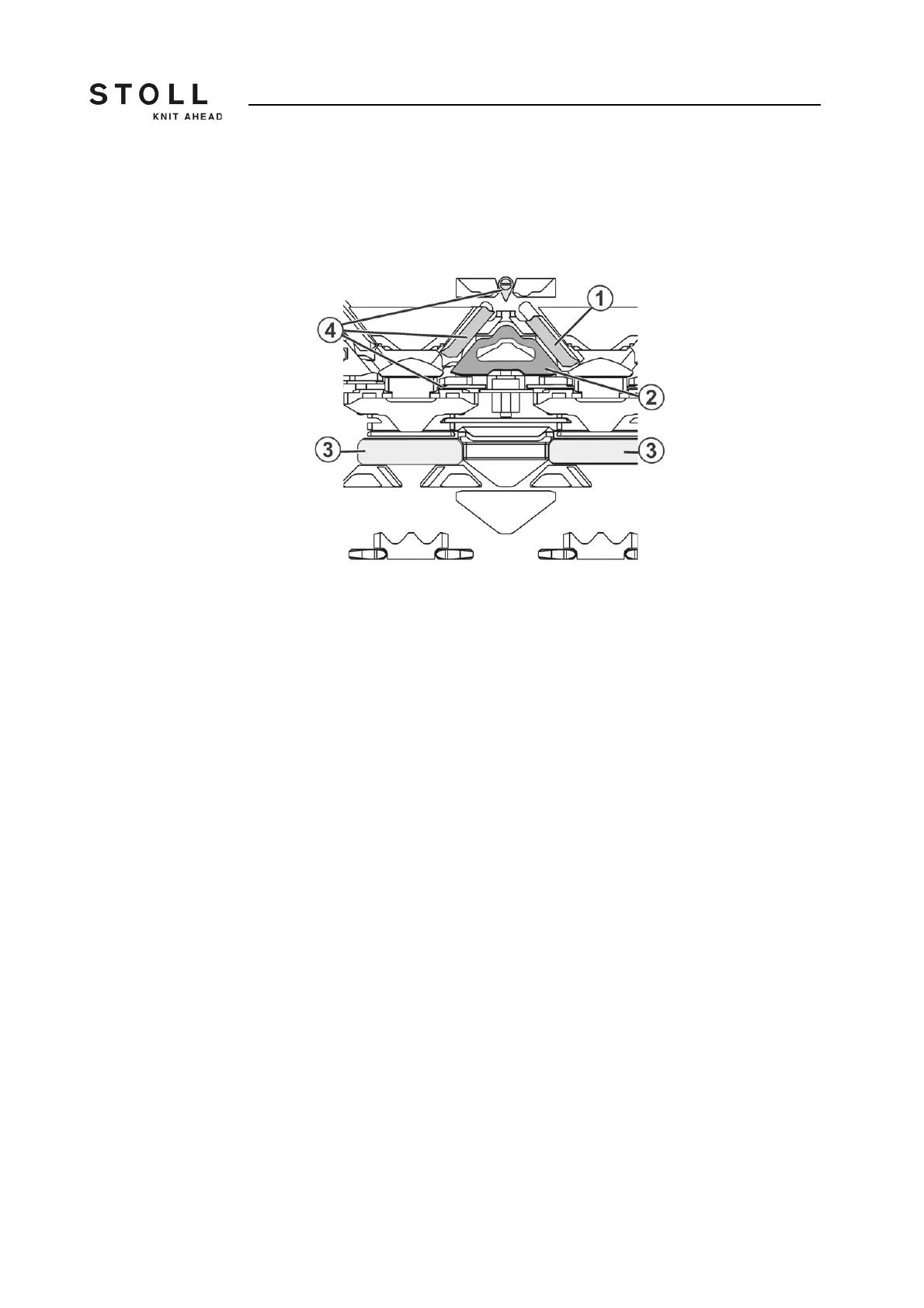

1 Stitch cam 3 Selection system
2 Raising cam 4 movable cams
