Maintenance of the knitting machine 6
Lubricate knitting machine 6.3
288
6.3.3 Oil needle bed
When the lubricating interval for the needle bed expires, a pictograph
appears stating that the needle bed must be oiled.
1. Apply oil with a brush or spray bottle.

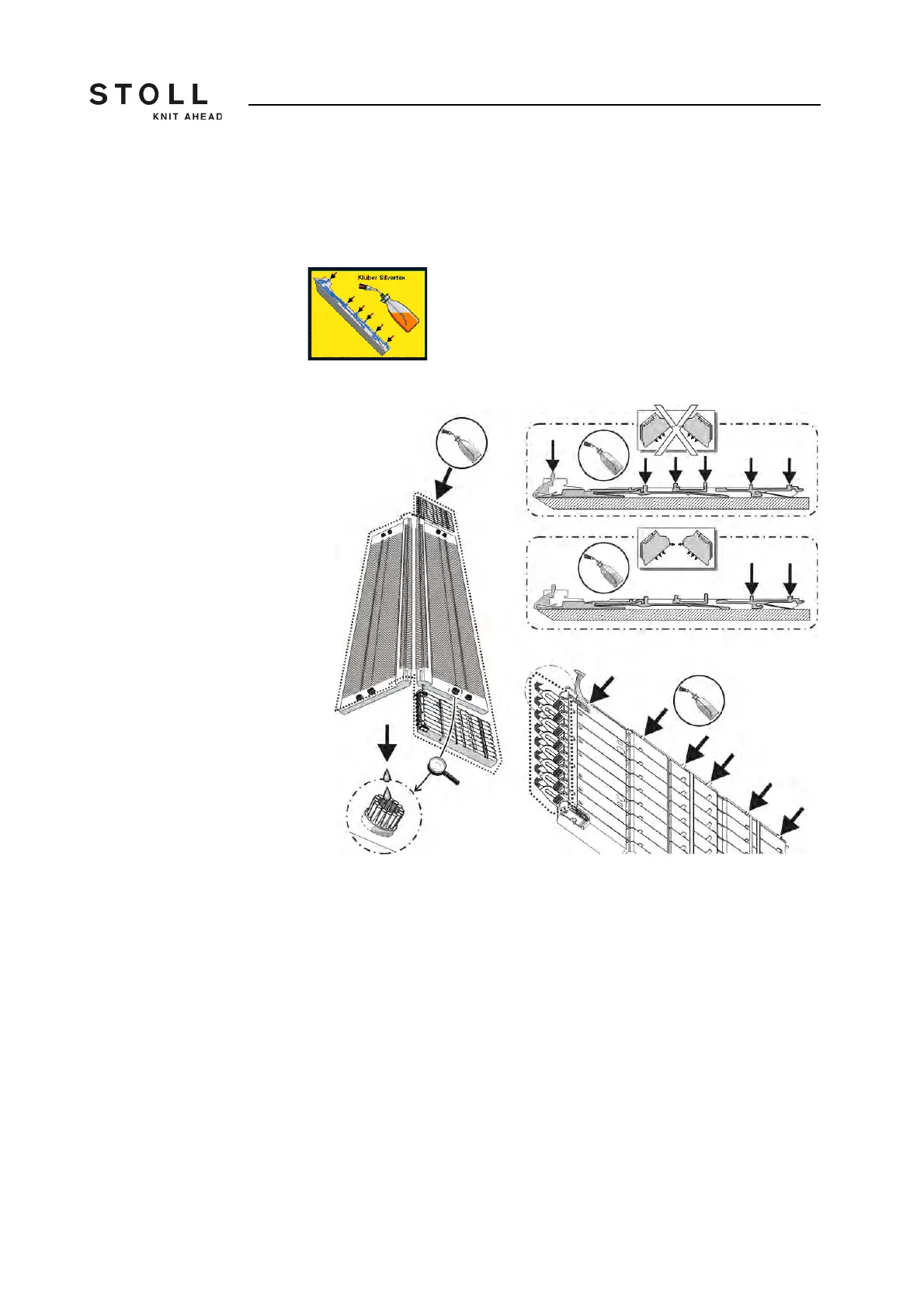

Oiling needle bed (top: without central lubrication, center: with central
lubrication)
2. Brushes are attached at the side of the needle bed. Put some oil in the
upper brush so that the cams near the coupling parts are oiled.
3. Oil the thread clamping and cutting device.
4. Restart lubricating interval. [ 289].
