Displaying System data:
1. In the "Main menu", tap on the "Service" key.
The "Service" window is displayed.
2. Tap on the "Diagnostics" key.
The "Diagnostics" window is displayed.
3. Tap on the "System Info" key.
The "System Info" window with all the important hardware and software
data of the control is displayed.
8.5 Diagnose Control
You can activate different diagnoses for service purposes and for
troubleshooting. The diagnoses protocol additional information in one log
file which can be analysed by the service technician or the helpline.

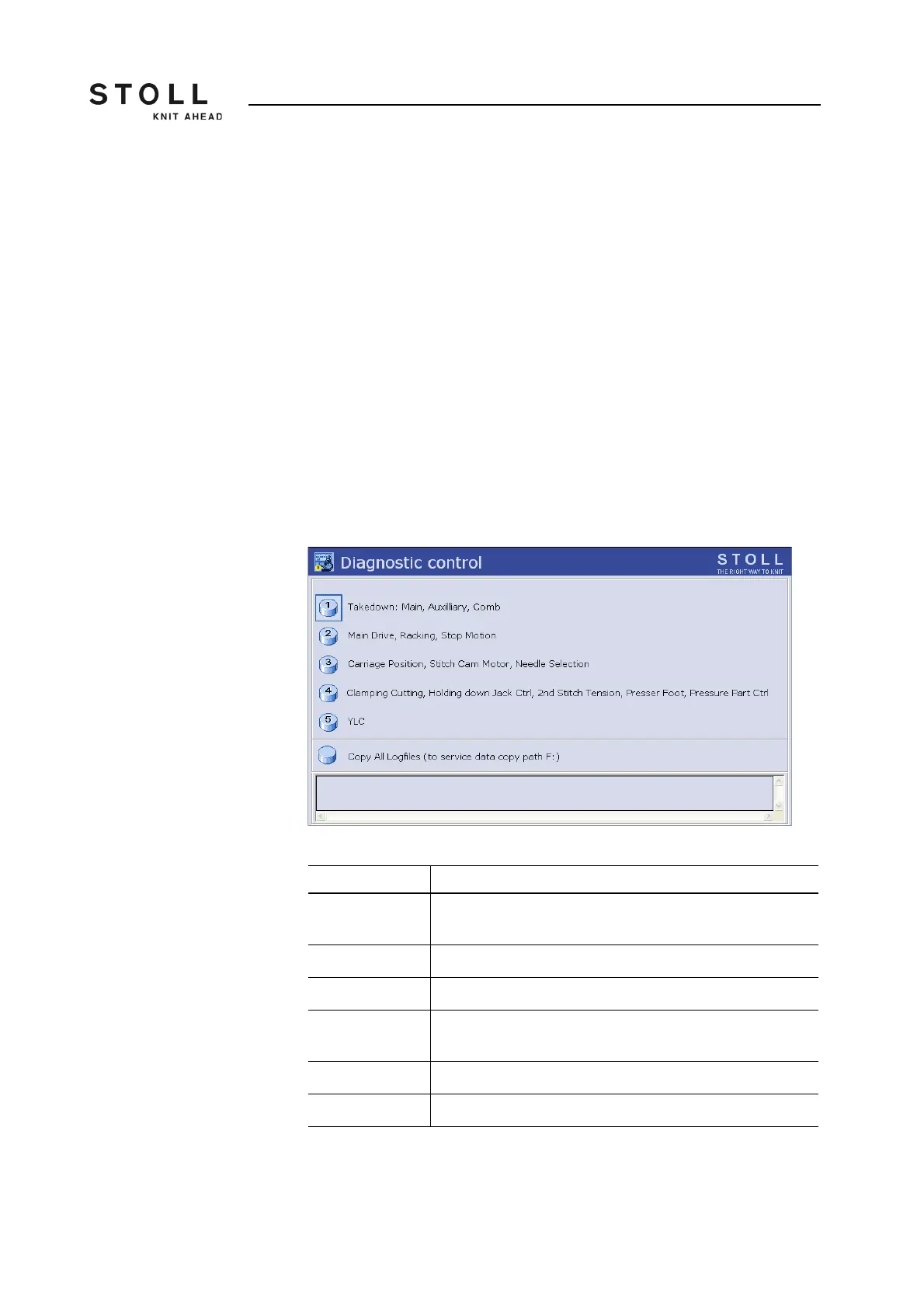

"Diagnostic control" window
Field Data shown
1 Take-down system: Main take-down, auxiliary take-down,
comb take-down.
2 Main take-down, racking, stop motions
3 Carriage position, step motor, needle selection
4 Clamping and cutting, holding-down jacks, 2nd stitch tension,
presser foot, pressure part
5 Yarn Length Control
Copy All Logfiles Saving the data (logfiles)
To Next Page
