9. Reassemble the cam plate and carriage part in the reverse order.
Further information:
 Switching power supply 40 V off and on [-> 297]
7.3.9 Removing and mounting step motor
Each knitting system contains a step motor which controls the stitch cam
position.
1. Remove the carriage part.
2. Remove the cam plate.

Removing step motor

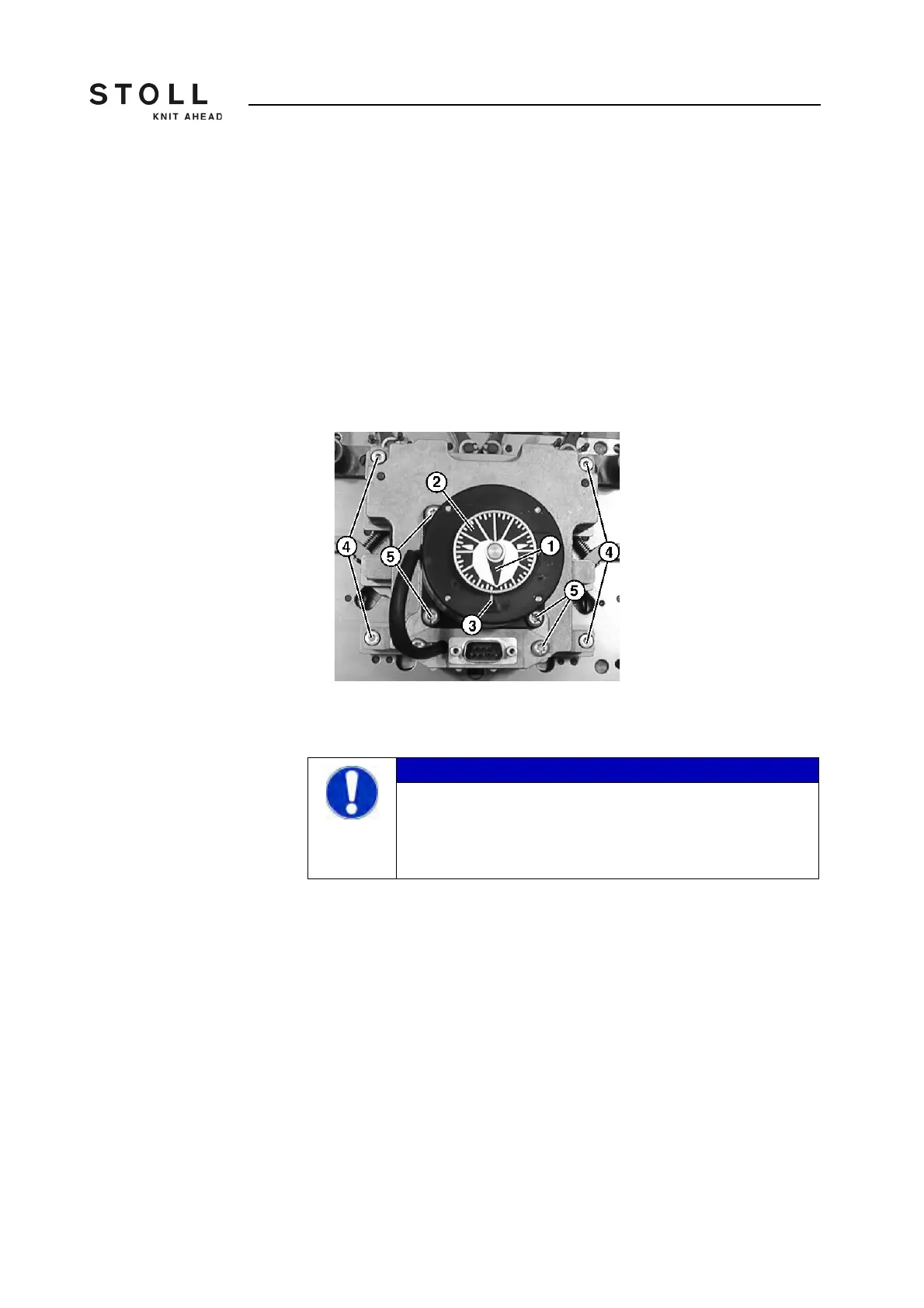

3. Move defective step motor to home position: Turn the scale (2) until the
pointer (1) is positioned exactly on the zero point (3).
4. Remove the screws (4).
5. Take off the defective step motor.
6. Move new step motor to home position: Turn the scale (2) until the
pointer (1) is positioned exactly on the zero point (3).
IMPORTANT
Adjusting screws!
If adjusting screws are released, the step motor must be
readjusted at STOLL.
➜ Do not loosen any adjusting screws (5).
