Maintenance of the knitting machine 6
Lubricate knitting machine 6.3
294
3. Grease quantity per lubricating nipple: about 3 - 4 cm
3
= activate the
hand lever three times.
: Use a grease gun with a flexible hose to be able to reach the
lubricating point more easily.
4. Repeat this procedure at the rear carriage support.
Further information:
Move the carriage assembly outward up to the support surface [-> 301]

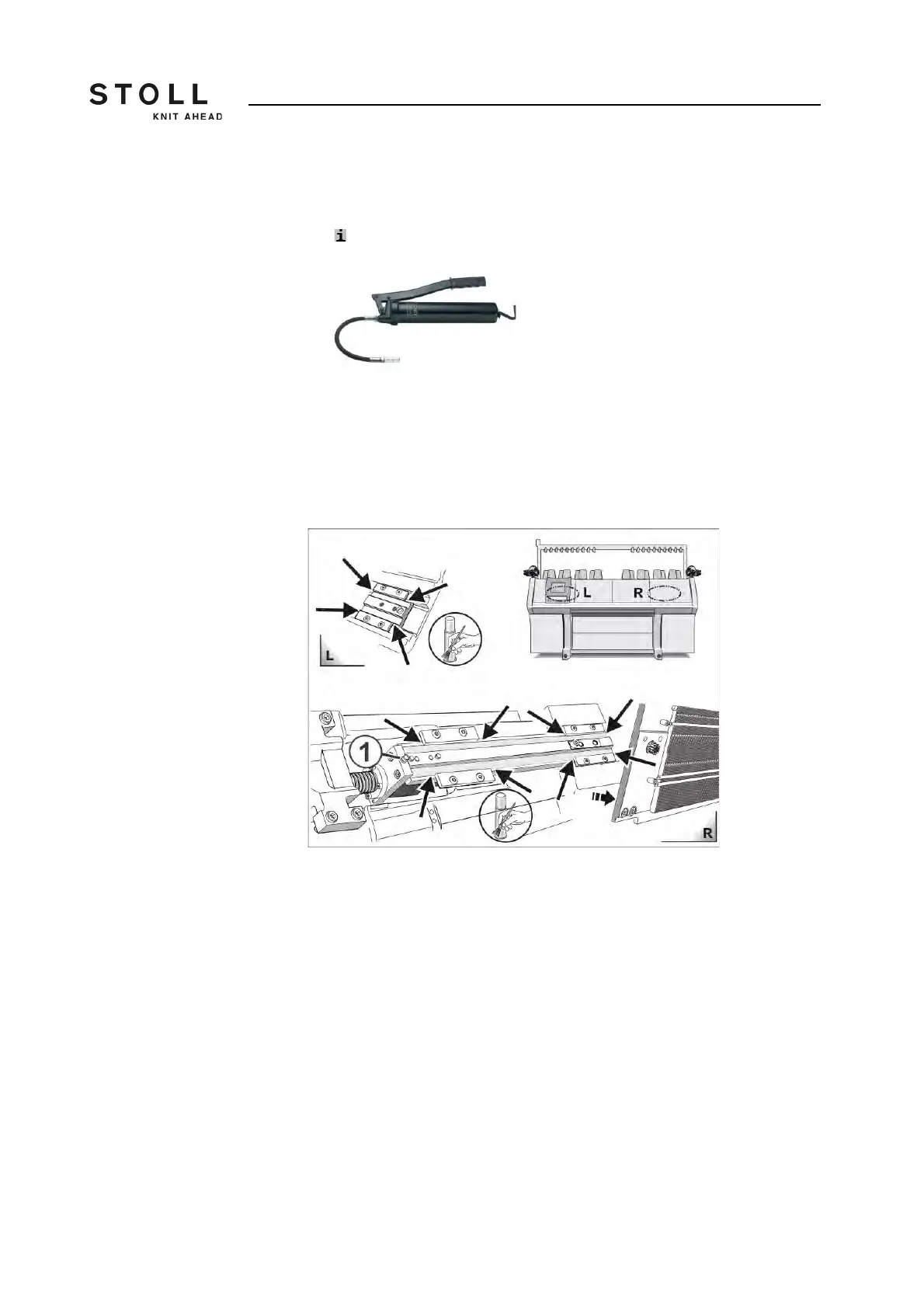

6.3.12 Greasing racking device
Greasing racking device
1. Position the rear needle bed at an angle.
2. Remove the cover over the racking spindle.
3. Apply grease to the racking strip and to the sliding guidance with a
brush.
4. Grease the lubricating nipple (1) with a grease gun (Klueber Staburags
NBU 12/300 KP, ID 231 191)
Further information:
Remove needle bed or position it at an angle [-> 311]
