Stoll CMS ADF-3 - Replacing Yarn Control Unit

Repairing the knitting machine 7
Replacing parts 7.3
334
7.3.11 Replacing yarn control unit


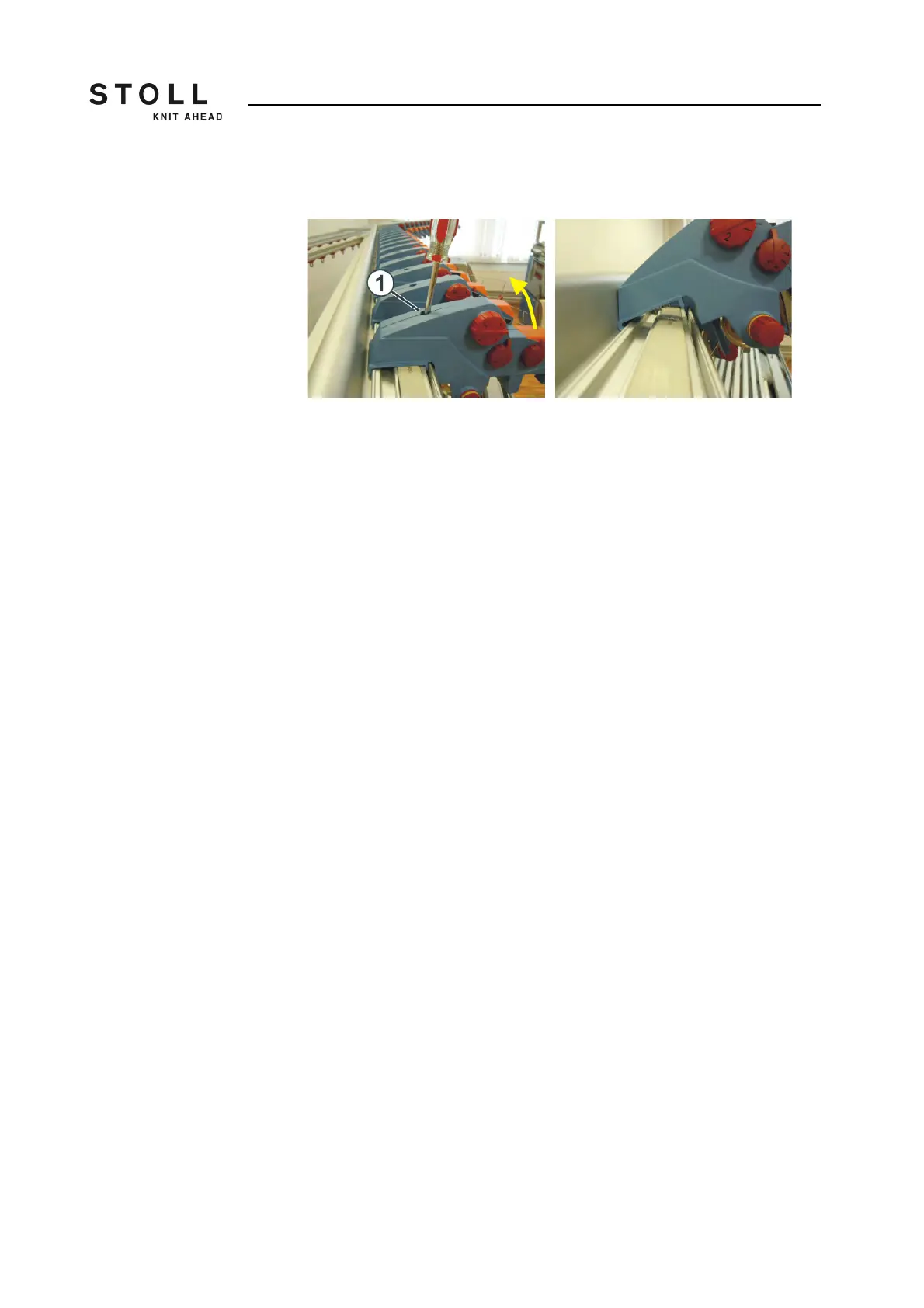

Dismantling a yarn control unit
1. Mark the position of the old yarn control unit.
2. Remove the screw (1).
3. Lift the yarn control unit in the front until the contact pins are free. Push
the yarn control unit to the rear and remove it.
4. Mount the new yarn control device exactly at the position (marking) of
the old yarn control device.
5. Hook in the new yarn control unit in the rear guide rail. Pull the yarn
control unit to the front and press it downwards simultaneously.
6. Pull the yarn control unit to the front and screw it tightly with the screw
(1).
