333
7 Repairing the knitting machine
7.3 Replacing parts

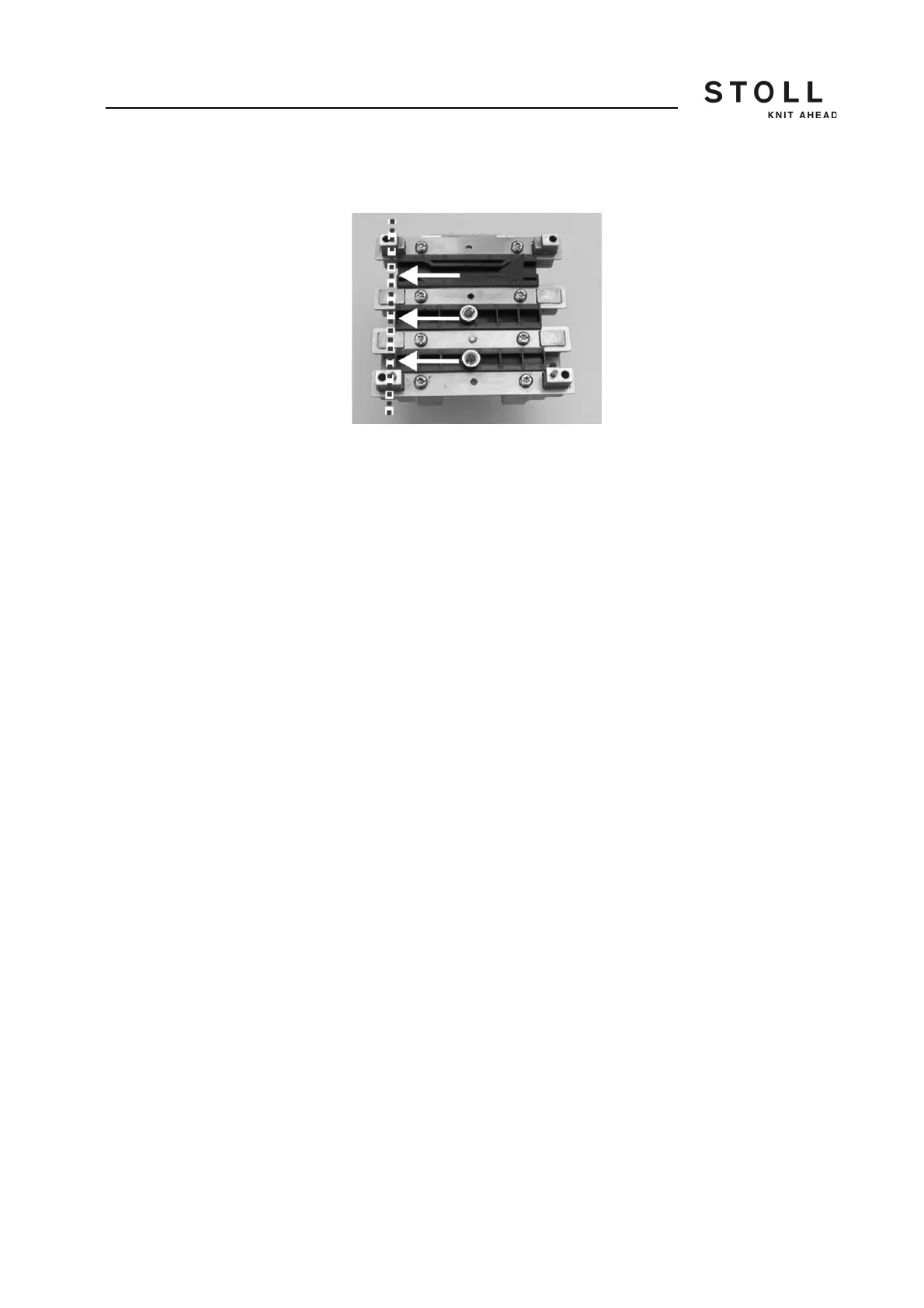

12. The gear racks must be aligned.
Monitoring of built-in position
13. If this is not the case, repeat step 3 through 11.
14. Move pin of the lower gear rack guide at the rear to the home position.
Replacement of the gear racks is complete.
Further information:
Removing and mounting step motor [-> 328]
