7 Repairing the knitting machine
7.5 Check fuses
7.5 Check fuses
7.5.1 Checking fuse (right control cabinet)
1. Set machine main switch to "0".
2. Wait until the touch screen is dark and an alarm signal sounds.
3. Check fuses (1) to (4) at the rear of the right control unit.


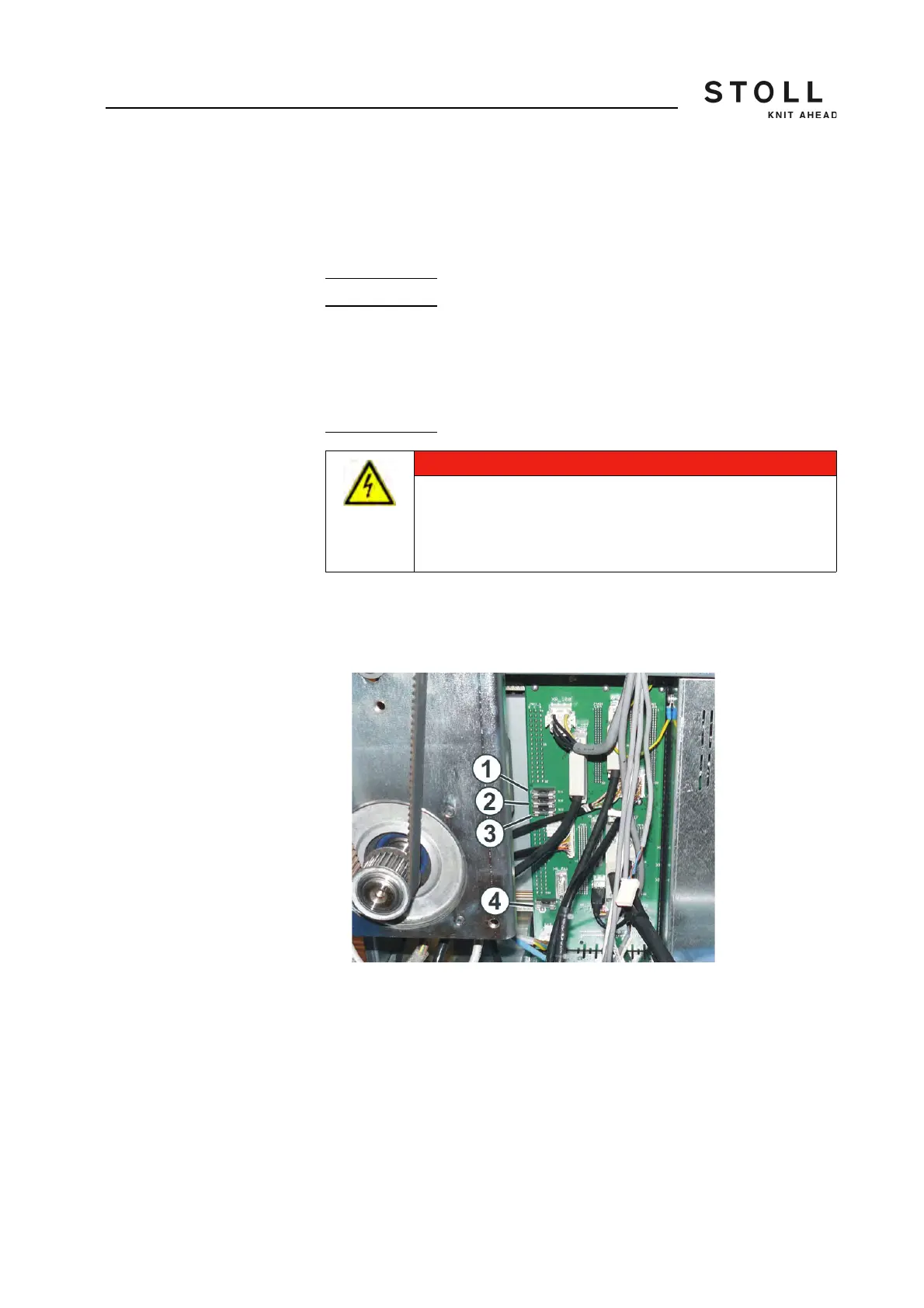

Fuses at the rear of the right control unit (for a better overview the fan was
dismantled)
Valid for:
CMS 530
CMS 520 C
CMS 520
CMS 502
CMS ADF-3
DANGER
Life-threatening high voltage!
Electrical shock may cause death or serious injuries.
➜ Set the main switch to "0" and wait until the touch screen
is dark and an alarm signal sounds.
1 28 V (stop motions) (1A, slow-
blowing)
3 Yarn control device (1A, slow-
blowing)
2 STIXX (1A, slow-blowing) 4 Battery charging (1A, slow blowing)
