Stoll CMS ADF-3 - Threading up Thread into Yarn Carrier

73
3 Producing with the knitting machine
3.2 Threading up yarn
3.2.6 Threading up thread into yarn carrier
Proceed as follows:
1. Open the covers.
2. Move the yarn carrier to a position where it can be threaded it up easier
- for example outside the knitting area.
3. Thread up yarn carrier.

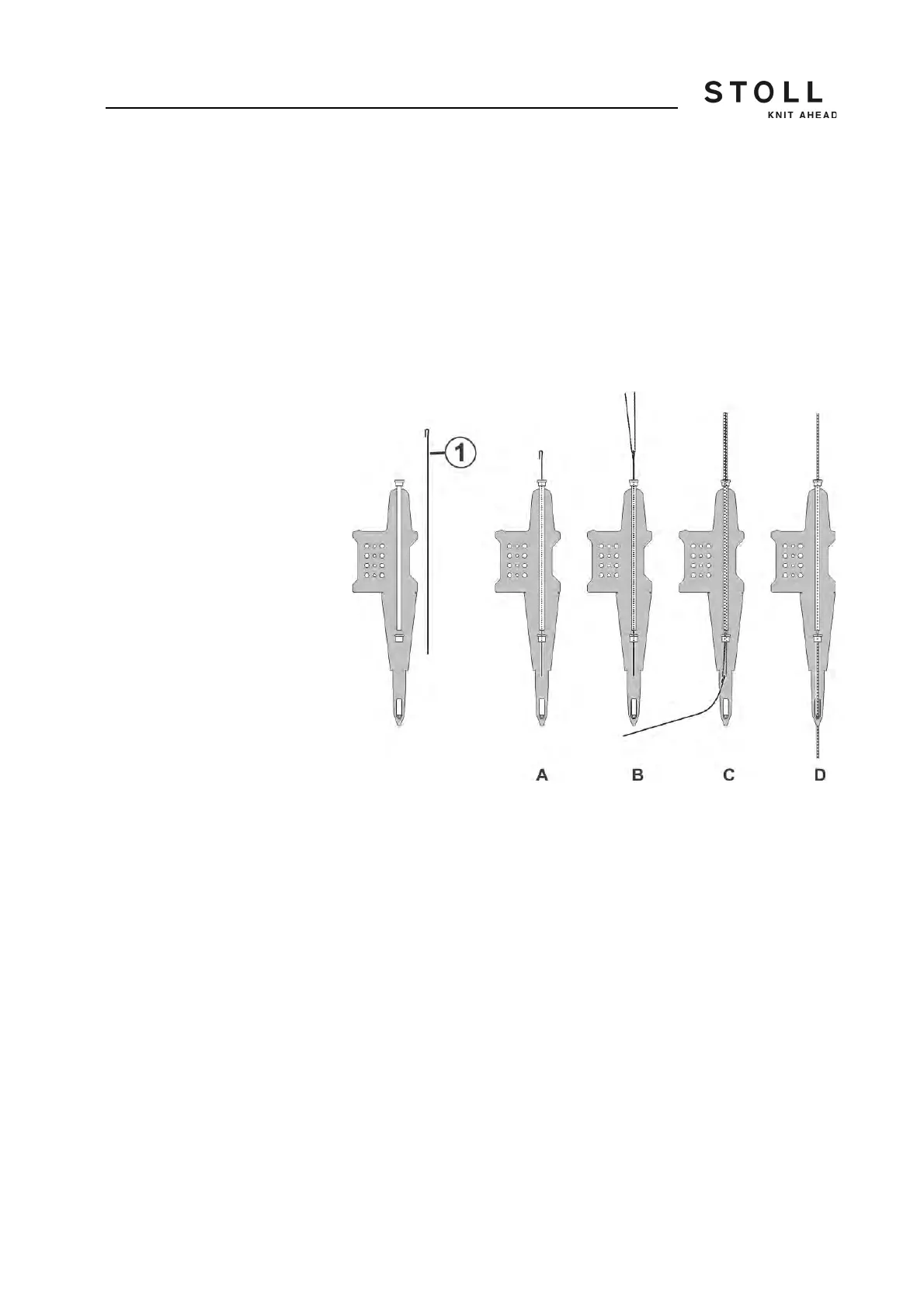

Use the threading aid (1) for it. The threading aid is included in the
accessories.
4. Push the threading aid downward through the little yarn tube (A).
5. Form a thread loop (B) (approx. 30 cm), double the thread for it.
6. Pull the threading aid downward (C).
7. Unthread the thread loop and thread it manually into the yarn carrier tip
(D).
8. Hold the yarn end.
