2 Description of knitting machine
2.4 Knitting system
2.4.2 Holding-down function
The holding-down jacks hold down the fabric when the needles for stitch
formation are driven out. The holding down jacks are moved by the holding-
down jack control unit on the carriage.
Holding-down jack control unit
Jack slider
The leading jack slider (4) is switched upward.
This pivots the holding-down jacks downward into the holding-down
position during needle raising. They hold down the stitches.
The following jack slider (5) is pulled back and the holding-down jacks pivot
back again. The holding-down jacks are open during yarn insertion.
When the carriage reverses, the jack sliders are switched over
automatically.

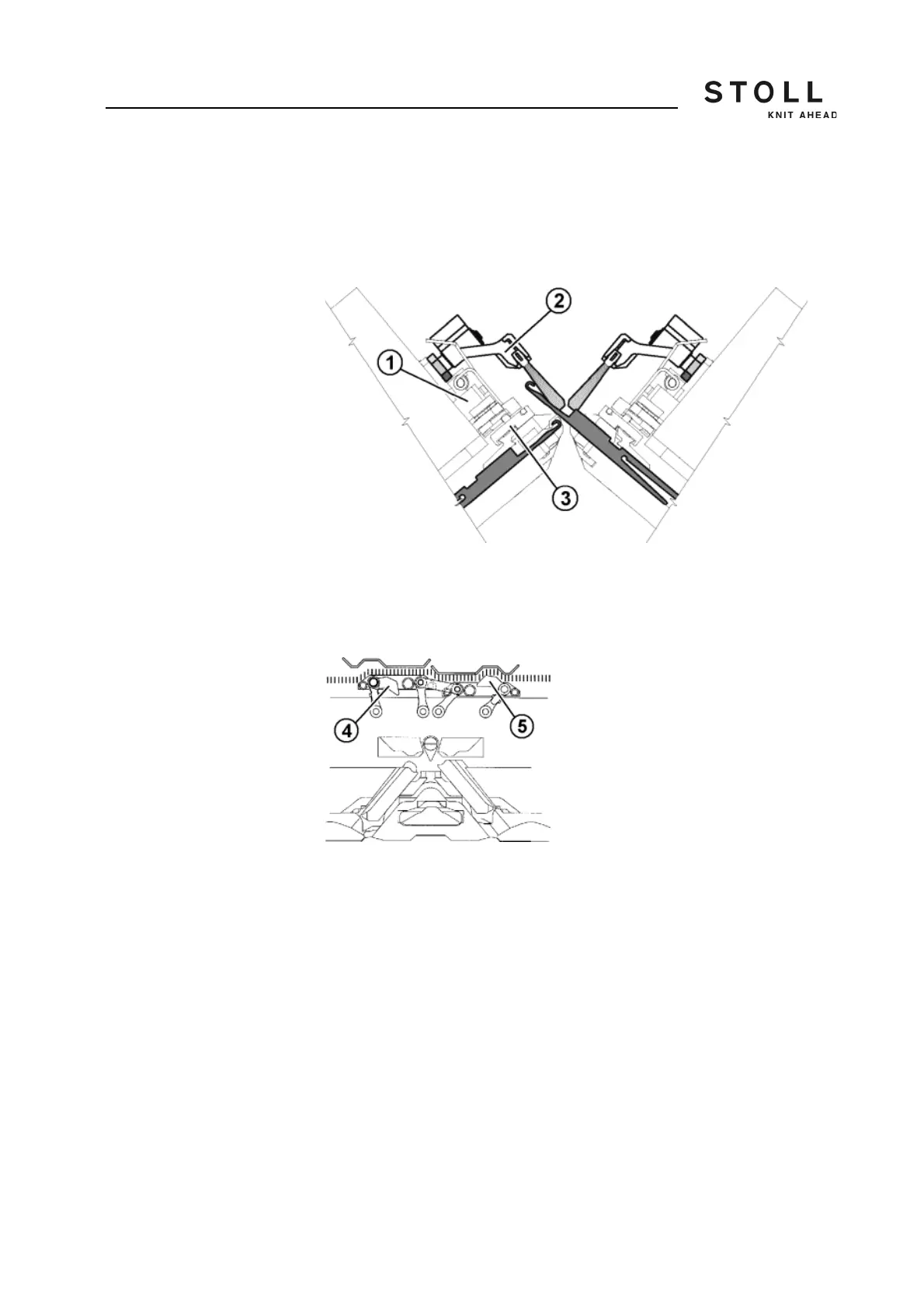

1 Holding-down jack control unit
2 Swiveling brush holder
3 Jack slider
4 Leading jack slider
5 Following jack slider
