7 Repairing the knitting machine
7.3 Replacing parts
7.3.3 Replacing selection jack
Replacing selection jack
1. Push the needle with the coupling part upward.

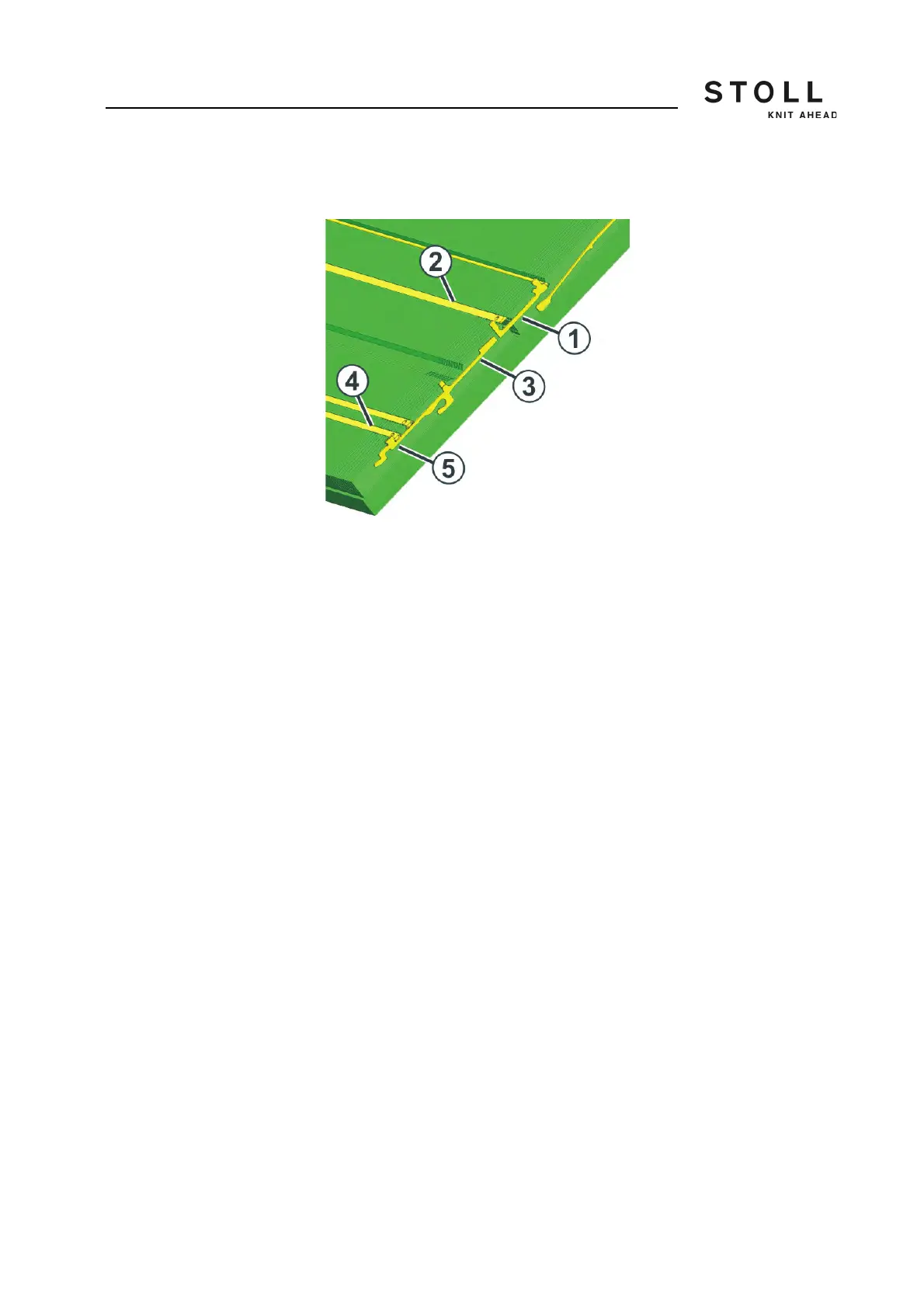

2. Push the intermediate slider (1) until the lower butt bumps into the
spring wedge (2).
3. Push the selection jack (3) upward until it bumps into the cover rail (4).
4. Press the butt (5) of the selection jack into the needle bed while at the
same time sliding the selection jack further upward.
5. Remove the selection jack.
6. Install the new selection jack in the reverse order.
7. Slide the intermediate slider in home position.
8. Slide the needle and the coupling part into the home position.
