Repairing the knitting machine 7
Eliminating faults in electronics system 7.4
348

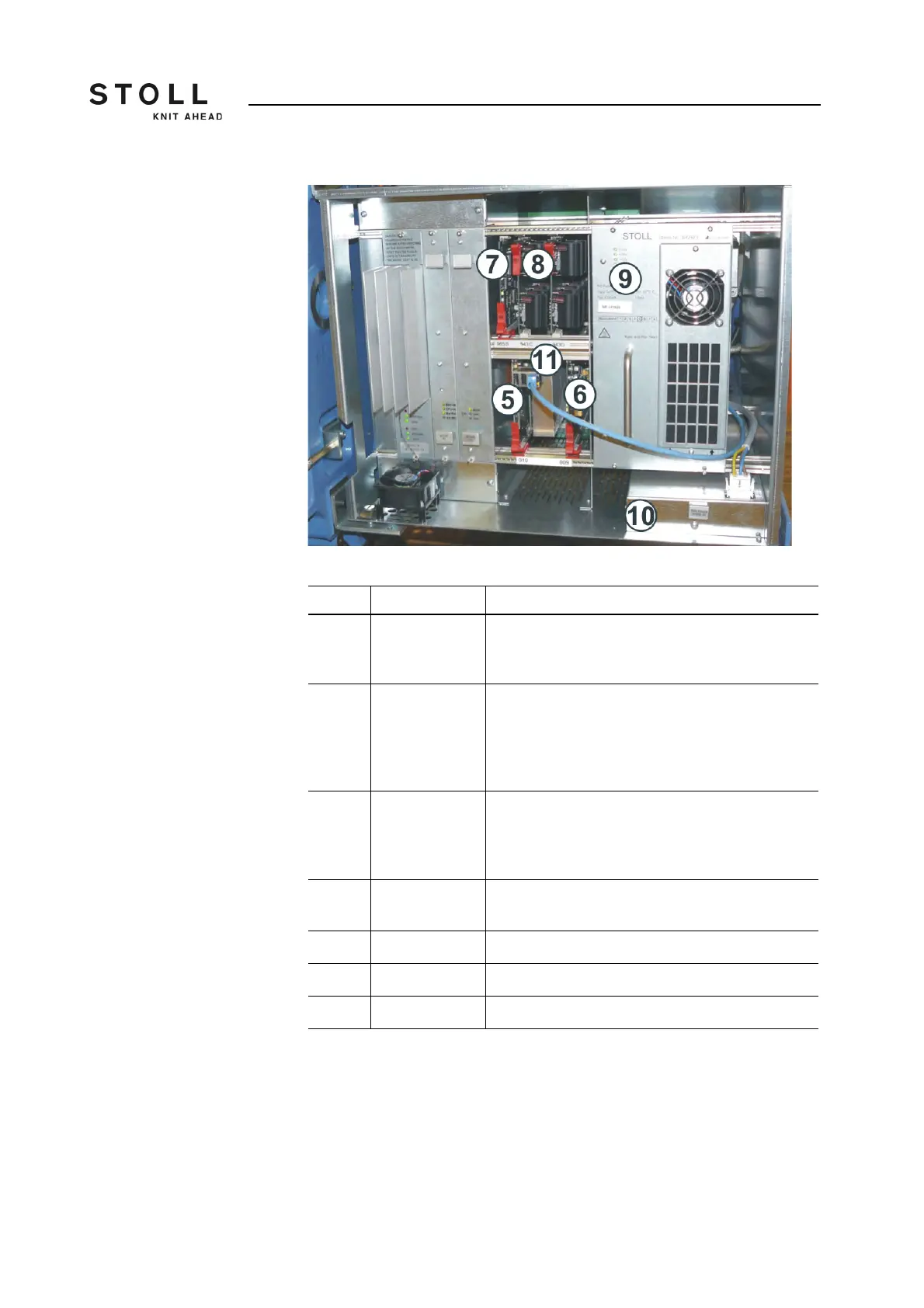

Right control cabinet
Card Function
5010
(ID 301 010)
Controlling the input unit and the touch screen.
Controlling hard disk. The hard disk is integrated on
the board.
6032
(ID 301 032)
Main computer; collecting all messages from the
other cards. Output of instructions to the other cards.
Control of the knitting sequence.
Controlling the carriage (main drive) and the racking
position of the rear needle bed.
7014
(ID 301 014)
Monitoring of the carriage assembly positions.
Actuation of the selection systems and the step
motors. Forwarding of the information to the board
943.
8943
(ID 300 943)
Motor driver of the step motors of the stitch cams.
Cooperation with the card 014.
9 300 923 Power supply unit with LEDs
10 301 008 Battery plug-in unit
11 Ethernet cable, if the machine is networked.
Electronic cards
