Repairing the knitting machine 7
Needle selection displacement 7.6
358
7. Carry out the test series.
8. Tap the "Reset" (1) key.
The active line (2) of the test series is highlighted.
9. Engage the machine.
The carriage moves very slowly from right to left (MSEC=0.15).
10. While the carriage is running you perform a visual inspection. Check
whether all the needles are driven out for knitting or not.
11. Stop the carriage in the left reversing point.
12. Enter the test result in the table.
If all the needles are driven out, you do not need to enter anything, as
"OK" is entered by default in the active line.
- or -
➜ If one or more needles are not driven out, set the (4) switch to "0". An
"F" is entered in the table.
13. Engage the machine and check the needle selection in the other
carriage direction.
14. Stop the carriage in the reversing position and enter the test result with
the help of the switch (3).

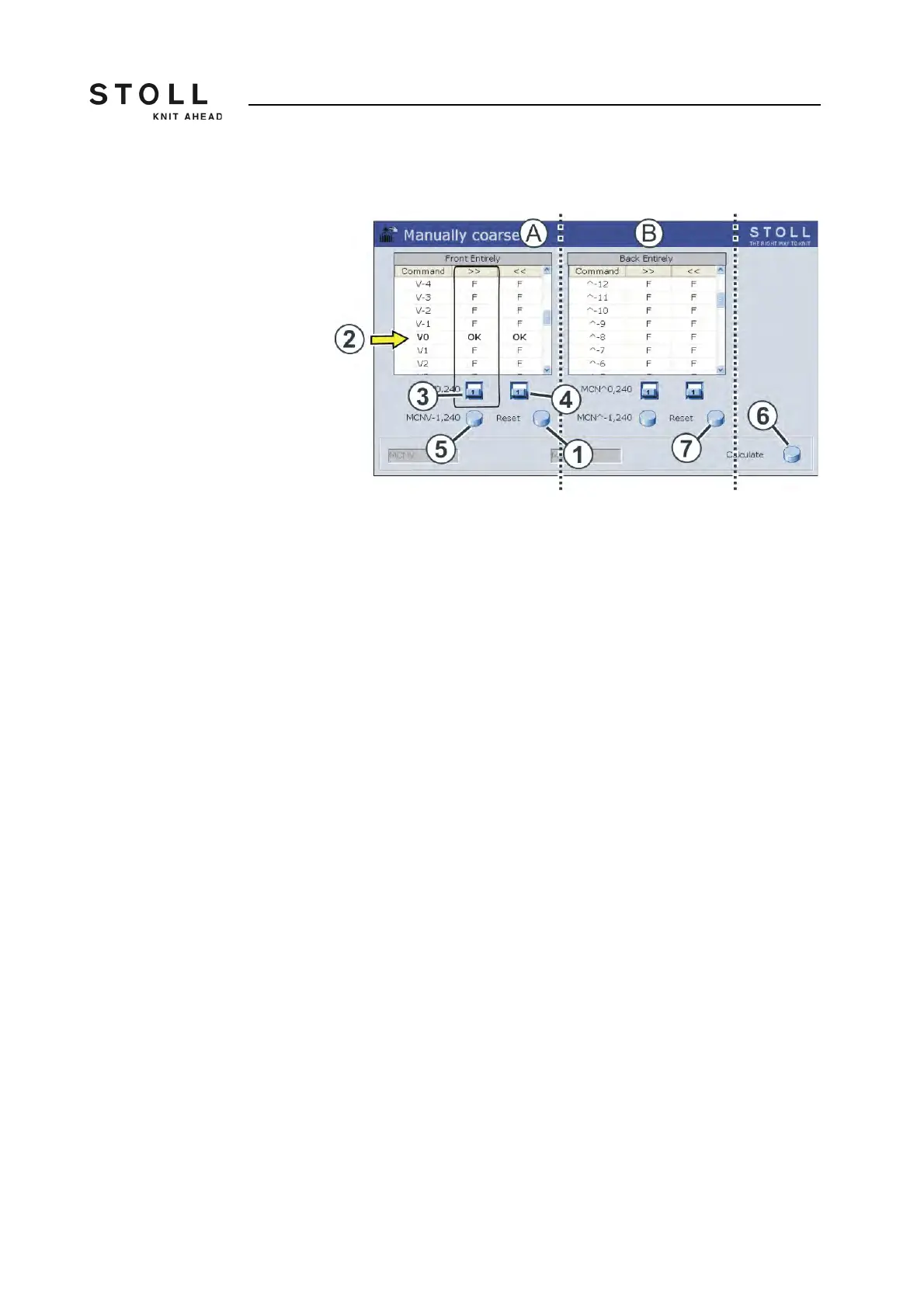

A Test for the front needle bed B Test for the rear needle bed
1Reset
Delete the test results for the front
needle bed.
4 Enter the test result (carriage
direction: <<)
2 Current line of the test series 5 Proceed to the next line
3 Enter the test result (carriage
direction: >>)
Switch setting "1" – OK
Switch setting "0" – F (Error)
6 Calculating the optimal reaction
time
7 Reset
Delete the test results for the
rear needle bed.
