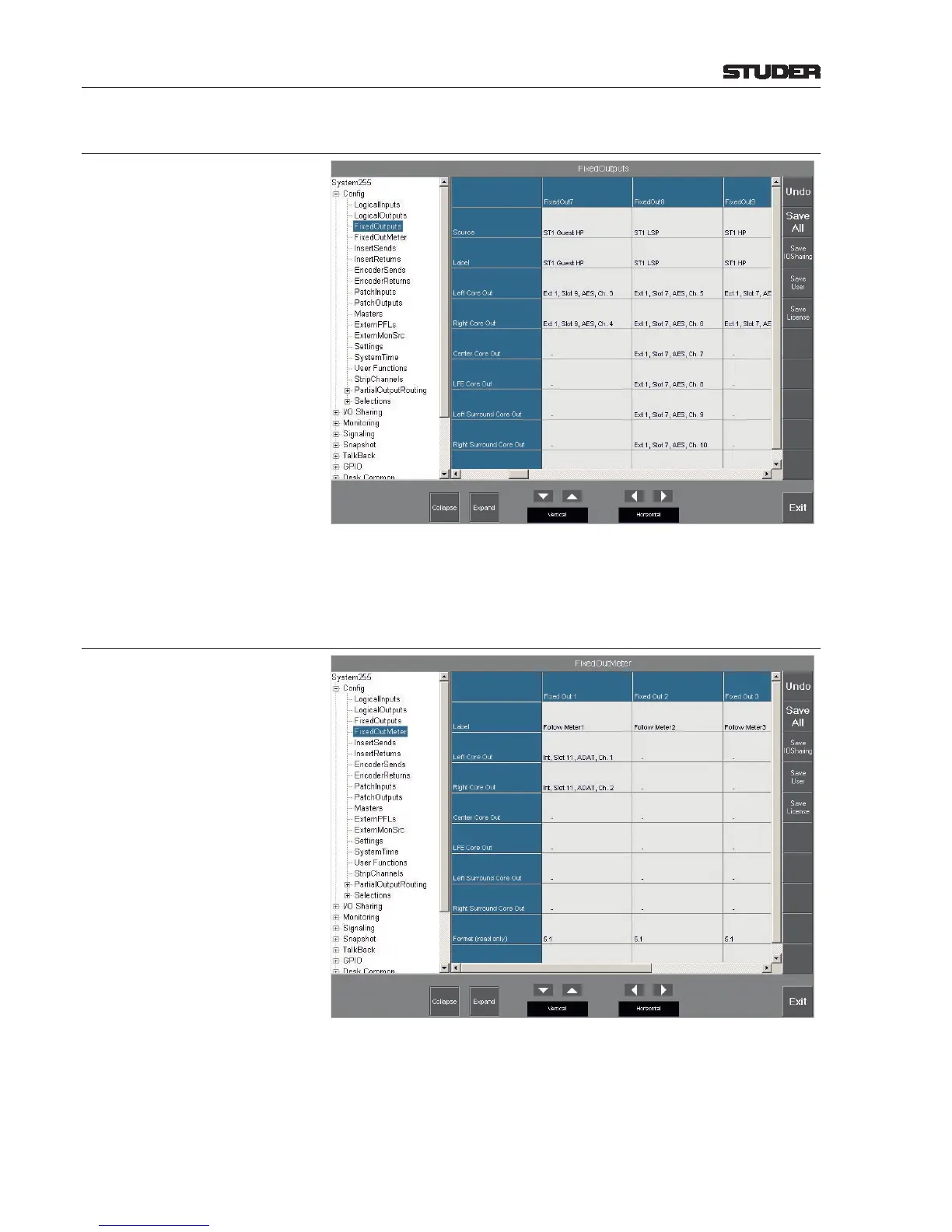

6.5.3 Fixed Outputs
Fixed outputs are used for dedicated outputs, such as monitoring outputs;
for them, the same applies as is said in chapter 6.5.2 above, except that the
Format parameter is read only and cannot be set.
6.5.4 Fixed Out Meter
The console provides two dedicated metering outputs that follow the built-in
meters on the main screen. These outputs may be used to connect additional,
external bar graph meters, e.g. in a meter bridge, if required. These outputs
are dened here. The same applies as is said in chapter 6.5.2 above, except
that the Format parameter is read only and cannot be set.
For systems with primary/secondary desk conguration, up to four meter
outputs can be congured (two per desk).
