5.3.9 Login Page
For details of user access rights please refer to chapter 5.10.

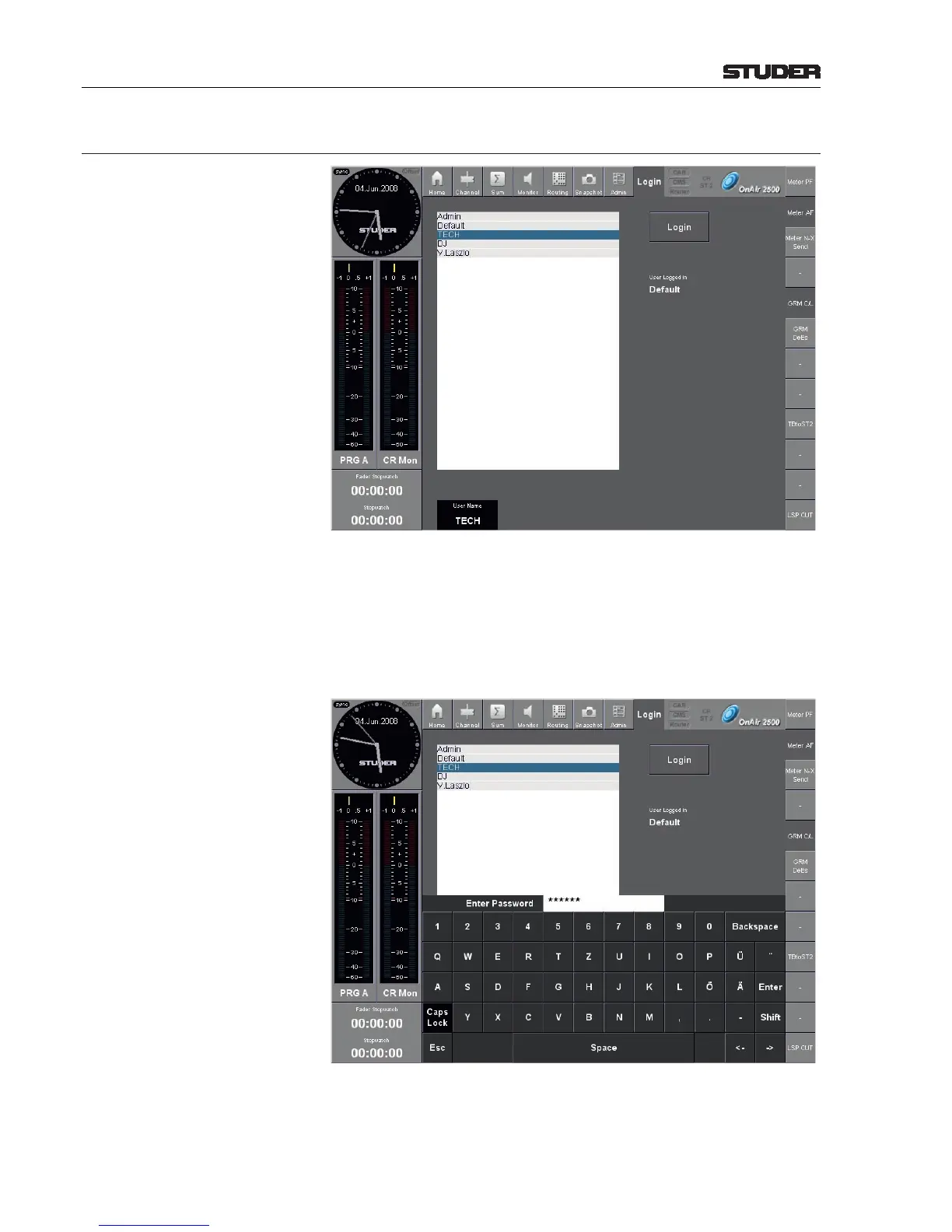

To login, a user selects his name from the user list with the rotary encoder
below the User Name field, followed by touching the Login button. If
more than 50 users should be configured in a system, selection from a list
is inconvenient; in such a case a login dialog with a keyboard for entering a
user name appears, as described below. If a password has been stored for this
user, the keyboard for password entry is displayed:
Please note that correct upper/lower case setting is important. ñ/Shift and
Caps Lock functions of screen keyboard and a USB keyboard possibly con-
nected (see chapter 5.1) are independent. After typing the correct password
followed by Enter, the new user is logged in. The Login button and tab
change to Logout.
