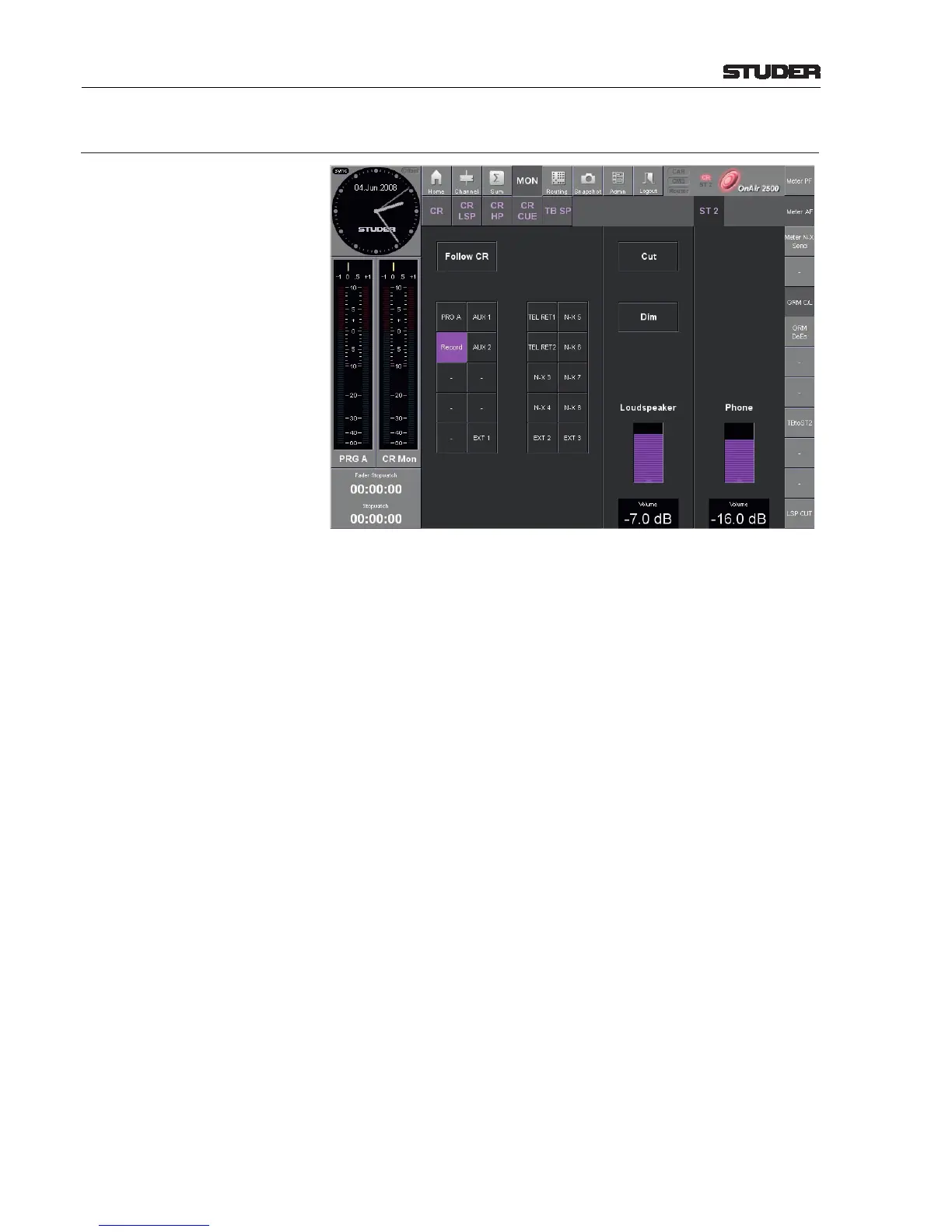

5.3.5.5 (Monitoring) Studio 2 Page
The controls of the studio 2 page are operated in parallel to the controls on
the monitoring/talkback box in the studio.
Source Selector The source selector buttons can be configured with the desired sources; the
currently selected source is highlighted.
Follow CR Selects the same monitoring source for the studio as is selected for the control
room; this also works for sources not configured on any button of the source
selector.
Cut, Dim These buttons allow to mute or dim the studio loudspeakers; highlighted if
active.
Loudspeaker / Phone Volume Monitoring volumes are indicated with the bar graphs. The exact values are
displayed in dB and can be set with the rotary encoders below the fields.
