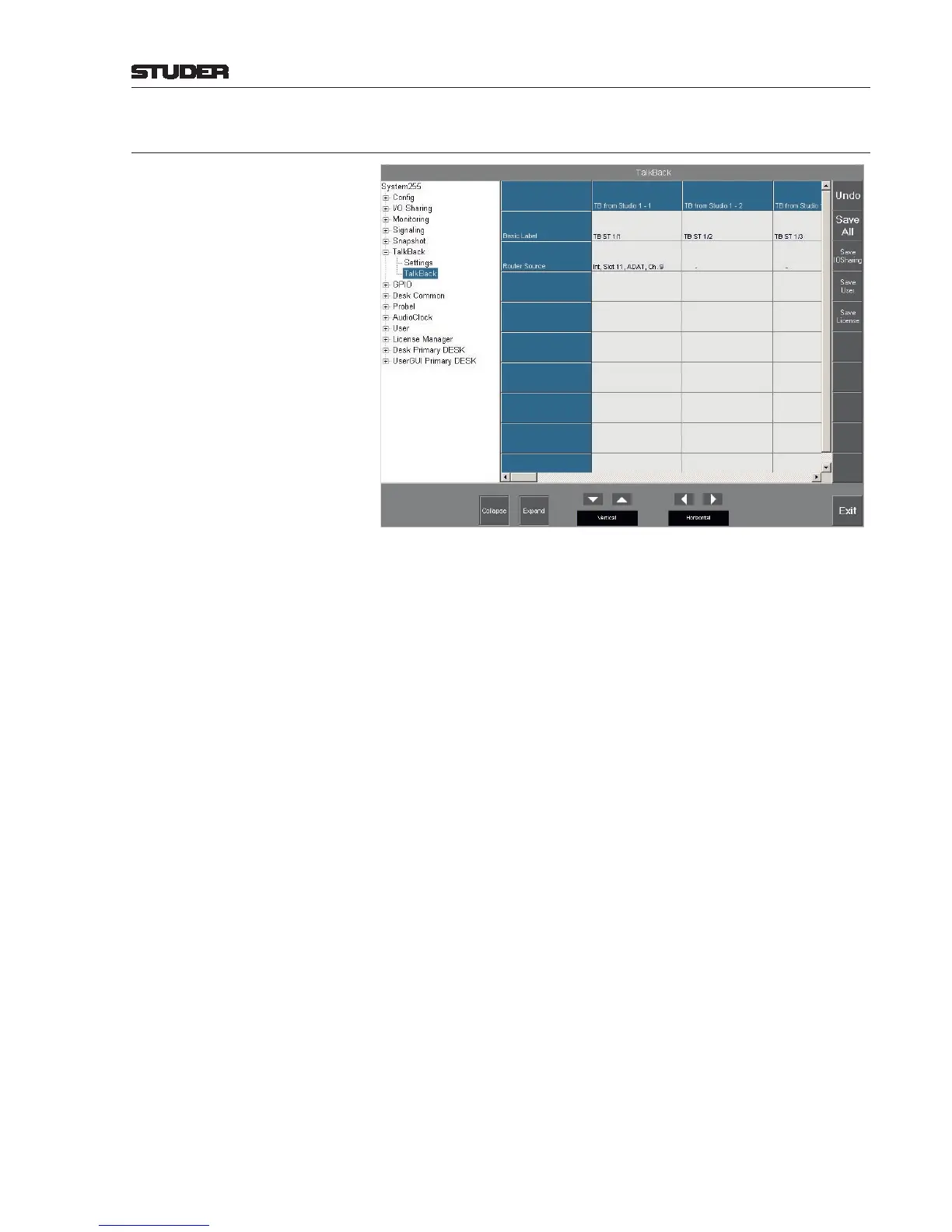

6.5.25.2 TalkBack
This page denes the physical inputs used as talkback return sources (up to
four summed microphones per studio, one external talkback source TB from
Extern, and 16 additional external talkback sources TB from Ext 1...16).
OnAir 2500: Talkback from studios 1 and 3 not supported. Only four external talkback
sources supported.
Basic Label The basic label may be entered here as described in chapter 6.5.1.
Router Source Denes the physical audio input that is used to establish the mono channel
for the logical input.
Indication: Frame (Int = internal I/O cards in SCore frame; Ext # = additional,
external D21m frames), Slot #, Card type, and Input # (e.g. Int, Slot 11,
ADAT, Ch. 9), or “-” (if no physical input is assigned to the logical input).
