6.5.19.6 Out Routing

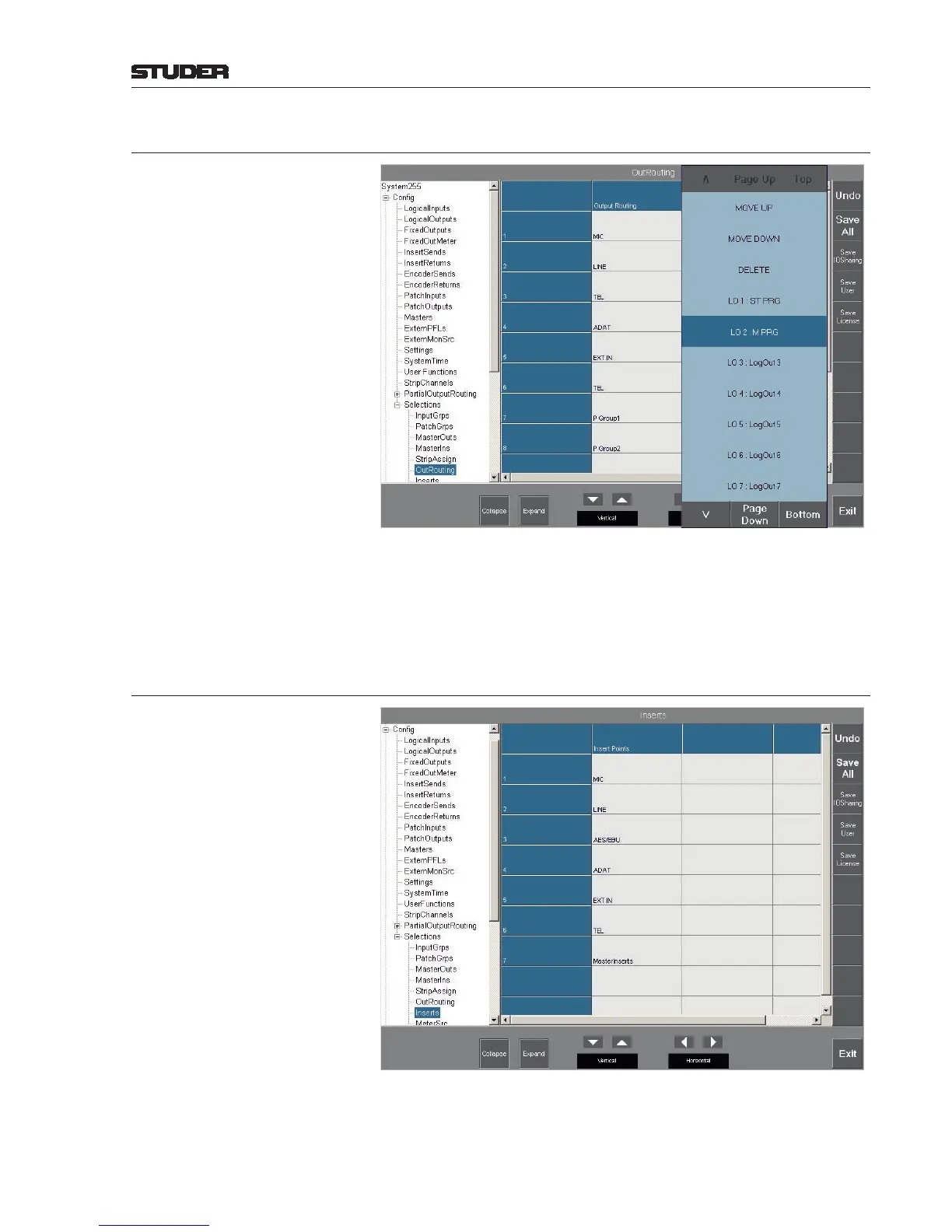

This page denes the presentation of the ROUT - Output page when touch-
ing the Select Group eld, and the logical outputs displayed in the rows on
the ROUT - Output page. Since the same output label may exist more than
once – e.g. in A/B desk congurations – the output ID is displayed together
with the output label in the selection list, as shown above.
6.5.19.7 Inserts
This page denes the presentation of the ROUT - Insert page, using the set-
tings made in Inp Grps (chapter 6.5.19.1), and Master Ins (chapter 6.5.19.
4).
