OnAir 2500 Digital Mixing Console
Operation 5-27
Date printed: 18.07.08
SW V3.0
Lock, Unlock A connection may be protected from changes by selecting it and touching the
Lock button. If locked, the Connect and Clear buttons are blanked, and a
padlock symbol is indicated next to the input label.
To unlock, select the connection and touch the Unlock button.
5.3.6.2 (Routing) Output Page
The output routing page allows setting up the mixing console’s output router;
the general rule is that each input, each patch input, and each master bus can be
routed to any output. For a general description of the routing refer to chapter
5.8.
Notes: Monitor routing is not part of this page; it must be set in the configuration
tool.
All inputs are listed here as well, which allows routing them directly to an
output without any processing by the console (and, subsequently, without
consuming any processing power).

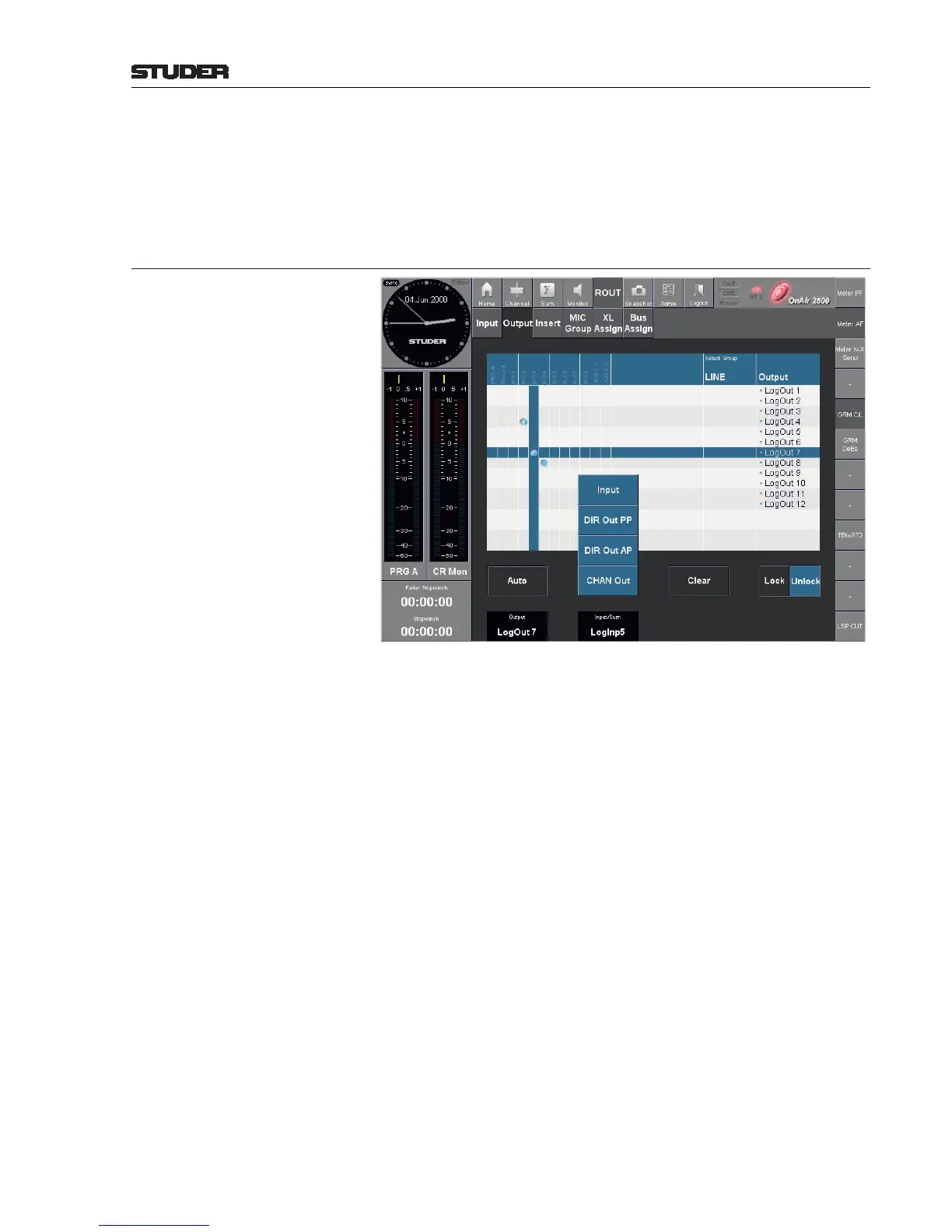

Matrix On the graphical representation of the routing matrix, the console master
buses (and inputs) are displayed from left to right, and the outputs from top
to bottom. Established connections are indicated by a blue bullet.
Select Group For clearness, the different master buses (and inputs) may be arranged in
groups. This button opens a list of items to select from.
Output Display of the selected output (position of the horizontal cursor line). Output
selection is done with the rotary encoder below the field. If more console
channels are available than can be displayed by the screen, the matrix auto-
matically scrolls when the cursor line meets its upper or lower limit.
Input/Sum Display of the selected master or input (position of the vertical cursor line).
Selection is done with the rotary encoder below the field. If more masters and
inputs are available than can be displayed by the screen, the matrix automati-
cally scrolls when the cursor line meets its left or right limit. If an input or
master bus has no output assigned currently, its number above the matrix is
displayed in blue instead of in white.
Auto If this function is active, the correct subpage is indicated automatically upon
changing an output.
To Next Page
