5.3.6.5 (Routing) XL Assign Page
Extended Line (XL) Module: The XL box allows direct communication to up to twelve outside sources but
may be used for different applications as well. This page allows assigning the
desired sources to the box keys.

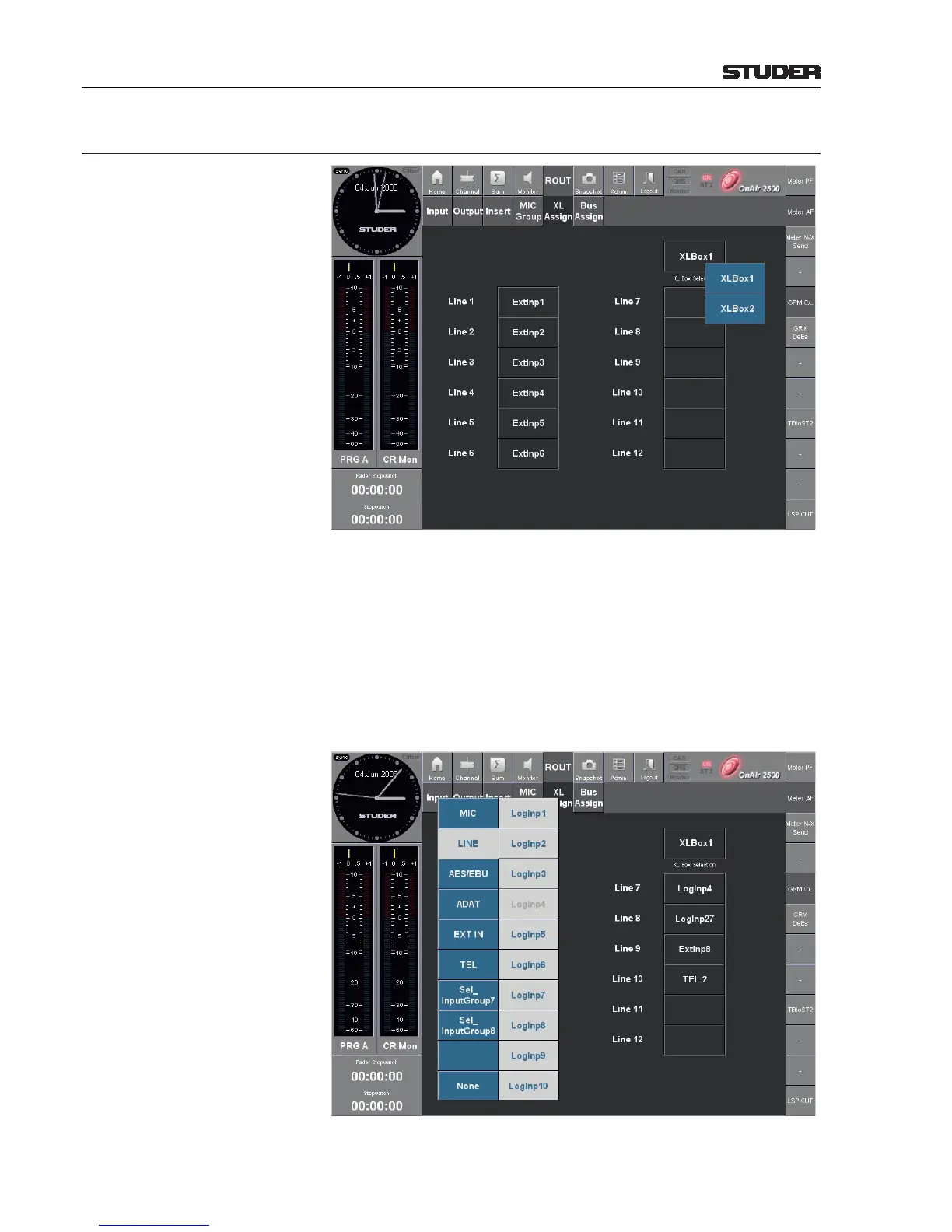

XLBox1 / XLBox2 First, select the XL box; when touching this button, two selection buttons for
the available XL boxes appear, as shown above.
Line 1...12 When touching one of the buttons next to the Line 1...12 labels, first a list of
source groups appears for selection; touching one of these items opens a list
of available sources, as shown below. To assign, touch the desired source’s
button.
