OnAir 2500 Digital Mixing Console
Operation 5-25
Date printed: 18.07.08
SW V3.0

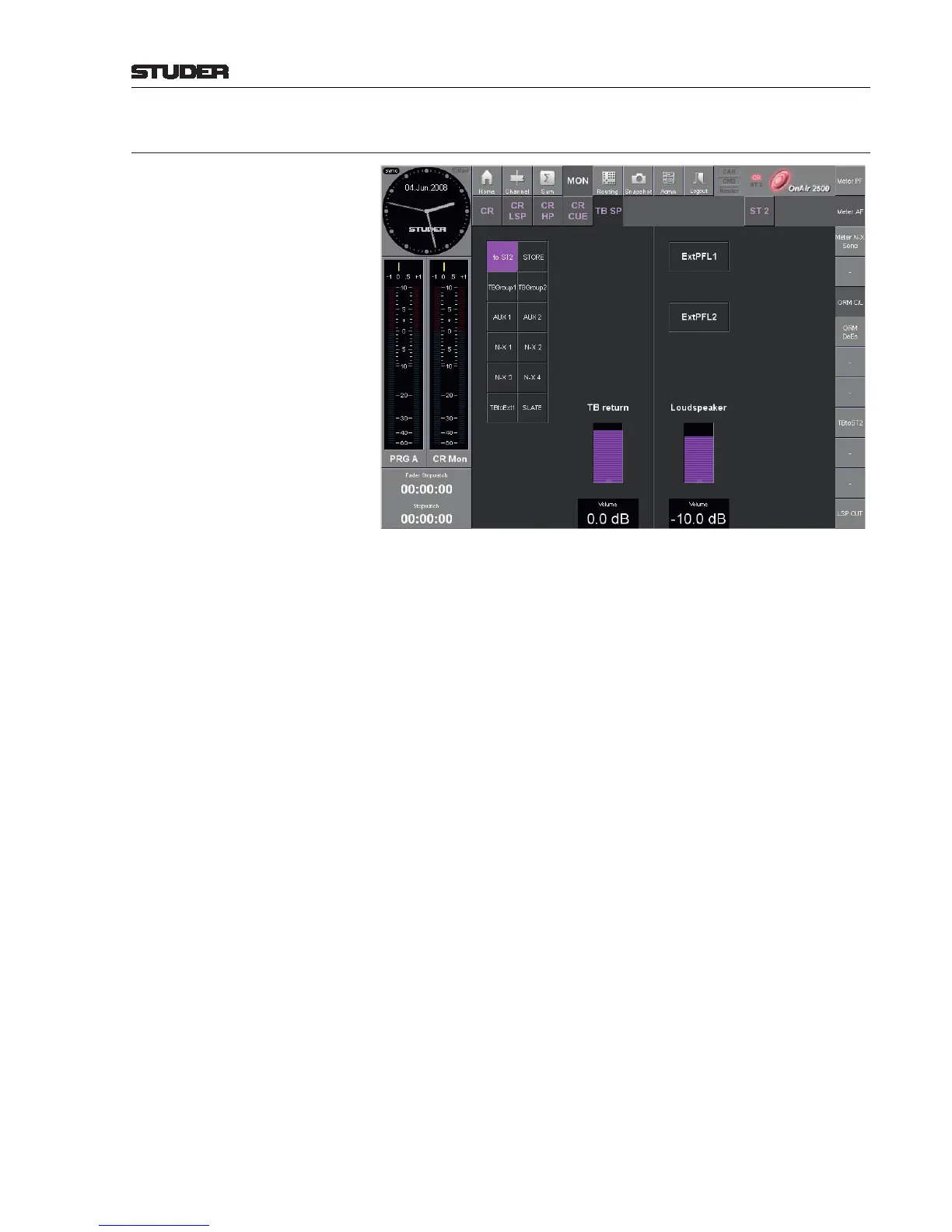

5.3.5.6 (Monitoring) TB SP Page
This page contains a part of the functionality found on the monitoring/TB
module and works in parallel with its controls. For details refer to chapter
5.5.3.
Talkback Destination Selector Buttons to select a talkback destination (or a group of destinations). For details
refer to chapter 5.5.3.
SLATE (If configured) Allows talkback to the two main buses (PRG A, Record).
In order to prevent talkback from going to these destinations unintentionally,
the SLATE button must be touched before touching one of the PRG A or
Record master talkback buttons.
The SLATE function on the central screen is independent from the one on
the desk.
TB return Control for the talkback return volume.
Loudspeaker Volume control for the PFL speaker integrated in the console.
EXT PFL 1 / 2 External PFL inputs that are mainly used for pre-listening of a CAB system.
They are controlled from the monitoring panel, by the GP inputs, or by the
Monitora interface.
Note: An additional talkback mode may be configured that routes the talkback signal
to either the left or right headphones channel; in this case, the normal moni-
tor signal is routed in mono to the other headphones channel during talkback
without being dimmed.
