Guest Headphones The guest headphones are always fed with the same signal as the CR monitor
speakers, but without cut or dim functions. The guest headphones connector
is located on the rear panel of the console.
Internal Speaker The PFL and talkback return signals are mixed and fed in mono to the built-in
speaker.
If the PFL signal is listened on the CR monitor speakers, it is automatically
cut on the internal Speaker.
If the CR red light is active, the internal speaker is automatically muted.
SP Level setting for the internal speaker.
TB RET If pressed, the corresponding contribution level to the internal speaker is indi-
cated on the LED ring around the SP knob and can be adjusted individually.
The mixing ratio of the PFL and talkback return signals also influences the
TB return on the DJ headphones.
5.5.2 Studio Monitoring

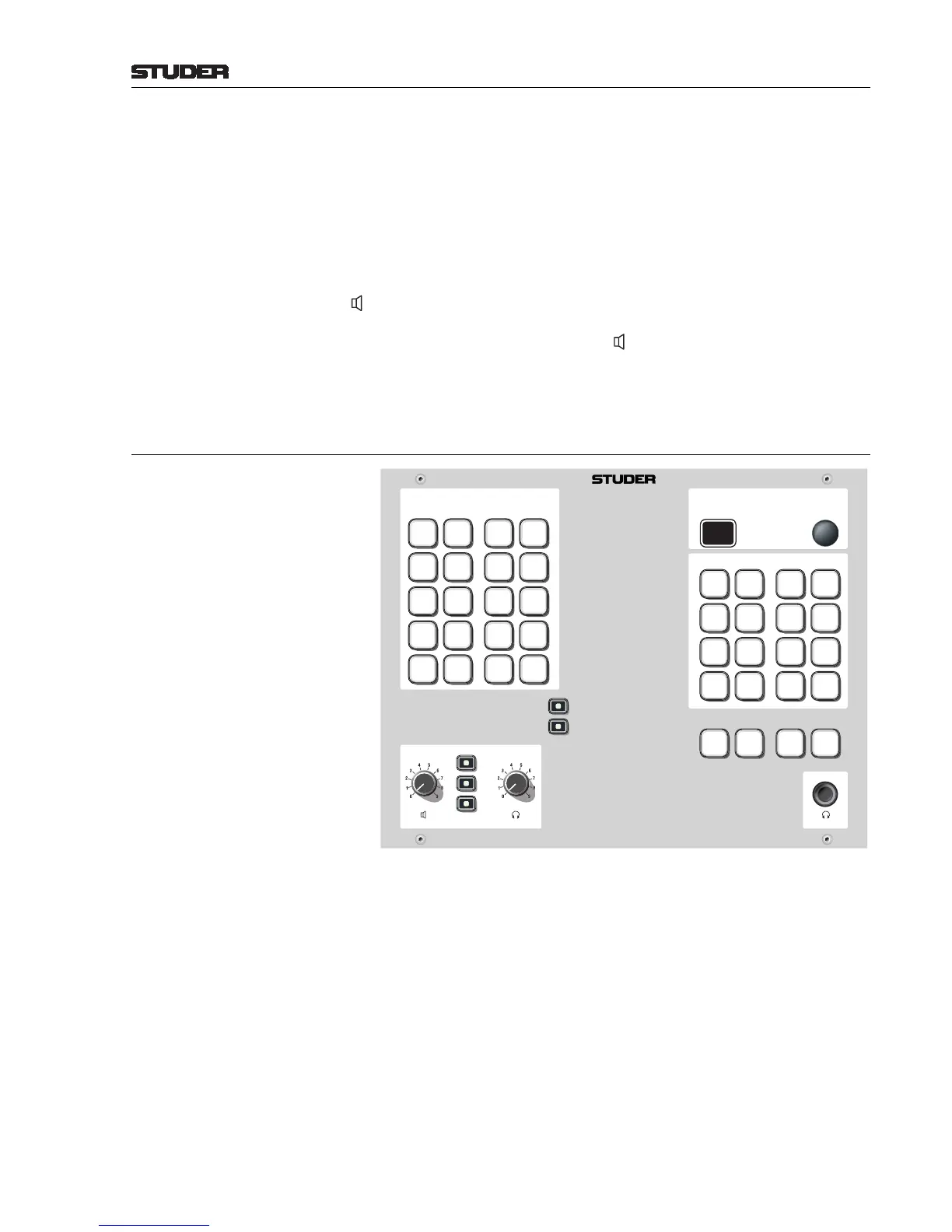

Studio Monitoring/TB Module:
The monitoring/TB module for the studio offers an array of configurable
buttons for monitoring source selection (MONITOR) and talkback destinations
(TALKBACK), red light indication, studio loudspeaker and headphone control
and connection. Talkback between any locations is possible, as well as to
external lines, the master, AUX, and N–X outputs.
Studio Source Selection Selection of the studio monitoring source can be done from the central screen
or from the studio TB box (MONITOR).
Studio Muting The studio monitoring speakers are automatically muted if at least one of the
microphones in the studio (Configuration: Input Location = Studio2) is on.
The studio headphones are not muted in such a case.
Talkback During talkback from studio to CR and vice versa, the studio speaker level is
automatically dimmed. The talkback signal from CR to studio is not dimmed
and has the normal listening level on both the studio speakers and headphones.
For more details please refer to chapters 5.3.5.2 and 5.3.5.3.
