6.5.26.2 GPO

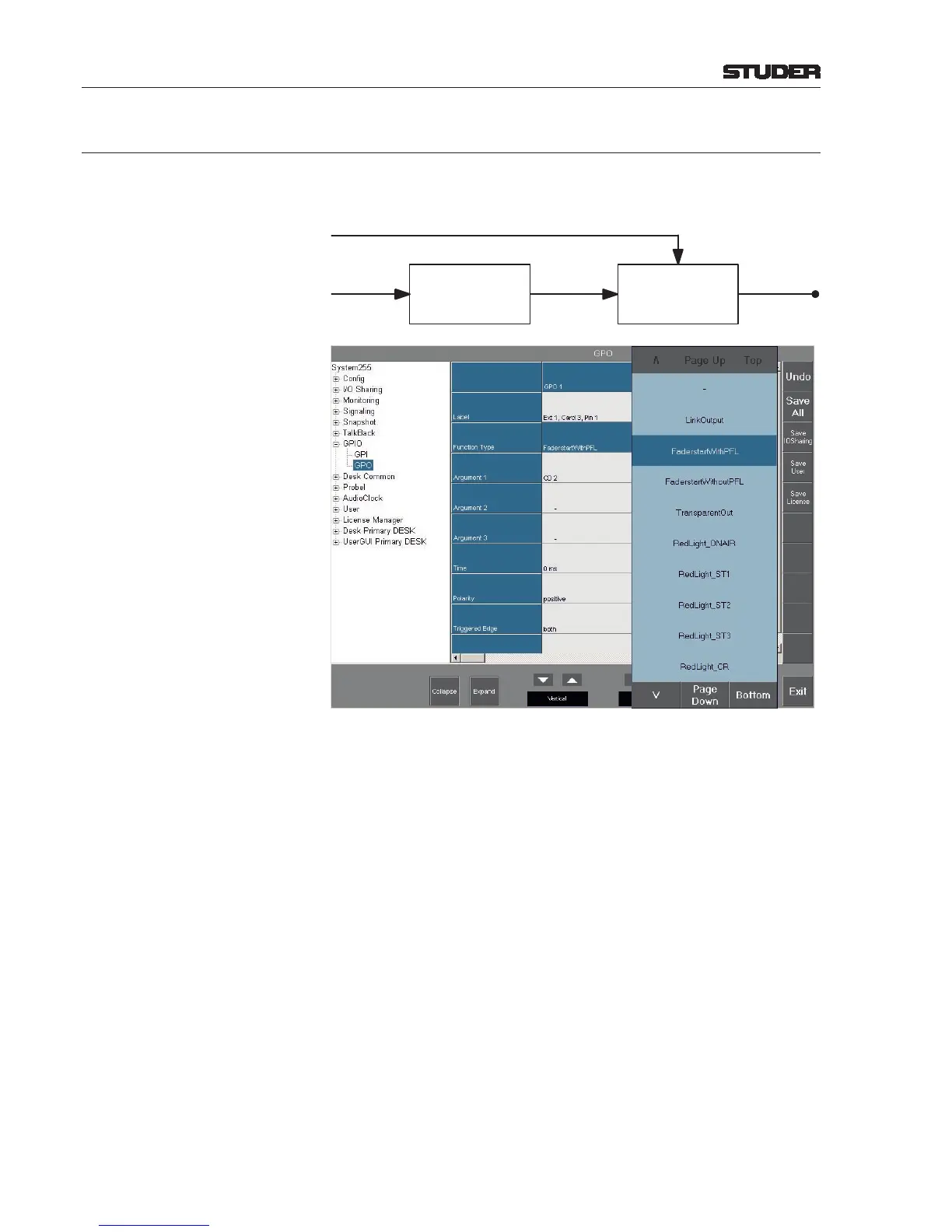

The GP output logic generates an output signal depending on the GP output
function, its parameters, and the argument(s).
Label The label of the corresponding frame/GPIO card/output pin is displayed here
for reference.
Function Type When touching this button, a menu appears where all available functions can
be selected from, as shown above. For a function and parameter description
see the table below.
Argument 1...3 Depending on the selected function, one or more parameters contribute to
the processing of the output control signal. These can be selected here. For a
function and parameter description see the table below.
Time Denes the duration of the pulse at the output pin. Time is only relevant if
Triggered Edge is falling or rising.
Possible values are 0 ms or 20 ms...1 s.
Polarity Denes the polarity of the output pin signal: Active high is positive, active
low is negative polarity.
Triggered Edge Denes which edge of the input signal causes the Level to change: falling,
rising, or both.
Activate Used to activate/deactivate an output pin. The Level used as input to the GP
output function only changes if Activate is On.
