Analog
Line In
Screen Mount Screen Studio
Mon/TB
Box
Earth
Term-
inal
24 V
DC
Inlet
Mains
Inlet/
Switch
AES/EBU I/O
CR Monitor
Speakers Out
USB Socket
Analog
Line Out
Microphone
In
LAN RS422
RS232
MADI
Main
DC
Out
MADI
Aux
WCLK
In
AES/EBU
Sync In
GP In
GP Out
Phones Firewire Optical
ADAT I/O

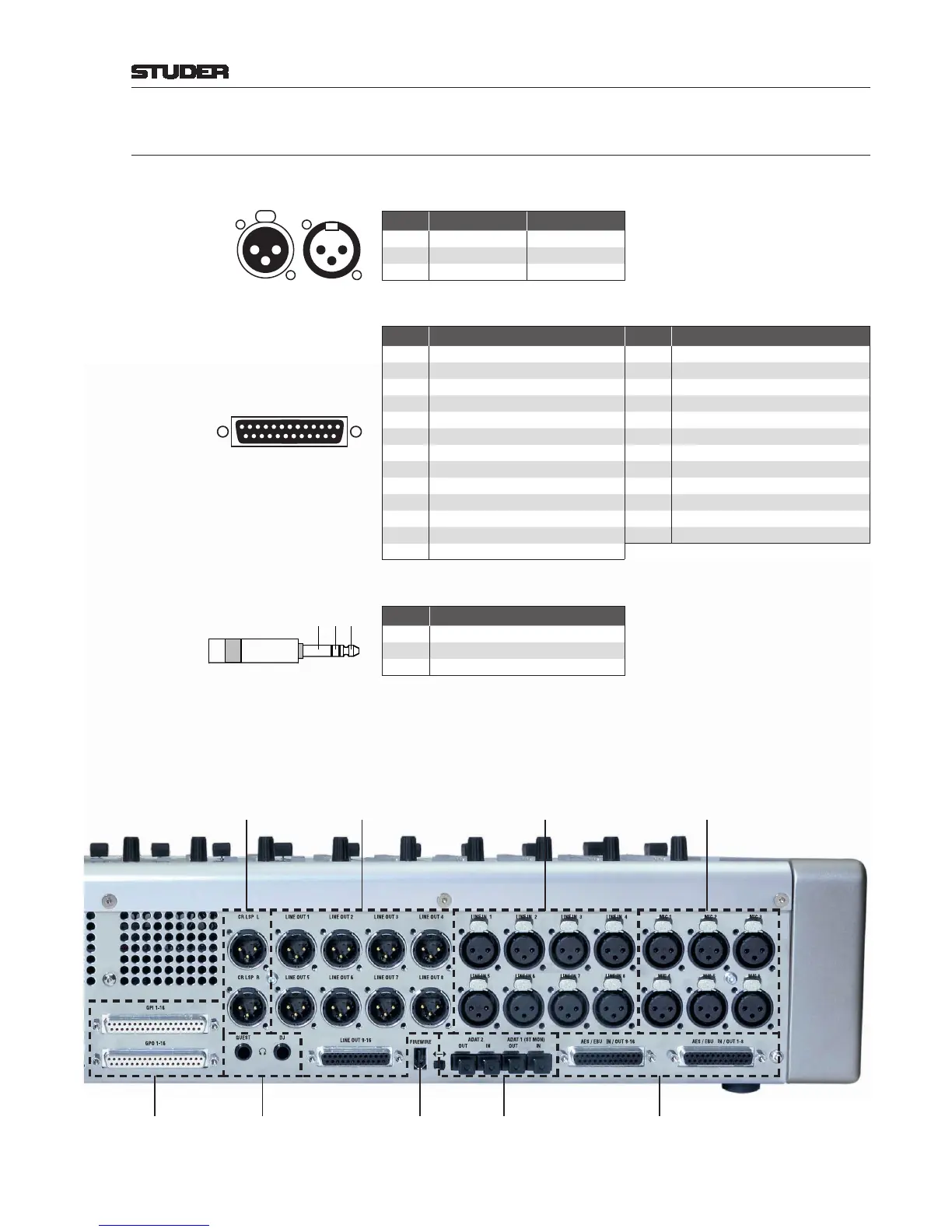

4.2 Connectors, Pin Assignments
MIC IN / LINE IN (XLR 3f)
LINE OUT 1-8 / CR LSP L/R (XLR 3m)
Pin Signal (Input) Signal (Output)
1 Screen Screen
2 In + Out +
3 In – Out –
LINE OUT 9-16 (25-pin D-type, female)
Pin Signal (9-16) Pin Signal (9-16)
1 CH 16 out + 14 CH 16 out –
2 CH 16 out GND 15 CH 15 out +
3 CH 15 out – 16 CH 15 out GND
4 CH 14 out + 17 CH 14 out –
5 CH 14 out GND 18 CH 13 out +
6 CH 13 out – 19 CH 13 out GND
7 CH 12 out + 20 CH 12 out –
8 CH 12 out GND 21 CH 11 out +
9 CH 11 out – 22 CH 11 out GND
10 CH 10 out + 23 CH 10 out –
11
CH 10 out GND 24 CH 9 out +
12 CH 9 out – 25 CH 9 out GND
13 n.c.
GUEST / DJ (Headphones, 6.3 mm TRS socket)
Pin Signal
Tip Left
Ring Right
Sleeve Screen
1
3
2
2
3
1
TipRingSleeve
1
Solder/Crimp View
(or Socket View)
13
25 14
