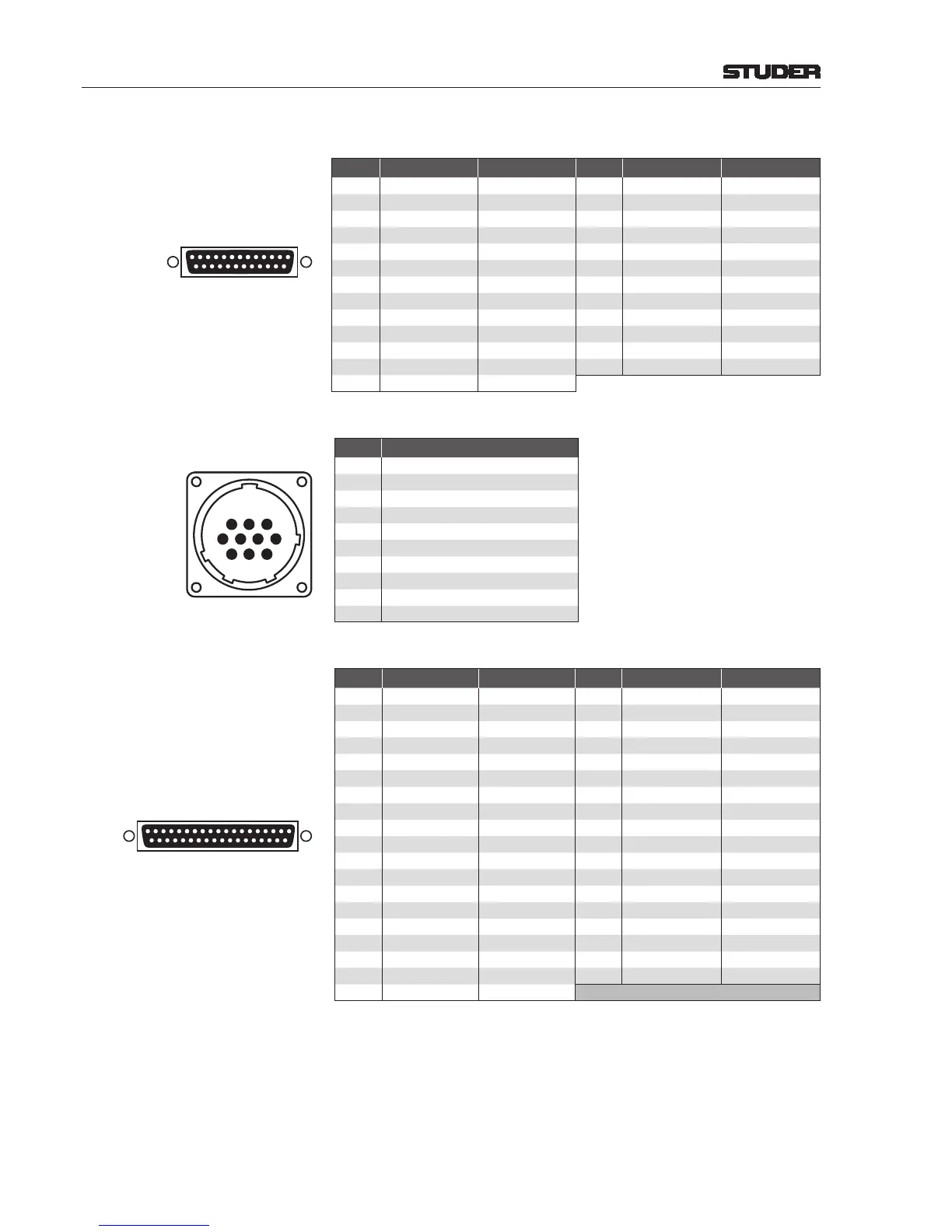

AES / EBU IN / OUT (25-pin D-type, female)
Pin Signal (1-8) Signal (9-16) Pin Signal (1-8) Signal (9-16)
1 CH 7/8 out + CH 15/16 out + 14 CH 7/8 out – CH 15/16 out –
2 CH 7/8 out scrn CH 15/16 out scrn 15 CH 5/6 out + CH 13/14 out +
3 CH 5/6 out – CH 13/14 out – 16 CH 5/6 out scrn CH 13/14 out scrn
4 CH 3/4 out + CH 11/12 out + 17 CH 3/4 out – CH 11/12 out –
5 CH 3/4 out scrn CH 11/12 out scrn 18 CH 1/2 out + CH 9/10 out +
6 CH 1/2 out – CH 9/10 out – 19 CH 1/2 out scrn CH 9/10 out scrn
7 CH 7/8 in + CH 15/16 in + 20 CH 7/8 in – CH 15/16 in –
8 CH 7/8 in scrn CH 15/16 in scrn 21 CH 5/6 in + CH 13/14 in +
9 CH 5/6 in – CH 13/14 in – 22 CH 5/6 in scrn CH 13/14 in scrn
10 CH 3/4 in + CH 11/12 in + 23 CH 3/4 in – CH 11/12 in –
11
CH 3/4 in scrn CH 11/12 in scrn 24 CH 1/2 in + CH 9/10 in +
12 CH 1/2 in – CH 9/10 in – 25 CH 1/2 in scrn CH 9/10 in scrn
13 n.c. n.c.
24V DC IN (10-pin Hirose, male)
Pin Signal
1 +22...28 V
DC
2 +22...28 V
DC
3 n.c. (no internal connection)
4 Power alarm output
5 n.c. (no internal connection)
6 n.c. (no internal connection)
7 n.c. (no internal connection)
8 GND
9 GND
10 Power alarm enable
GPI / GPO 1-16 (37-pin D-type, female; 2 plugs supplied)
Pin GPI 1-16 GPO 1-16 Pin GPI 1-16 GPO 1-16
1 GPI 1a GPO 1a 20 GPI 1b GPO 1b
2 GPI 2a GPO 2a 21 GPI 2b GPO 2b
3 GPI 3a GPO 3a 22 GPI 3b GPO 3b
4 GPI 4a GPO 4a 23 GPI 4b GPO 4b
5 GPI 5a GPO 5a 24 GPI 5b GPO 5b
6 GPI 6a GPO 6a 25 GPI 6b GPO 6b
7 GPI 7a GPO 7a 26 GPI 7b GPO 7b
8 GPI 8a GPO 8a 27 GPI 8b GPO 8b
9 GPI 9a GPO 9a 28 GPI 9b GPO 9b
10 GPI 10a GPO 10a 29 GPI 10b GPO 10b
11 GPI 11a GPO 11a
30 GPI 11b GPO 11b
12 GPI 12a GPO 12a 31 GPI 12b GPO 12b
13 GPI 13a GPO 13a 32 GPI 13b GPO 13b
14 GPI 14a GPO 14a 33 GPI 14b GPO 14b
15 GPI 15a GPO 15a 34 GPI 15b GPO 15b
16 GPI 16a GPO 16a 35 GPI 16b GPO 16b
17 GND (0 V) GND (0 V) 36 V
CC
(+5 V) * V
CC
(+5 V) *
18 GND (0 V) GND (0 V) 37 V
CC
(+5 V) * V
CC
(+5 V) *
19 GND (0 V) GND (0 V) * 600 mA max. total
