6.5.18 Partial Output Routing
Up to 1024 partial output routing presets may be precongured in order to be
activated either from the Snap - Route page, or by general purpose inputs
(GPI) and/or desk keys. These partial output routings can be congured on
this page.
Label Enter the partial output routing snapshot’s label here - as described in chapter
6.5.1.

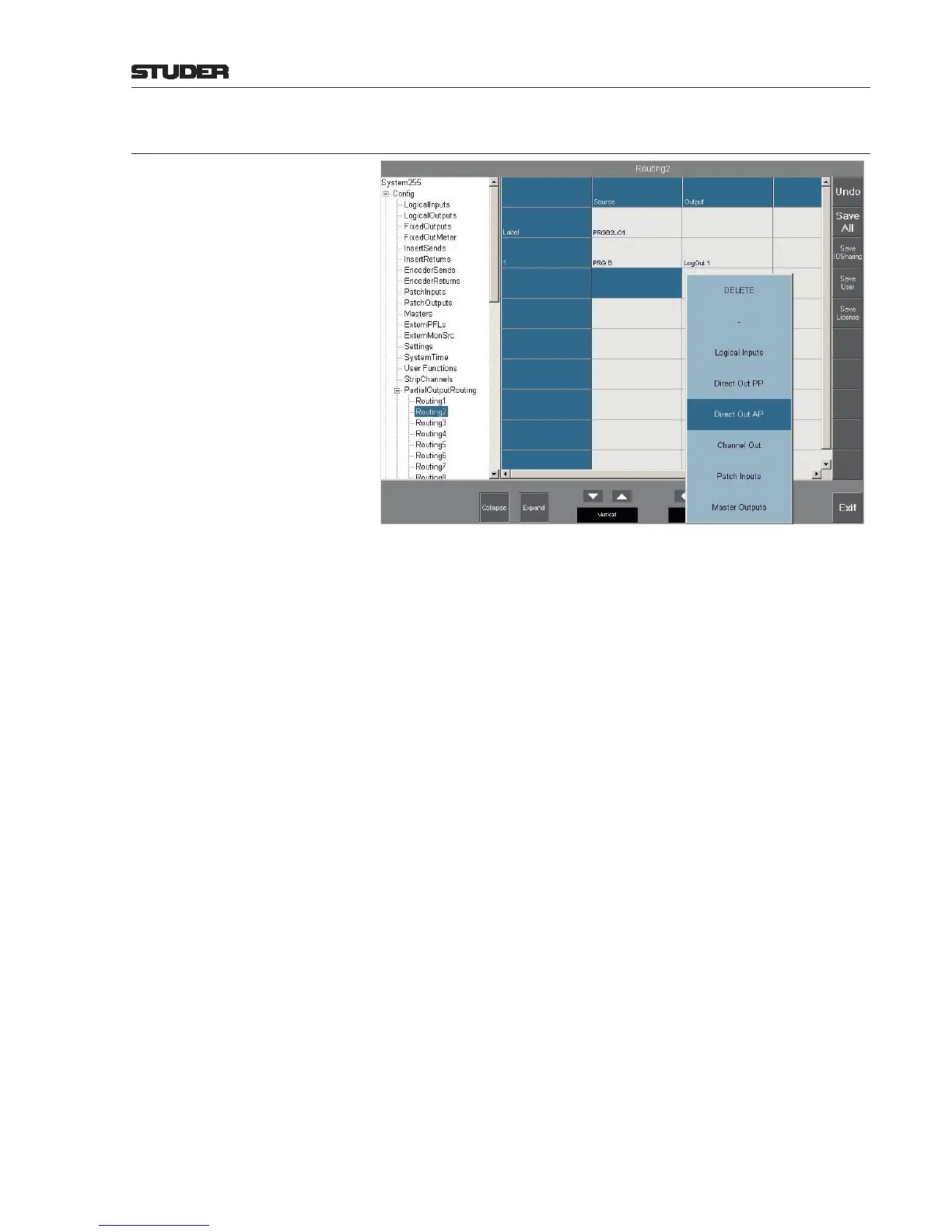

Source Field When touching an empty Source eld, a list pops up for selecting from sev-
eral source groups rst (Logical Inputs, Direct Out PP (pre-processing),
Direct Out AP (after processing), Channel Out, Patch Inputs, Master
Outputs). When touching one of these elds, a second list appears offering
the available sources from the selected group.
Output Field After selecting a source, touch an empty Output eld. Again a list pops up
where the desired output group (Logical Outputs, Patch Outputs) can
be selected from. When touching one of these elds, a second list appears
offering the available outputs from the selected group.
Delete In order to delete a routing preconguration, touch either the source or the
output eld and select DELETE from the pop-up list.
