6.5.21.2 Configuration
Conguration details of the I/O sharing option see chapter 6.5.20.

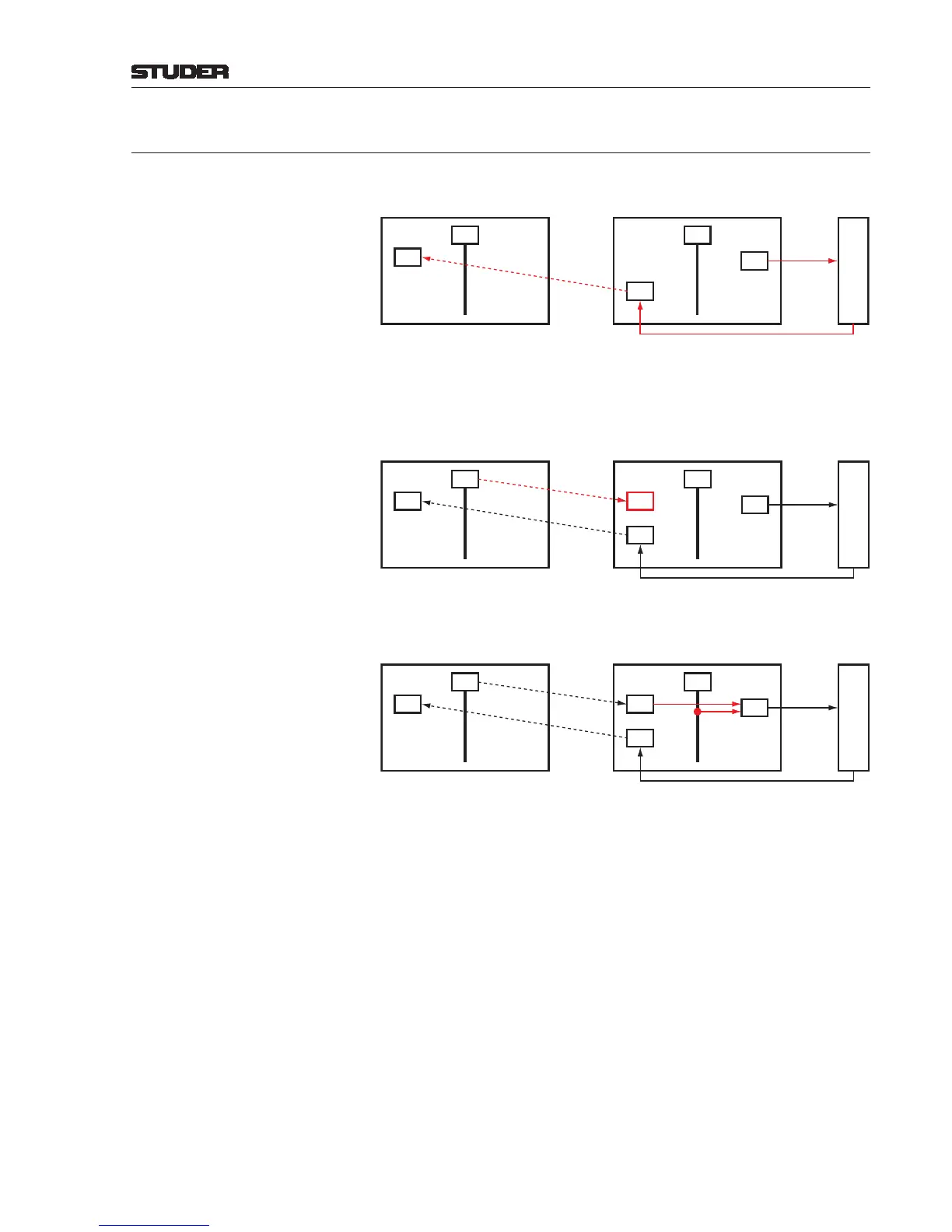

Step 1:
Codec
N–X
NetLI
N–X
LI
PO
System B (Net Consumer) System A (Net Producer)
The codec’s input must be mapped to a patch output (PO). The codec’s output
must be mapped to a logical input (LI) that is an N–X bus owner.
In case of I/O sharing, i.e. when another system shares the codec, a net logical
input is required that is an N–X bus owner as well.
Step 2:
Codec
N–X
NetLI
N–X
LI
PO
NetPI
System B (Net Consumer) System A (Net Producer)
On the producer system A a net patch input (NetPI) must be created, consum-
ing the N–X bus associated with the net logical input (NetLI) of system B.
Step 3:
Codec
N–X
NetLI
N–X
LI
PO
NetPI
System B (Net Consumer) System A (Net Producer)
Finally, for both the logical (LI) and the net logical (NetLI) inputs, the source
for the patch output (PO) must be specied. This is done in the conguration
tool on the Cong - LogicalInputs page. The related parameters are:
Codec Return Output Species the patch output (PO) to which the codec’s input is connected.
• In case of a logical input (LI, net source is 0), the conguration tool pro-
vides a list of all logical and patch outputs of system A.
• In case of a net logical input (NetLI, net source is different from 0), the
conguration tool provides a list of all logical and patch outputs of that
net source.
Codec Return Source Species the source that is connected to the patch output (PO) when the (net)
logical input is assigned to a fader.
• In case of a logical input (LI, net source is 0), the conguration tool pro-
vides a list of all N–X buses of system A.
• In case of a net logical input (NetLI, net source is different from 0), the
conguration tool provides a list of all net patch inputs on system A ???
of that net source that consume an N–X send from system B ??? .
