5.3.4.2 (Sum) AUX Page

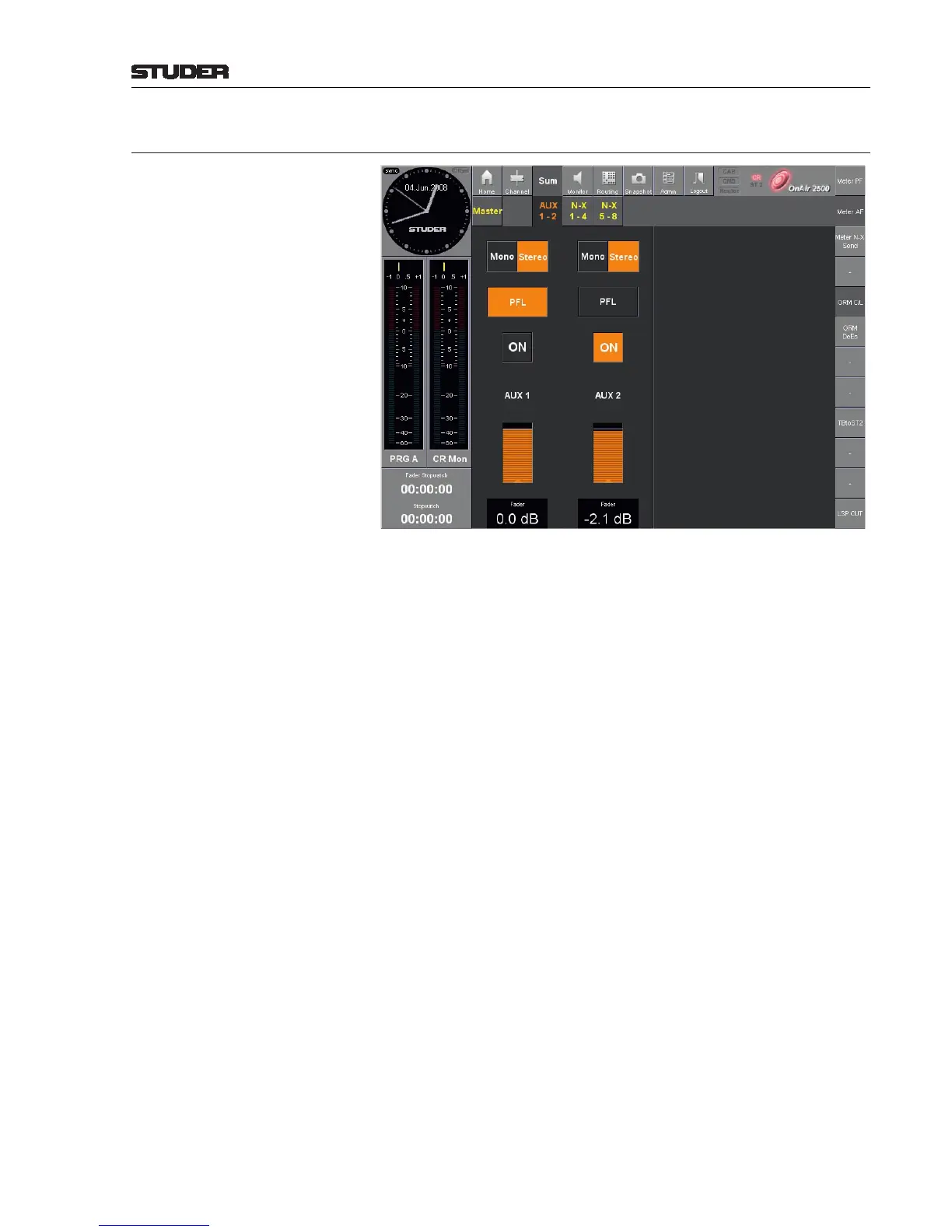

This page allows parameter adjustments for the two AUX master buses.
Mono / Stereo The audio format (mono or stereo) of each AUX master bus can be set to mono
or stereo when touching these buttons; the current selection is highlighted.
PFL PFL feeds the pre-fader audio signal to the PFL bus. This button enables/
disables the PFL (pre-fader listening) function on the corresponding AUX
master (highlighted if enabled). The “PFL Cut on Channel Active” (Broadcast
PFL Mode) has no effect on the audio signal.
ON Button to toggle the AUX send sum on/off, highlighted if on.
Label The label displayed here (e.g. AUX 1) may be renamed in the configuration
tool, if required (see chapter 6.5.11).
(AUX) Fader The fader value is indicated by the orange-colored bar graph. The exact value
is displayed in dB and can be set with the rotary encoder below the field.
Notes: Any AUX output can be assigned to any physical fader on the desk.
The fader value adjusted with the rotary encoder (or the mouse) and the one
of the physical fader in the corresponding fader strip, if assigned, are work-
ing in parallel, it is a kind of “the last wins” circuit. This means that moving
the physical fader also effects the bar graph on the screen; the other way
round, however, a change with the rotary encoder or the mouse sets the fader
in take-over mode, because the new (electrical) fader value and the fader’s
(physical) position will then be different.
If optional motor fader modules are installed, the fader position of course
follows the rotary setting.
