Studer OnAir 2500 User Manual

OnAir 2500/OnAir 3000 Digital Mixing Consoles
6-28 Conguration
Date printed: 22.07.08
SW V3.0
OnAir 2500/OnAir 3000 Digital Mixing Consoles
Conguration 6-29
Date printed: 22.07.08
SW V3.0

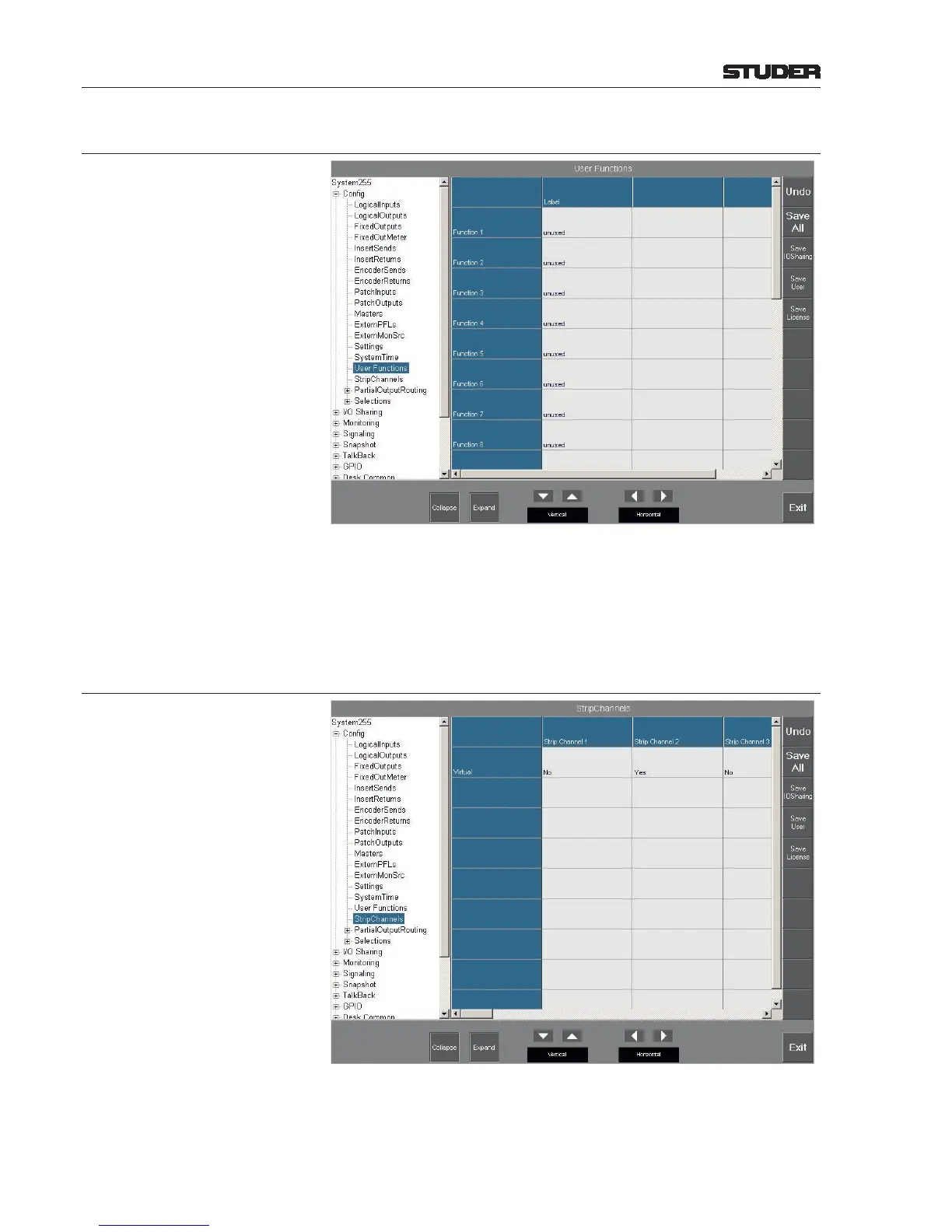

6.5.16 User Functions
User Functions can be assigned as arguments for the “UserLED” GPI function
and for the “UserKey” GPO function.
This page is used to enter labels for up to 20 user functions. When touching
one of the label elds, a keyboard pops up; enter the desired label according
to the procedure described in chapter 6.5.1.
6.5.17 Strip Channels
This page is used to congure virtual channels, if e.g. master faders are desired
on the operating surface. No inputs can be routed then to the channel.
Virtual channels do not consume any DSP power; in cases where DSP power
is limited, virtual channels may be dened for outputs.
