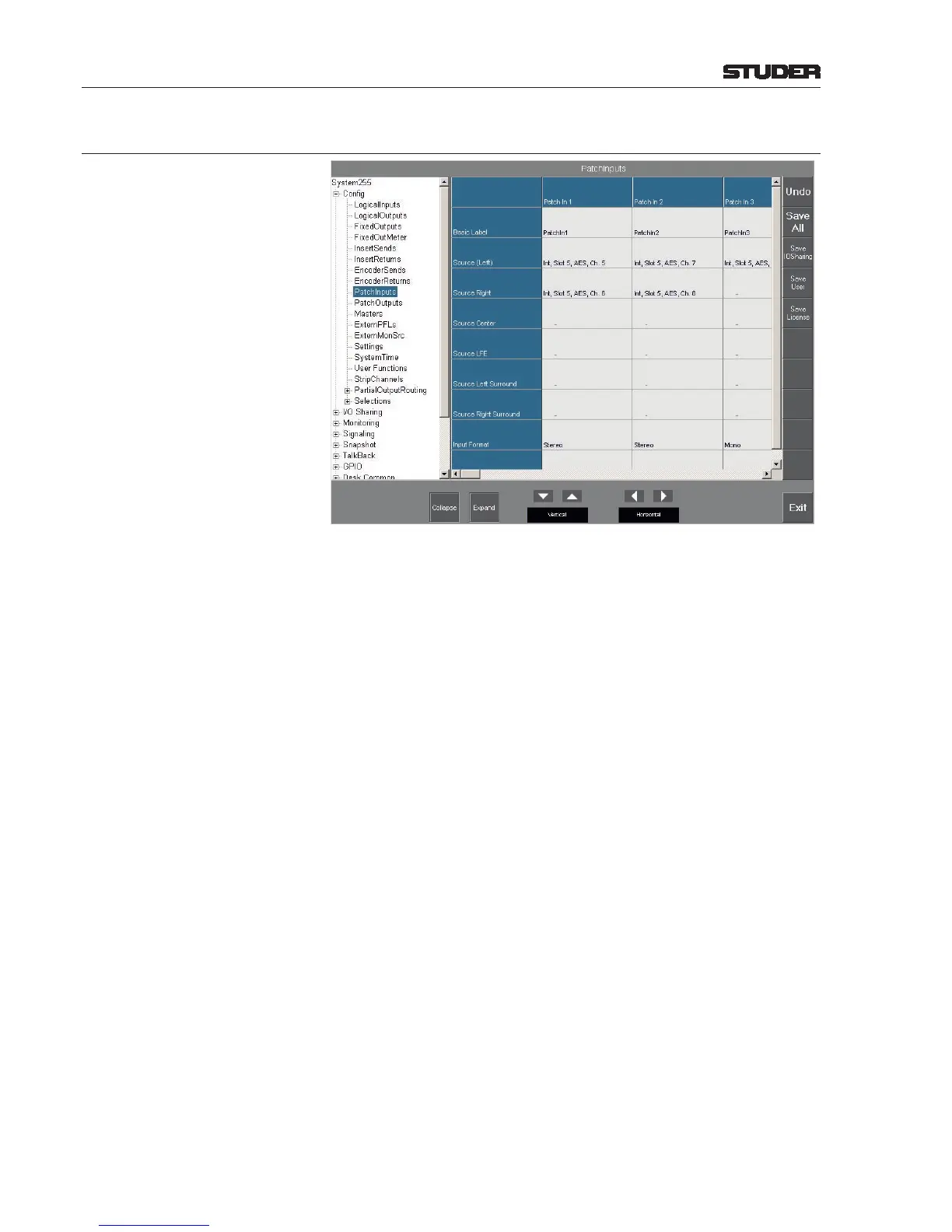

6.5.9 Patch Inputs (supported by OnAir 3000 only)
Basic Label This is the string displayed in the in the output routing page. It may have up
to eight characters. It can be dened as described in chapter 6.5.1.
Source (Left), Source Right... These elds dene the physical audio inputs that are used to establish the
channels for the logical input. For details refer to chapter 6.5.1.
Input Format Denes the audio format of the logical input. Selections: Stereo, Mono, or
5.1. The format selected here will be automatically assigned to the console
channel to which this logical input is routed.
External Router Destination With SW V2.1 and later, this parameter is used to assign a destination ID of
an external router output to the patch input; this is used for importing and
displaying labels from the external router control system as well as for con-
trolling the router.
Selection: - (none) or 1...1023. The default assignment is 1:1, i.e. logical input
1 corresponds to destination ID 1.
In addition, a Facility ID must be entered in the UserGUI - Settings con-
guration page (refer to chapter 6.5.33.1), together with the corresponding
settings in the ProBel.xml and probel_contr_ext.ini les.
