naming the selected entry with the keyboard appearing then. When finished,
confirm with Enter.
Delete The Delete button is displayed only if an entry has been selected in the Local
snapshot list, and if deleting is available for this entry. It allows deleting the
selected entry after confirmation.
It is also possible to delete only a part (or parts) of a snapshot when selecting
one (or more) of the Audio, Rout In/Out, Assign buttons before touching
the Delete button. A confirmation dialog appears then as well.
Note: Global snapshots may be written, renamed, or deleted by the system adminis-
trator only.
Set Channel Filter ON/OFF The channel filter allows selecting channels to which the snapshot is loaded;
if ON, the USR 1 keys on the desk start flashing. Select the desired channel
(or channels) with its USR 1 key (that will be continuously illuminated then).
When touching >>, only the selected channel(s) will be overwritten with the
snapshot data of the input(s) with the matching alias label.
The channel filter has no influence on saving a snapshot; always all parameters
of all channels are saved.
Set Location Filter ON/OFF In certain cases, e.g. when operating in split desk mode, recalling a snapshot
in the control room must not affect the logical inputs located on a strip chan-
nel in the studios. It is also possible to load a snapshot individually on a split
desk or on one of the editor boxes with the SnapshotX desk key function. The
location filter button only appears when operating in split desk mode.

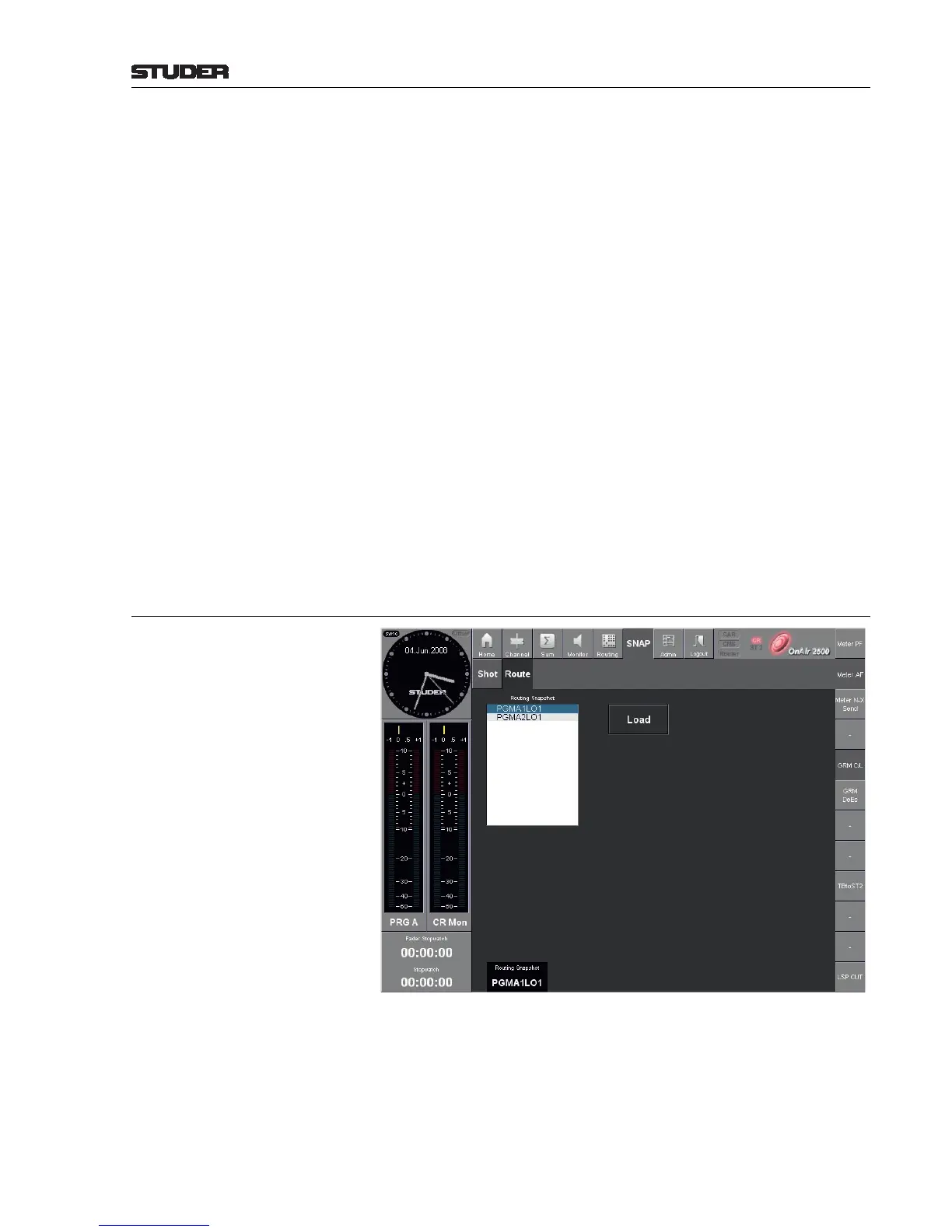

5.3.7.2 (SNAP) Route Page (“Partial Output Routing”)
On this page the output routing may be partially changed. A recalled snapshot
only changes the routing nodes specified in the snapshot. This comes in very
handy if the recent routing of the console shall be kept, but the studio (PRG
Out) shall contribute to different on-air line. The snapshots are configured in
the configuration tool (Config - PartialOutputRouting).
Routing Snapshot The rotary encoder below the field is used to select the desired routing snap-
shot from the list.
Load Loads the selected snapshot.
To Next Page
