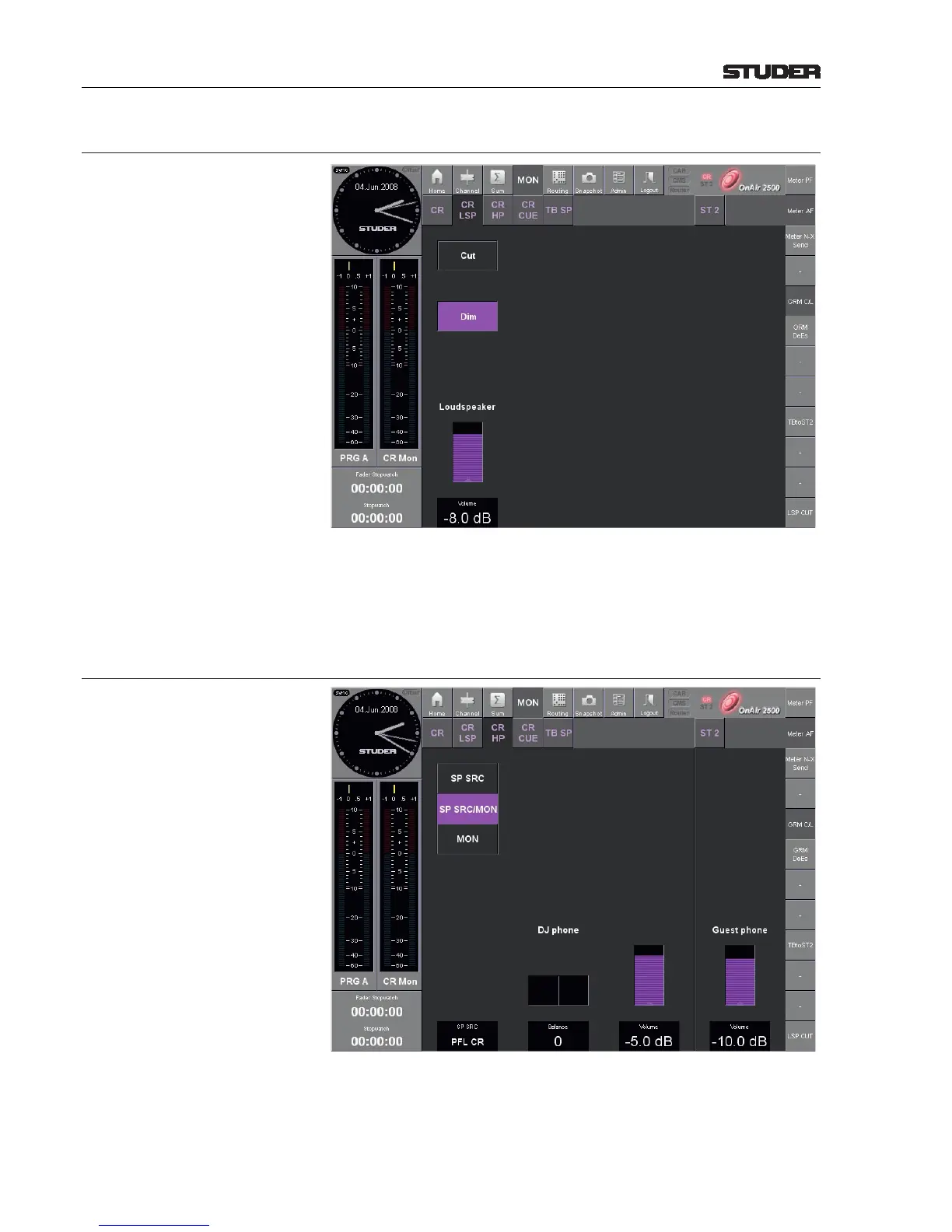

5.3.5.2 (Monitoring) CR LSP (Loudspeakers) Page
Cut / Dim These buttons allow muting/dimming the speakers; highlighted if active. The
amount of Dim attenuation can be configured (see chapter 6.5.22.1).
(Loudspeaker) Volume The volume of the monitoring system is indicated with the bar graph. The
exact value is displayed in dB and set with the adjacent rotary encoder.
5.3.5.3 (Monitoring) CR HP (Headphones) Page
DJ phone In normal mode, MON is selected, and the CR headphones are then used for
monitoring the source selected on the CR page (see chapter 5.3.5.1). With
the add function, a second source can be temporarily selected which is then
mixed to the normal monitoring source.
