Studer OnAir 2500 User Manual

OnAir 2500/OnAir 3000 Digital Mixing Consoles
6-36 Conguration
Date printed: 22.07.08
SW V3.0
OnAir 2500/OnAir 3000 Digital Mixing Consoles
Conguration 6-37
Date printed: 22.07.08
SW V3.0

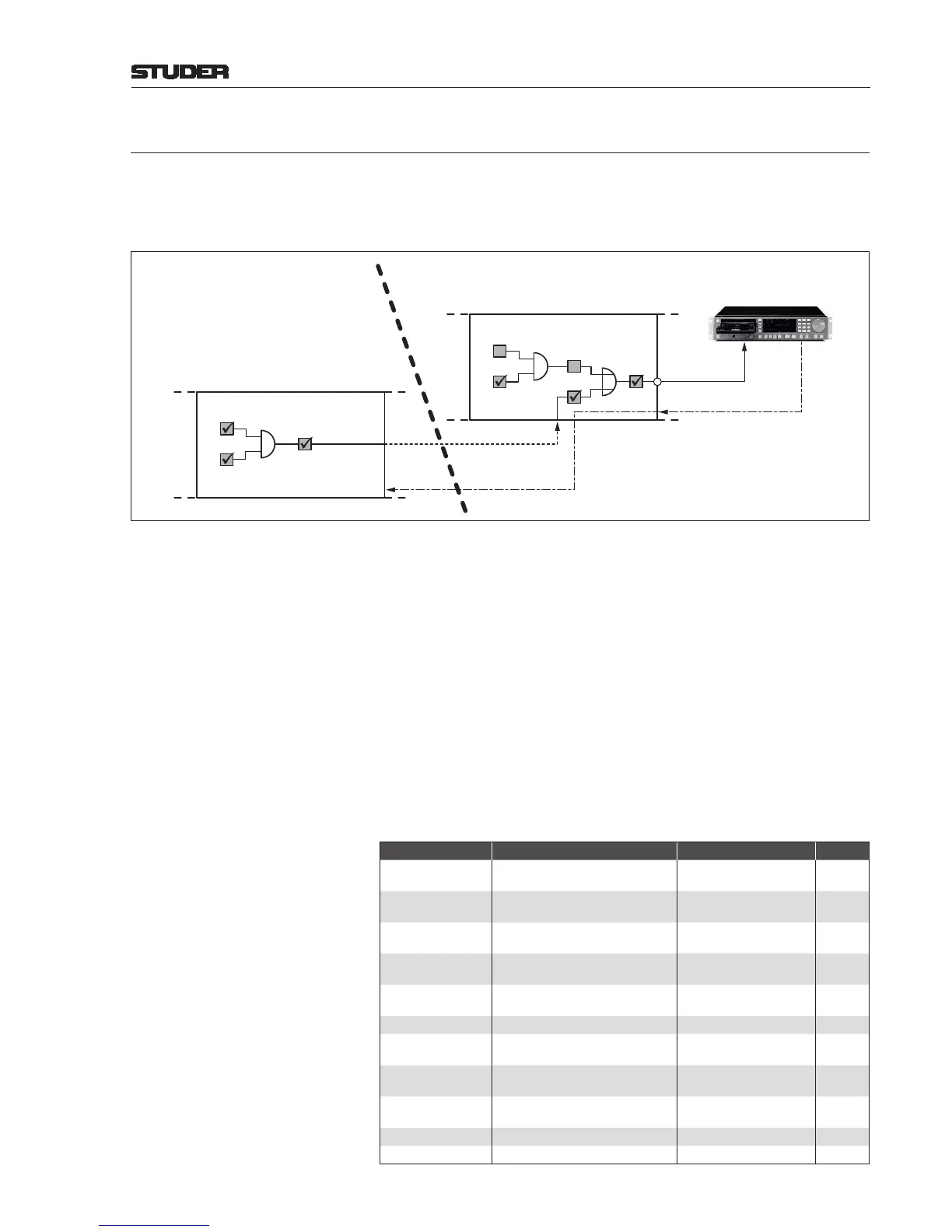

6.5.20.1 Distributed Control
Starting with SW V2.1, the distributed control feature has been introduced for
the Fader Start, On Master, Locate, and Ready control functions. This allows
using a GP output or input on a Net Producer system as a control output or
input for one or several Net Consumer system(s) without additional wiring.
Logical Input A1
AND
OR
Fader
Start
System A (Net Producer)
Distributed Control:
Fader Start (w'out PFL)
GPO
"Distributed Ctrl"
Fader Start
Command
Audio
Channel
ON
Fader
Open
Logical Input B5 (Net Producer: A1)
AND
System B (Net Consumer)
Channel
ON
Fader
Open
Fader
Start
Audio
In the example shown above, a playback source such as a CD player has its
fader start control input connected to one of the GPOs of Net Producer System
A, and its audio output is connected to Logical Input A1 of System A.
Net Consumer System B can access the same audio signal on its Logical
Input B5. If the corresponding channel on System B is on and this channel’s
fader is open, the fader start command is sent to Logical Input A1 of System
A, where it is OR-linked with System A’s internal fader start command. The
fader start command goes to the CD player, regardless whether it has been
generated by System A (to which the CD player is directly connected), by the
remote System B, or by any other remote system connected to the same I/O
sharing network and consuming the Logical Input A1 of System A.
Note: There exists a second fader start function “with PFL” – where in each channel
is an additional OR link; in this case, the fader start output is active if Fader
Start is active or if PFL is active, or both.
The same applies for all functions listed below:
Function Parameter Used by SW Ver.
Red Light CR
Signaling Source, Channel
ON Master of all logical inputs in CR
GPO: Red Light CR 2.0
Red Light St1
Signaling Source, Channel
ON Master of all log. inputs in St1
GPO: Red Light St1 2.0
Red Light St2
Signaling Source, Channel
ON Master of all log. inputs in St2
GPO: Red Light St2 2.0
Red Light St3
Signaling Source, Channel
ON Master of all log. inputs in St3
GPO: Red Light St3 2.0
Red Light Input
Signaling Source,
Channel ON Master
GPO: Red Light Input 2.0
Channel ON Master Channel ON Master GPO: ON Master 2.1
Fader Start
Channel on/off, Fader Open,
PFL on/off
GPO: Fader Start;
Fader Start with PFL
2.1
Mic Mute
Mic Mute
GPI: Mic Mute
GPO: Mic Mute Active
2.0
TB Mic Cut
Remote TB Source Active (linked to
Local TB Source Active)
Internal TB Mic Cut
function
2.0
Ready Ready GPI: Ready 2.1
Locate Locate GPO: Locate 2.1
