Notes: Processing parameters (such as EQ, lters, dynamics, panorama/balance,
timer start, etc.) of Net inputs are linked to the target system when dening
the logical connection; however, they may be individually modied once the
connection is established, and saved in snapshots, too.
Signaling parameters of Net inputs, such as red-light signals and dim/cut of
the monitoring speakers for microphone inputs, are automatically linked to
the parameters of the target system.

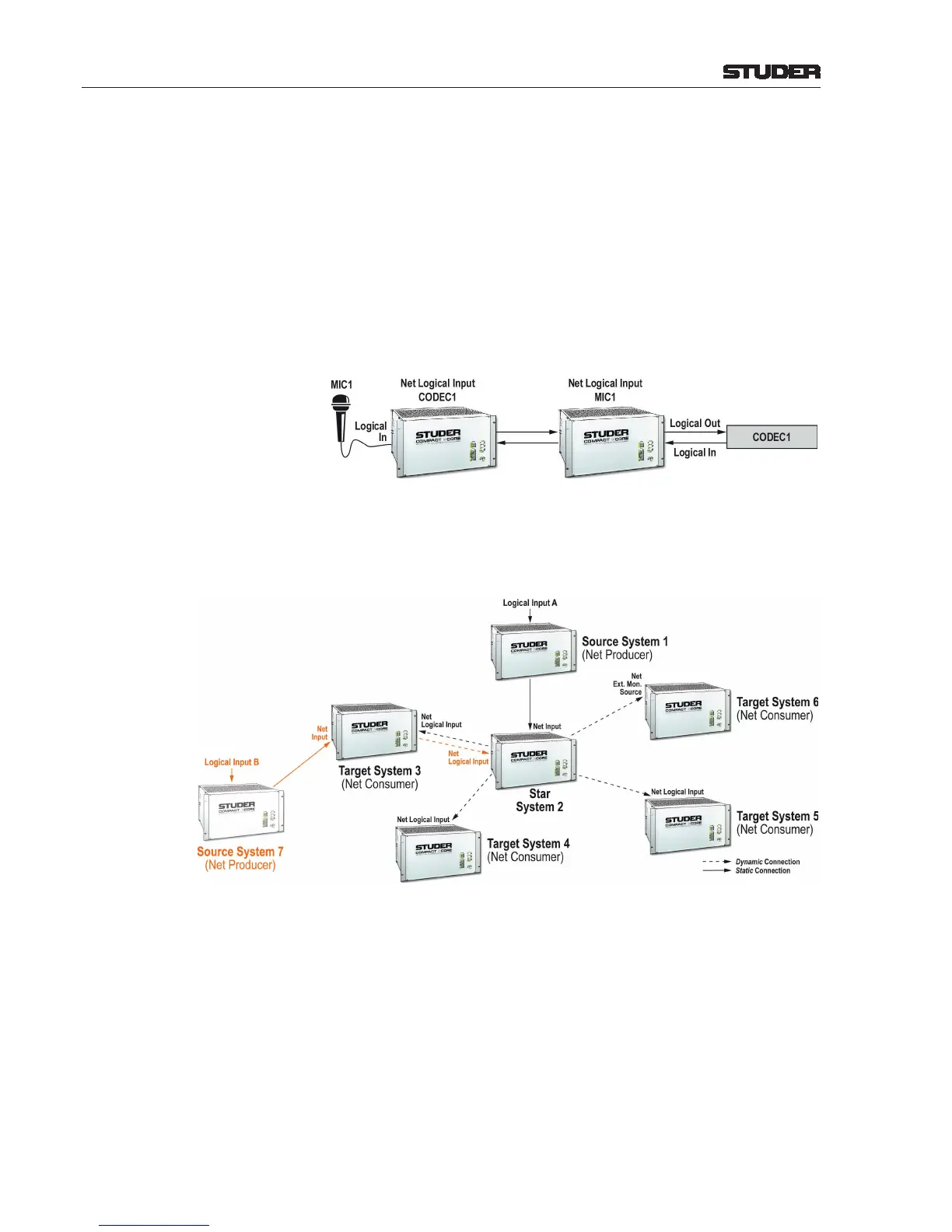

In the example below, a simple conguration shows two SCores in a point-to-
point arrangement. The left-hand system can access the output of CODEC1,
and the right-hand system also sees the MIC1 signal thanks to the physical
and logical connections between them.
In the following example, a star conguration of six SCores (Systems 1...6)
is shown, where systems 2...6 may access the logical input of source system
1 through dynamic logical connections, because it is fed to a net input of star
system 2 through a static logical connection.
Notes: In order to benet from the I/O sharing option, at least two consoles with
one SCore each are required. To activate this mode, a dongle chip or the “I/O
sharing option” license key must be inserted on every SCore Audio Clock
Card (1.943.330.xx) within the system. If these dongles are not installed, the
I/O sharing conguration is disabled.
I/O sharing conguration is always performed on the target system.
I/O sharing conguration data are saved on the target system only.
