FDR Start Trigger Point Please note that it is recommended to perform this calibration for all faders
of a fader module at a time.
First, move all faders not to be calibrated to their –20 dB position (this posi-
tion is ignored during calibration).
Center the fader knobs to be calibrated between the –∞ and the –60 markers.
This will be the point where the fader start output is triggered after calibra-
tion.
Touch the FDR Start button. To check, close the faders that just have been
calibrated; the corresponding fader bars on the screen should disappear.
If you intend to calibrate the second fader module, touch the Fader Cal menu
button again and select it.
5.3.8.3 (Admin) Firmware Page

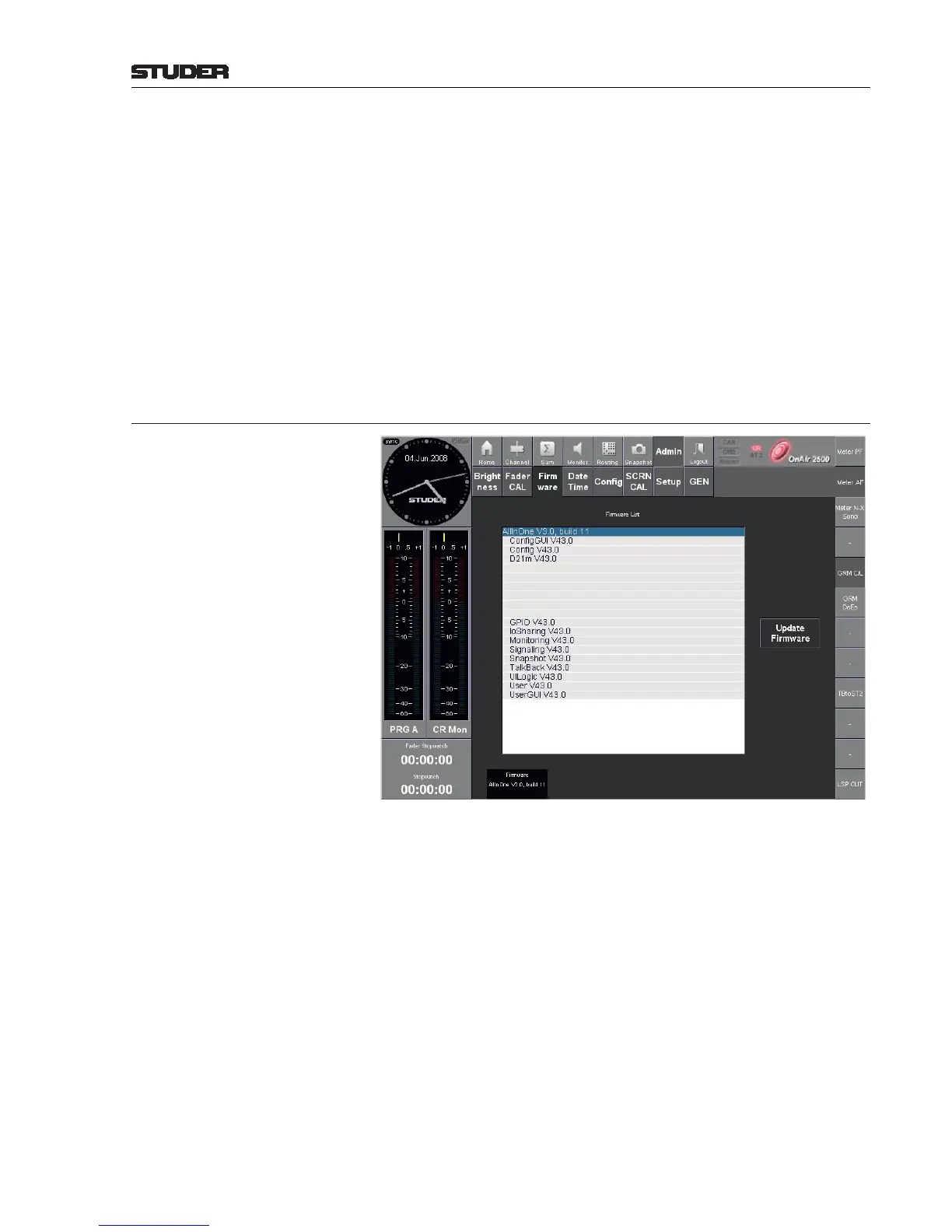

On this page, the version number of all software modules of the console is
displayed for reference. A module is selected using the rotary encoder just
below the Firmware field.
Note: A complete set of firmware for all console modules is saved in the console’s
memory. After having replaced a module by one that has been e.g. in the spare
parts stock for some time, its firmware might not be up-to-date with the ones of
the other console modules. Therefore it is recommended to check whether the
firmware versions correspond. If not, the current version may be downloaded
from the console to the module using the Update Firmware function.
Update Firmware Select a module as described above; if its firmware can be updated, the
Update Firmware button appears at the right of the list. The module’s
firmware will be updated when touching the Update Firmware button.
To Next Page
