OnAir 2500 Digital Mixing Console
Operation 5-21
Date printed: 18.07.08
SW V3.0
5.3.5 Monitoring Pages
Like all hardware elements, the console’s monitoring and talkback controls
are available in the GUI as well and work completely in parallel. This has
several advantages: A function can be controlled from a remote PC, e.g. for
service purposes, or the user can control the parameters in the studio from
his desk in the control room.
When touching MON, the last active monitoring page opens for parameter
adjustment.

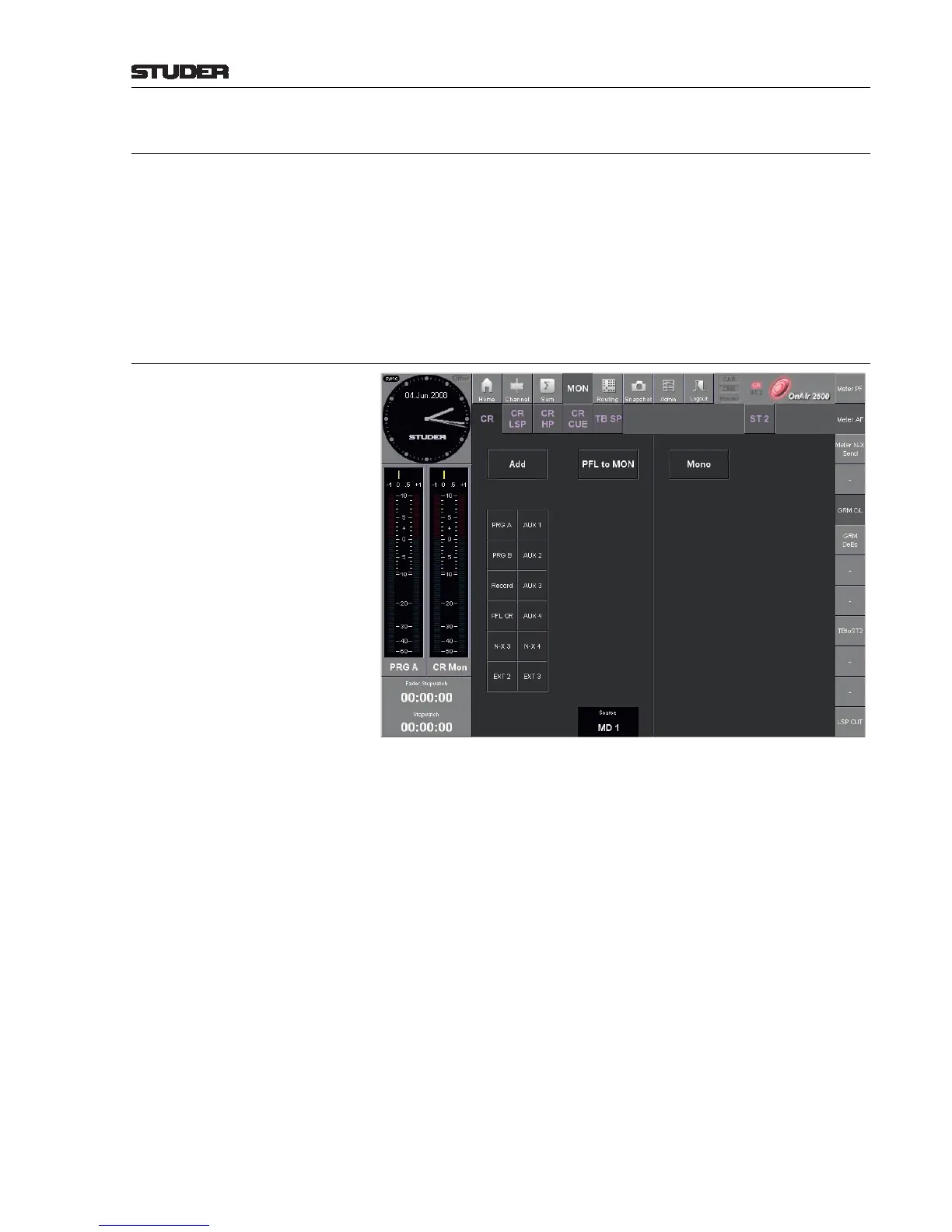

5.3.5.1 (Monitoring) CR (Control Room) Page
Source Selector The source selector buttons can be configured with the desired sources; the
currently selected source is highlighted.
Add This function is very handy for a station takeover. It allows to temporarily
select two sources for monitoring. The second source can be added by touch-
ing Add, and, while Add is highlighted, selecting a second source. Now both
sources are either mixed or sent separately to the two headphone channels
(configurable, see chapter 6.5.22.1); Add will be dark, but the source selector
keys of both active sources will be highlighted. Add is canceled upon selec-
tion of a next source.
PFL to MON Switches the PFL signal to the CR monitor loudspeakers.
Mono When active, both the left and right monitor speakers are fed with a mono
mix of the selected source.
